Main Power Supply & Ground Circuit Check

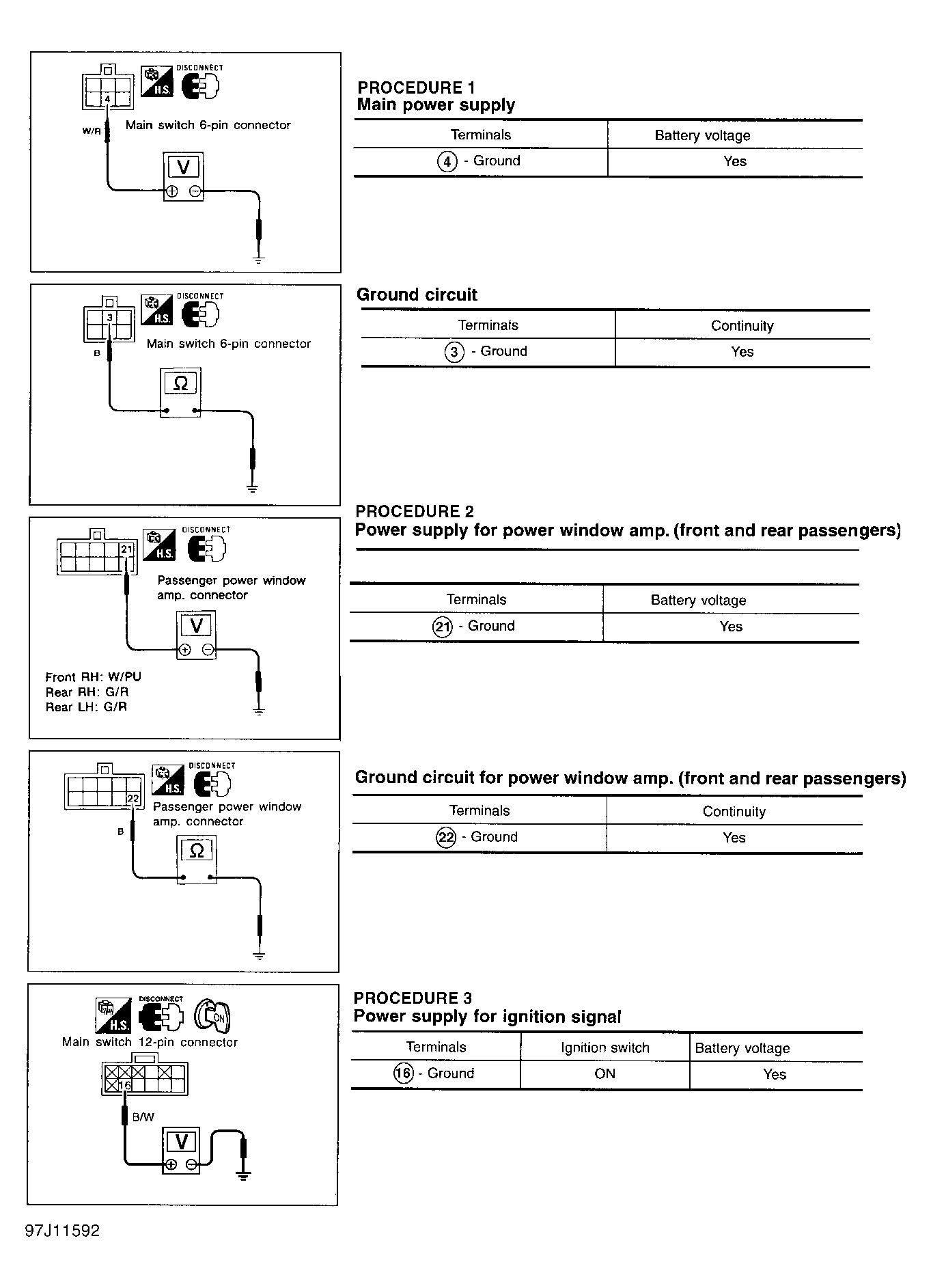

Fig 1: Main Power Supply & Ground Circuit Check
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
