Preliminary Checks: Notes
NOTE:

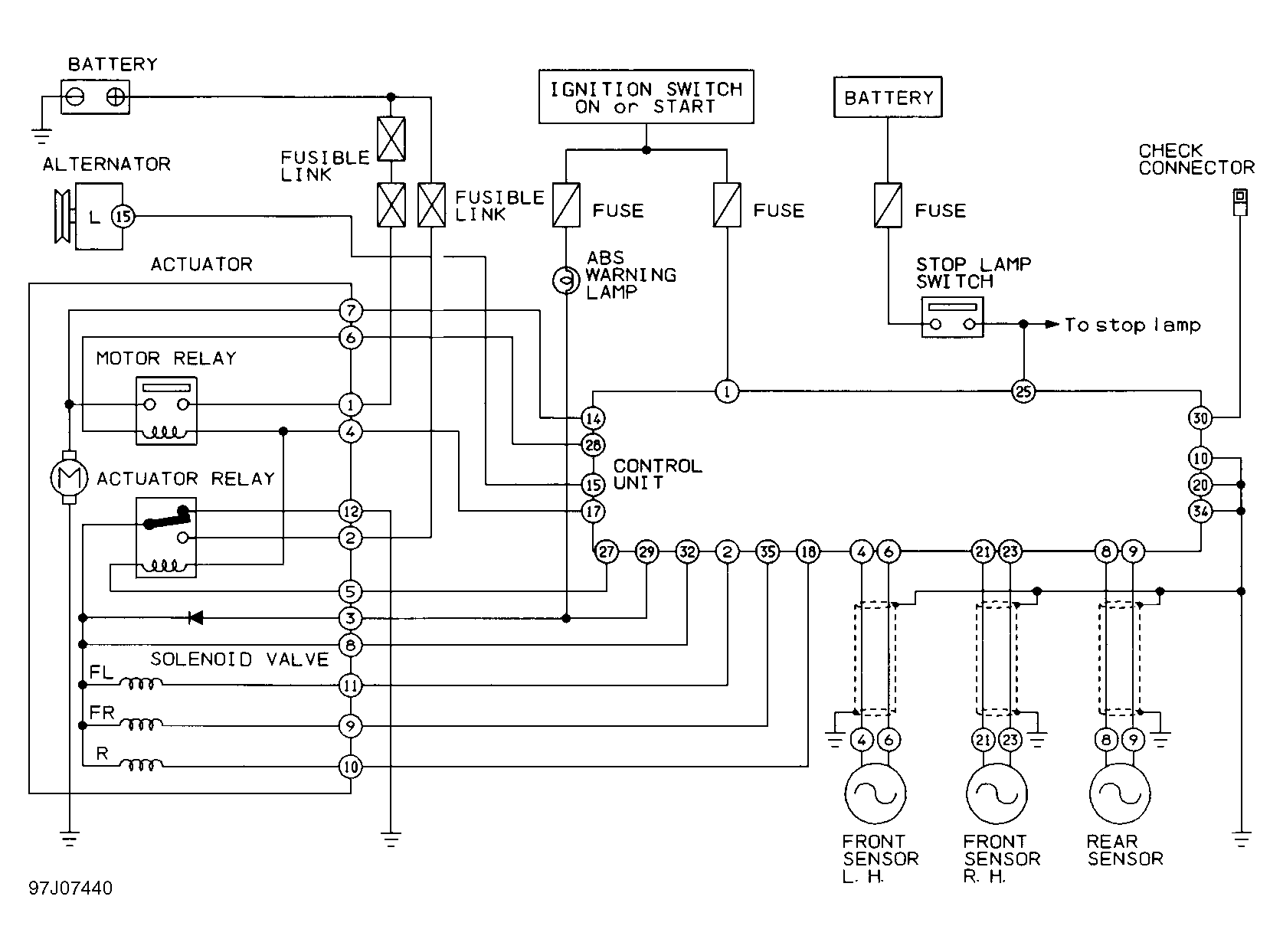

Before starting ABS system checks, road test vehicle to confirm customer complaint. See illustrations for component location, ABS control unit terminal identification and wiring schematic. See Figure
and Figure
. Also see WIRING DIAGRAMS
.
