Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

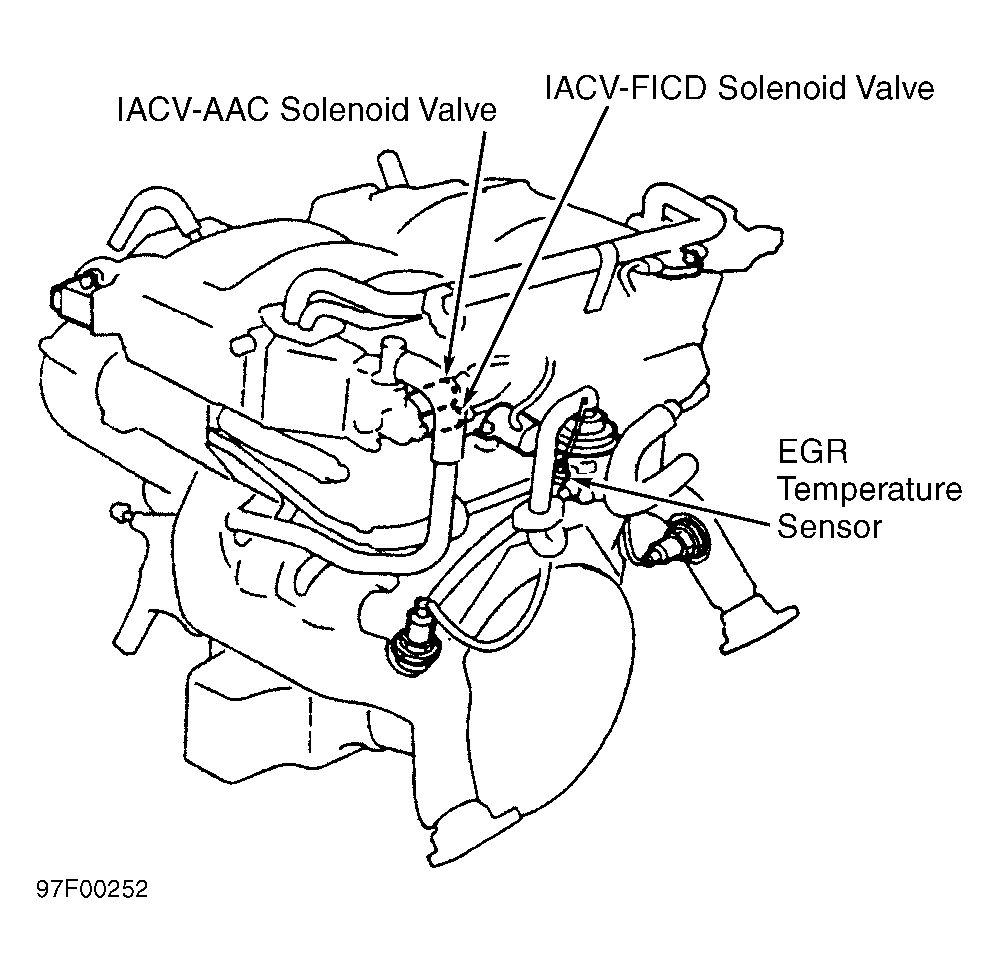

Fig 1: Right Side Of Engine

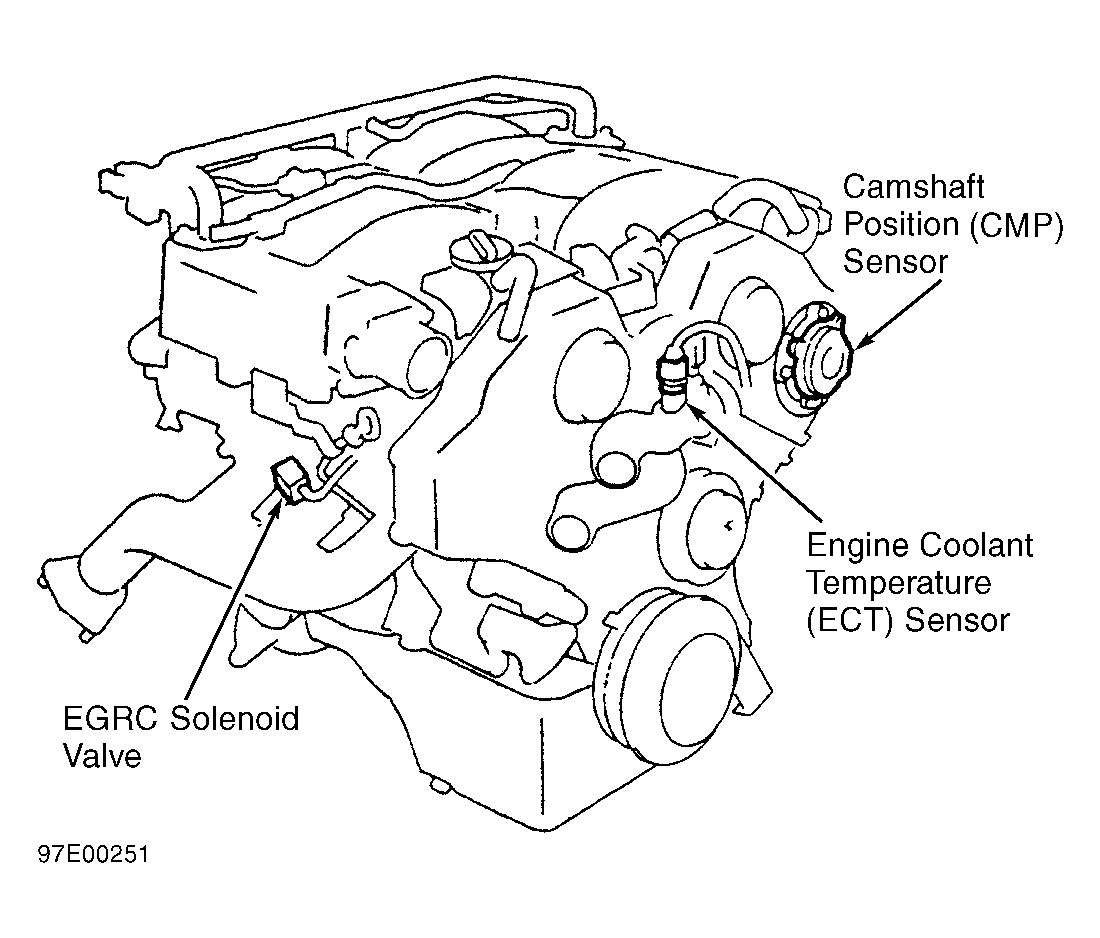

Fig 2: Left Side Of Engine

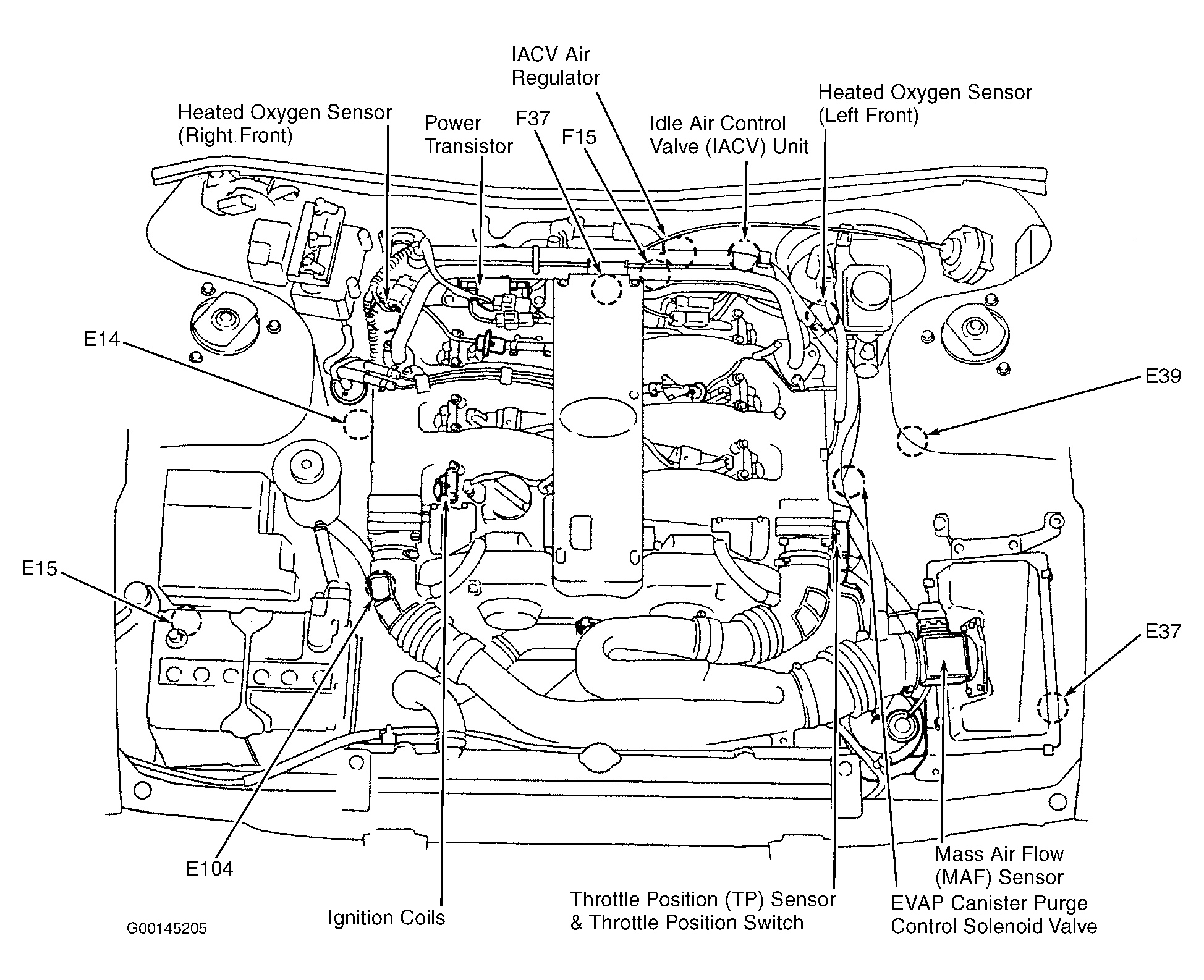

Fig 3: Engine Compartment

Fig 4: Engine Compartment

Fig 5: Dash
