Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

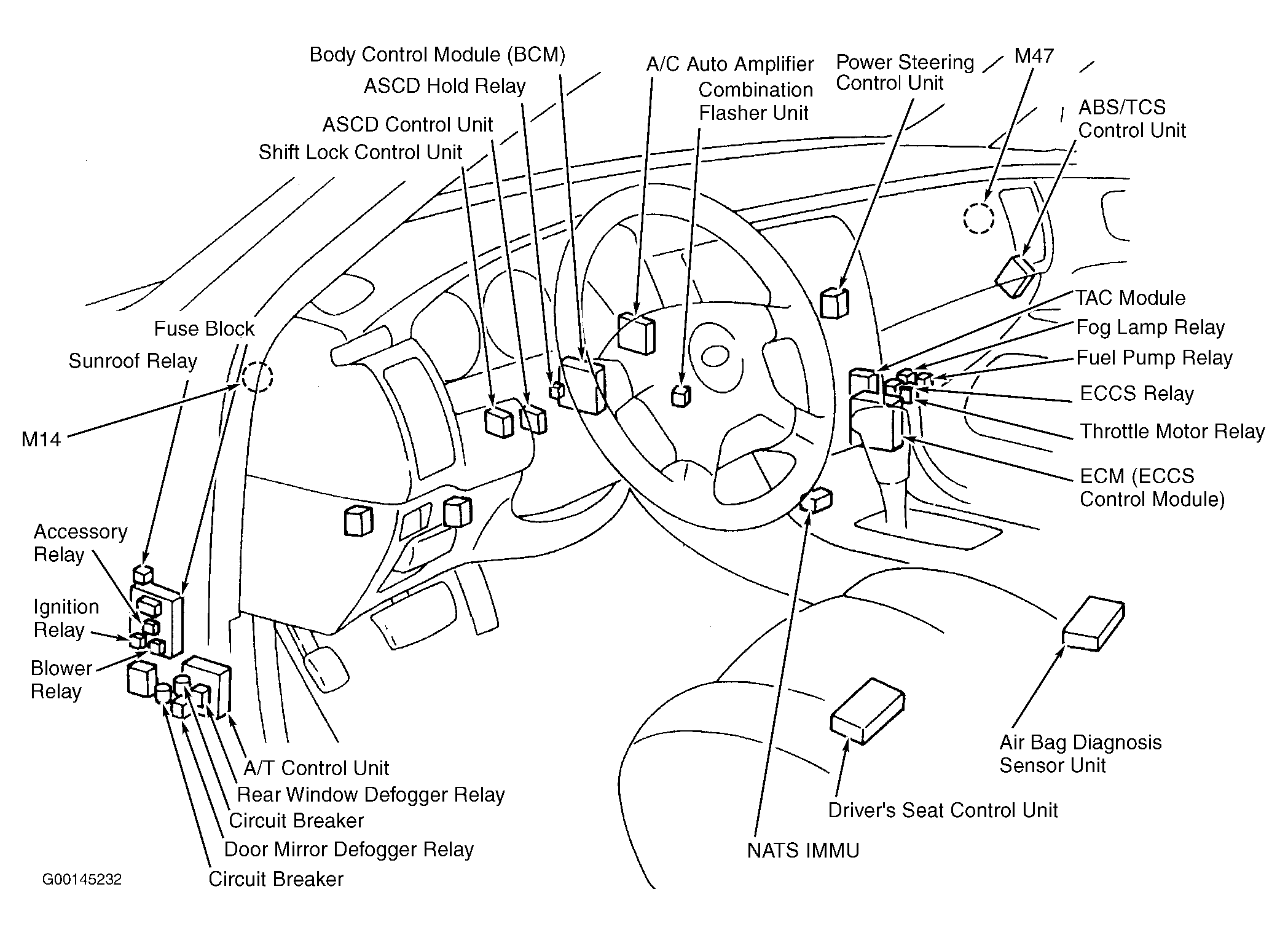

| Circuit Breakers (2) | Behind left kick panel. See Figure . |
| Fuse Block | Behind left side of dash. See Figure . |

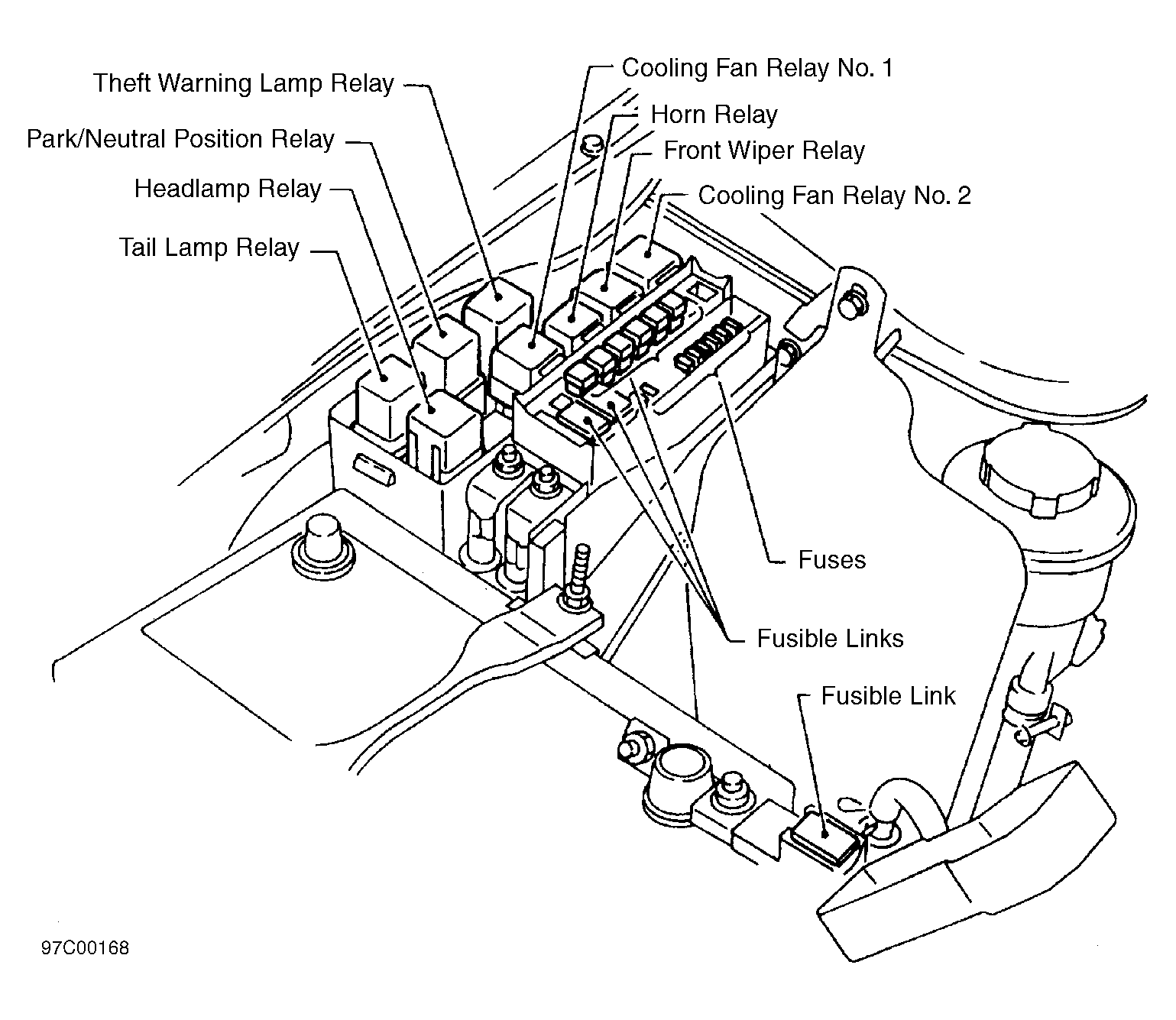

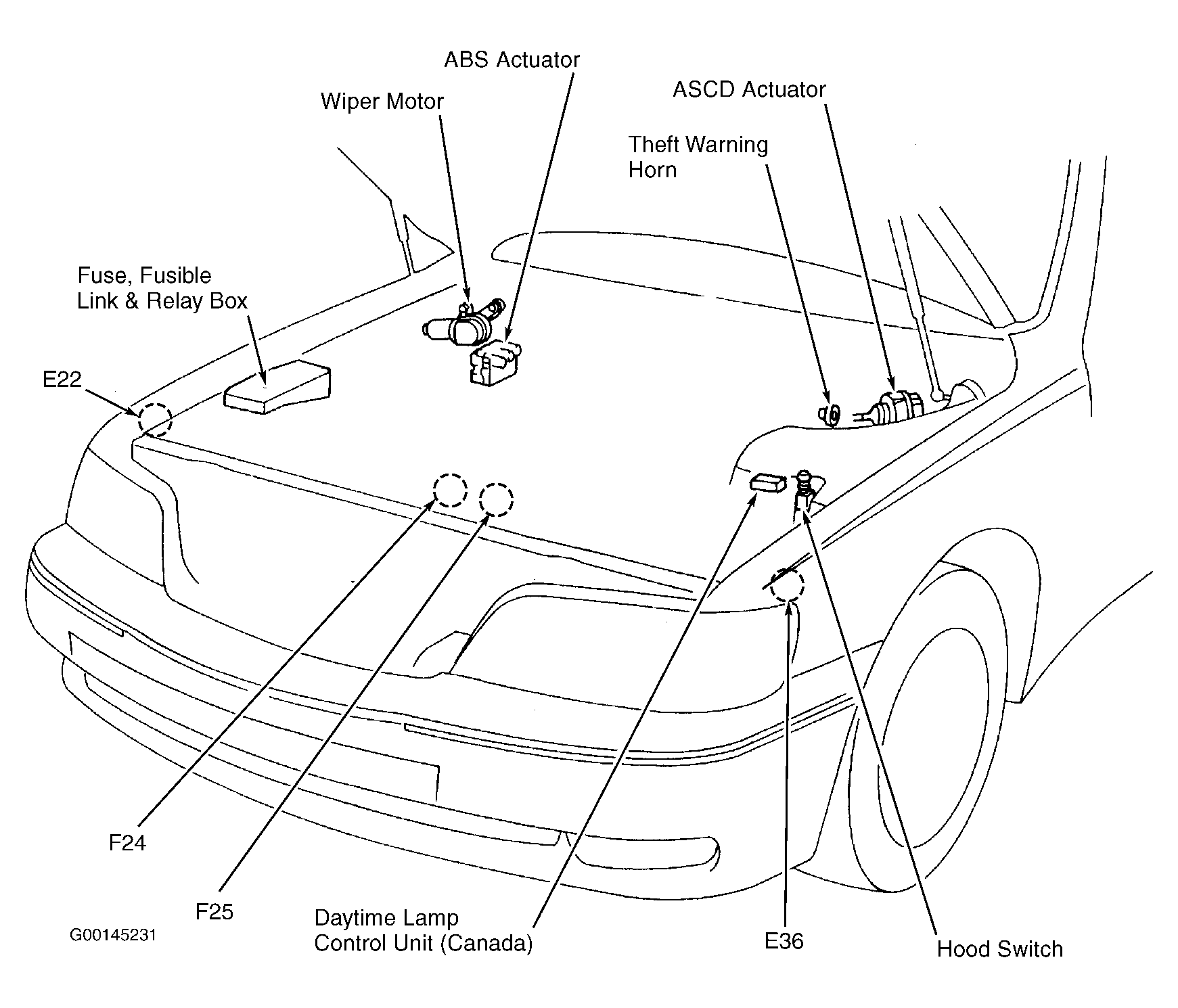

| Fuse, Fusible Link & Relay Box | In right front side of engine compartment, near battery. See Figure . |
| Fuses | In fuse, fusible link & relay box. See Figure . |
| Fusible Link | At battery cable. See Figure . |
| Fusible Links | In fuse, fusible link & relay box. See Figure . |
