Diagnostic Procedure 3: No Remote Controller Functions (2 Of 2)
Diagnostic Procedure 3: No Remote Controller Functions (2 Of 2)

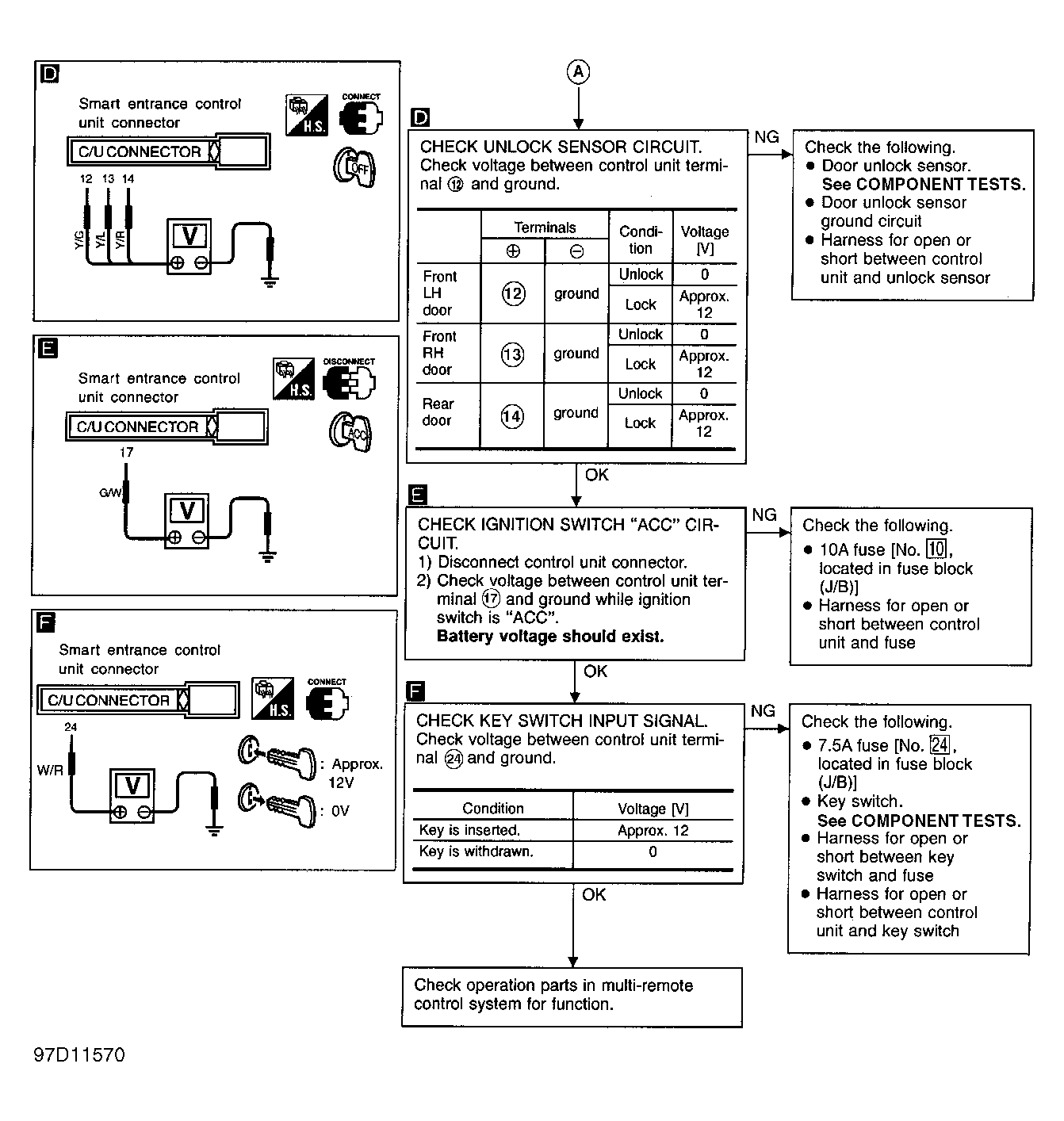

Fig 1: Diagnostic Procedure 3 - No Remote Controller Functions (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
