System Tests

Fig 1: Diagnostic Procedure 1: IMMU

Courtesy of NISSAN MOTOR CO., U.S.A.

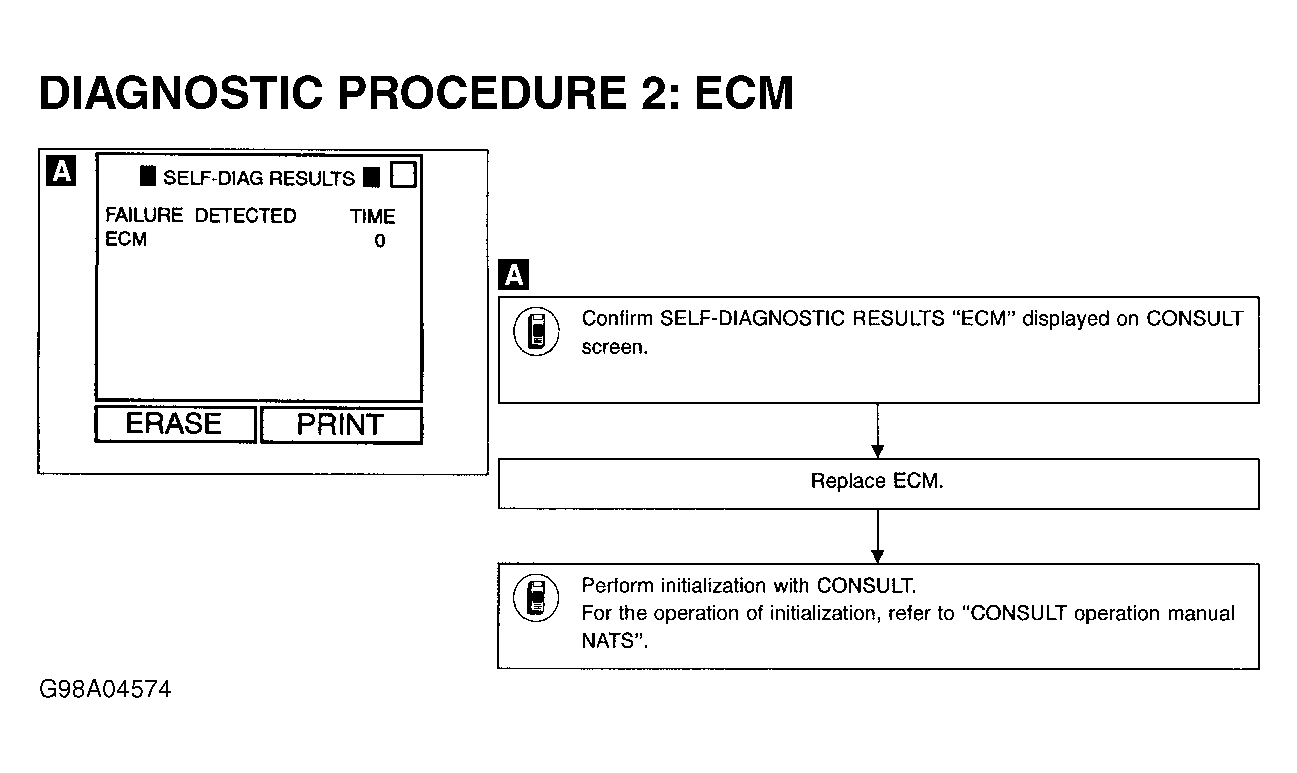

Fig 2: Diagnostic Procedure 2: ECM

Courtesy of NISSAN MOTOR CO., U.S.A.

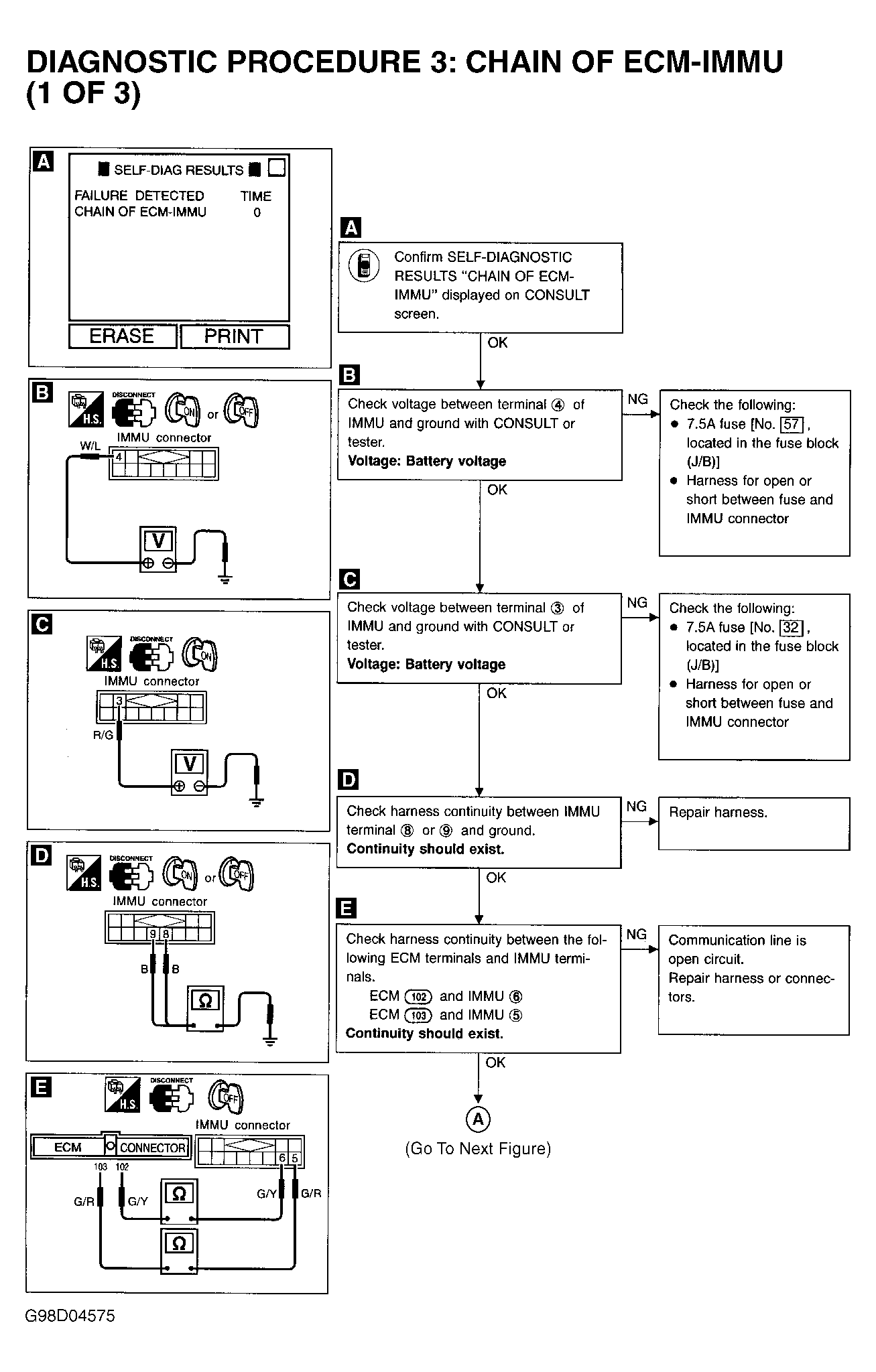

Fig 3: Diagnostic Procedure 3: Chain Of ECM-IMMU (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

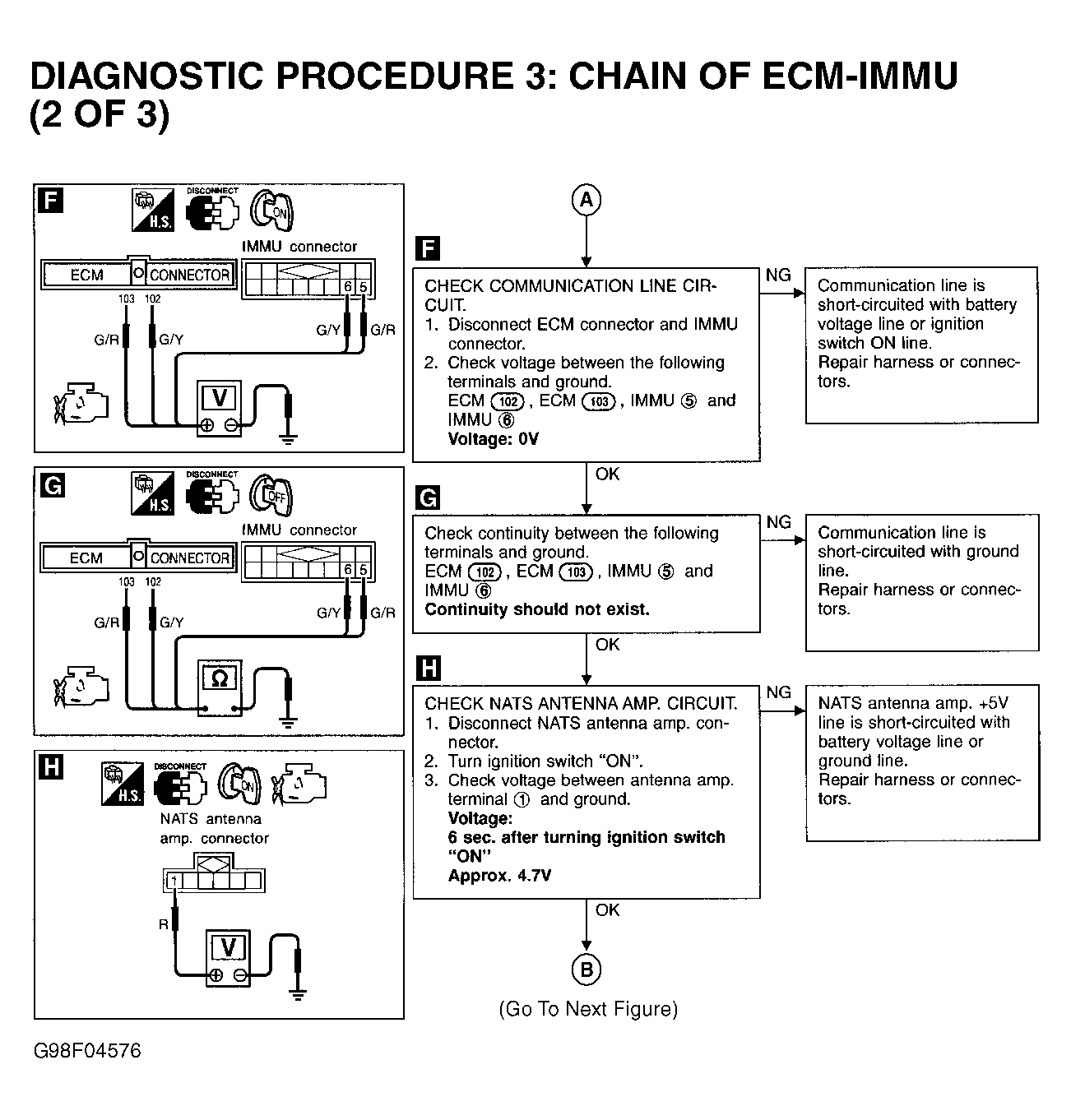

Fig 4: Diagnostic Procedure 3: Chain Of ECM-IMMU (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

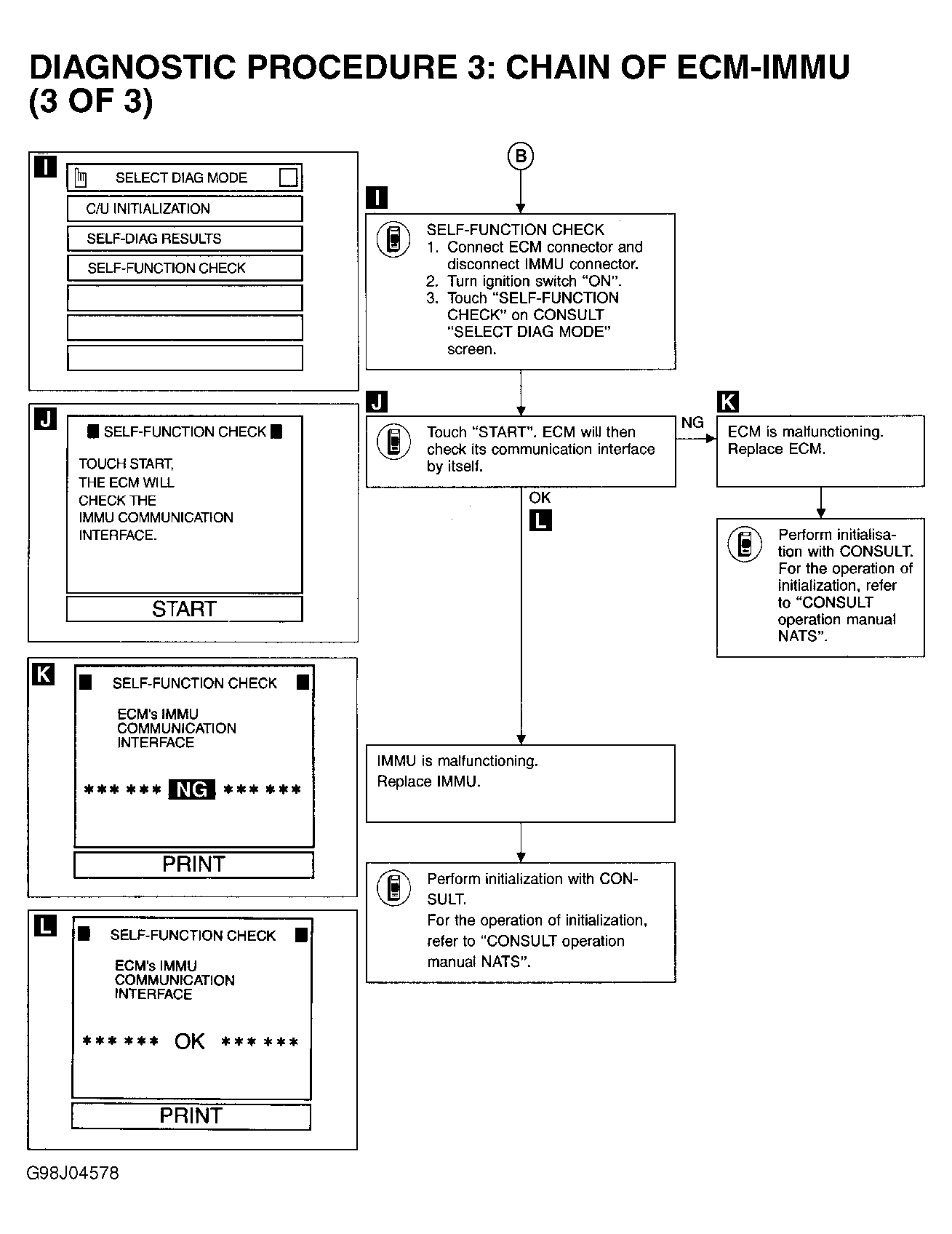

Fig 5: Diagnostic Procedure 3: Chain Of ECM-IMMU (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

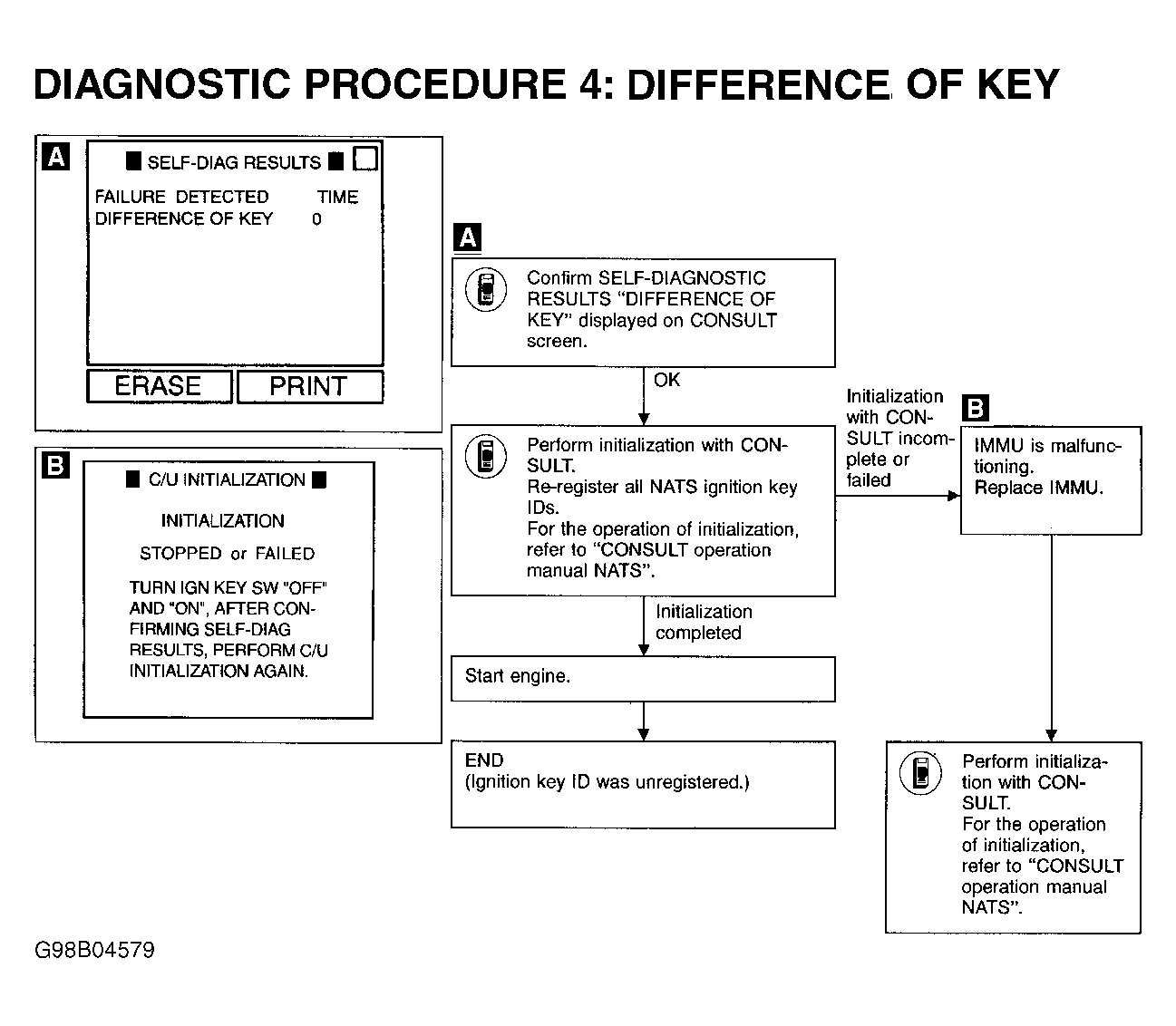

Fig 6: Diagnostic Procedure 4: Difference Of Key

Courtesy of NISSAN MOTOR CO., U.S.A.

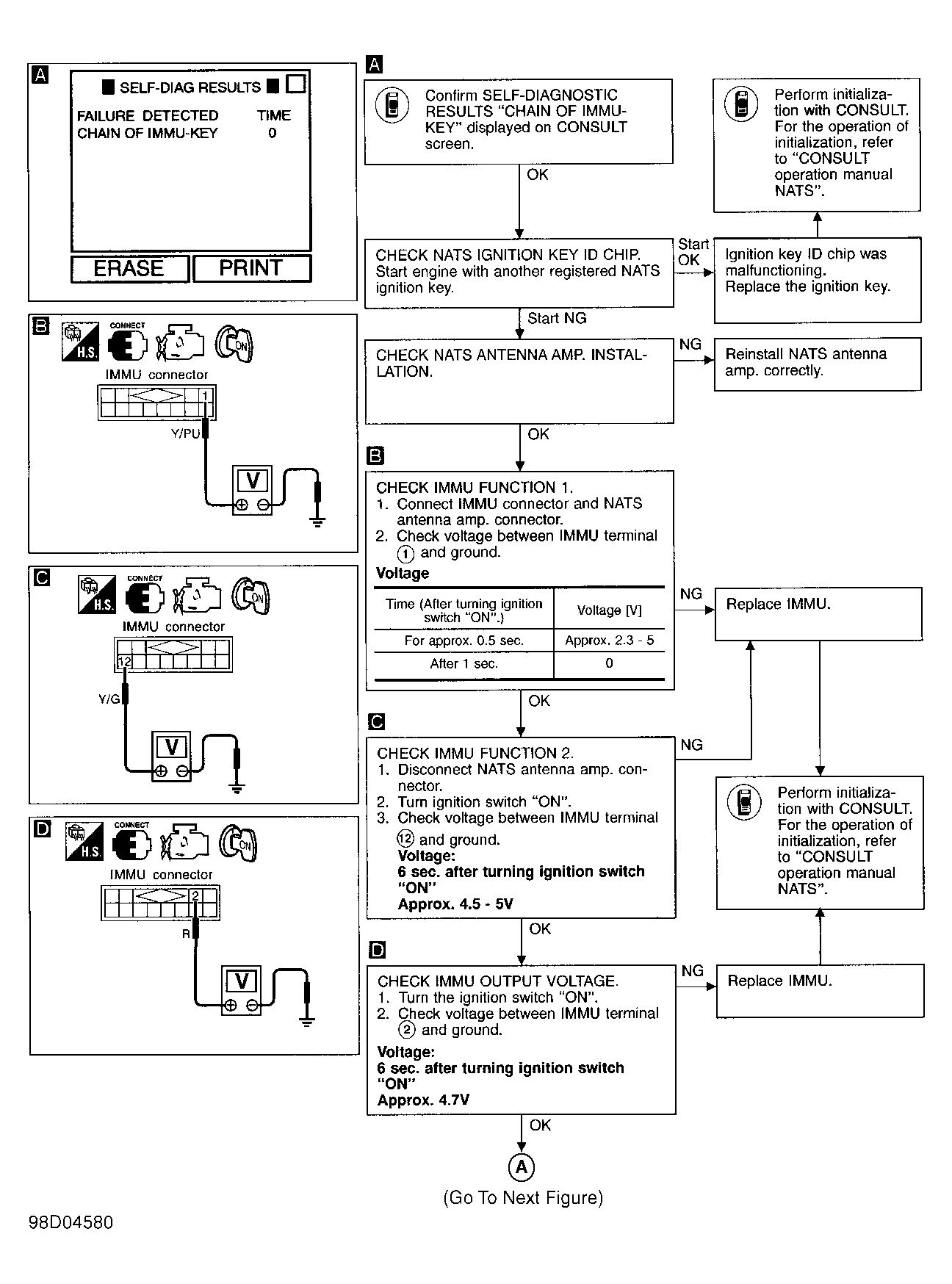

Fig 7: Diagnostic Procedure 5: Chain Of IMMU-KEY (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

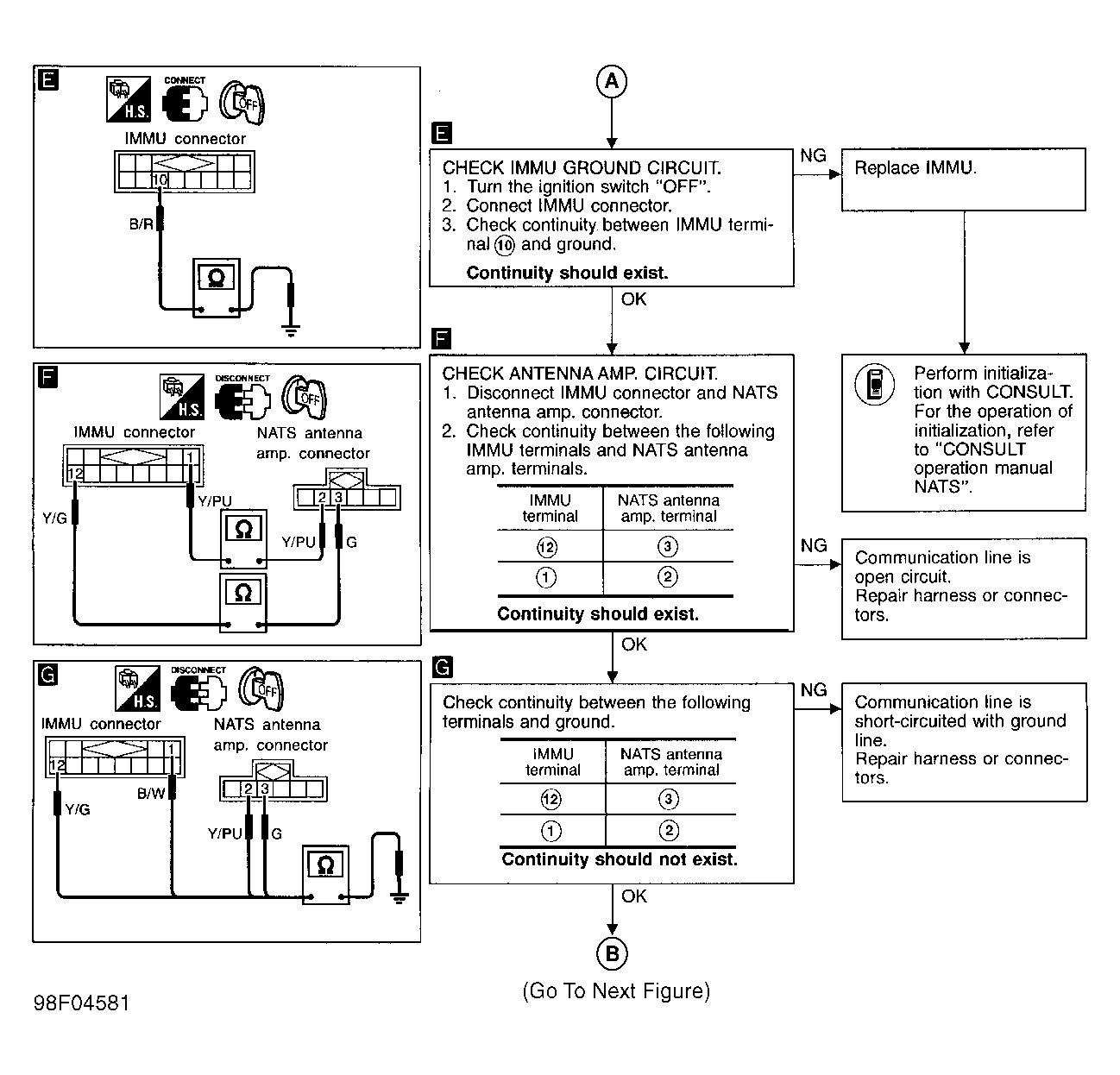

Fig 8: Diagnostic Procedure 5: Chain Of IMMU-KEY (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

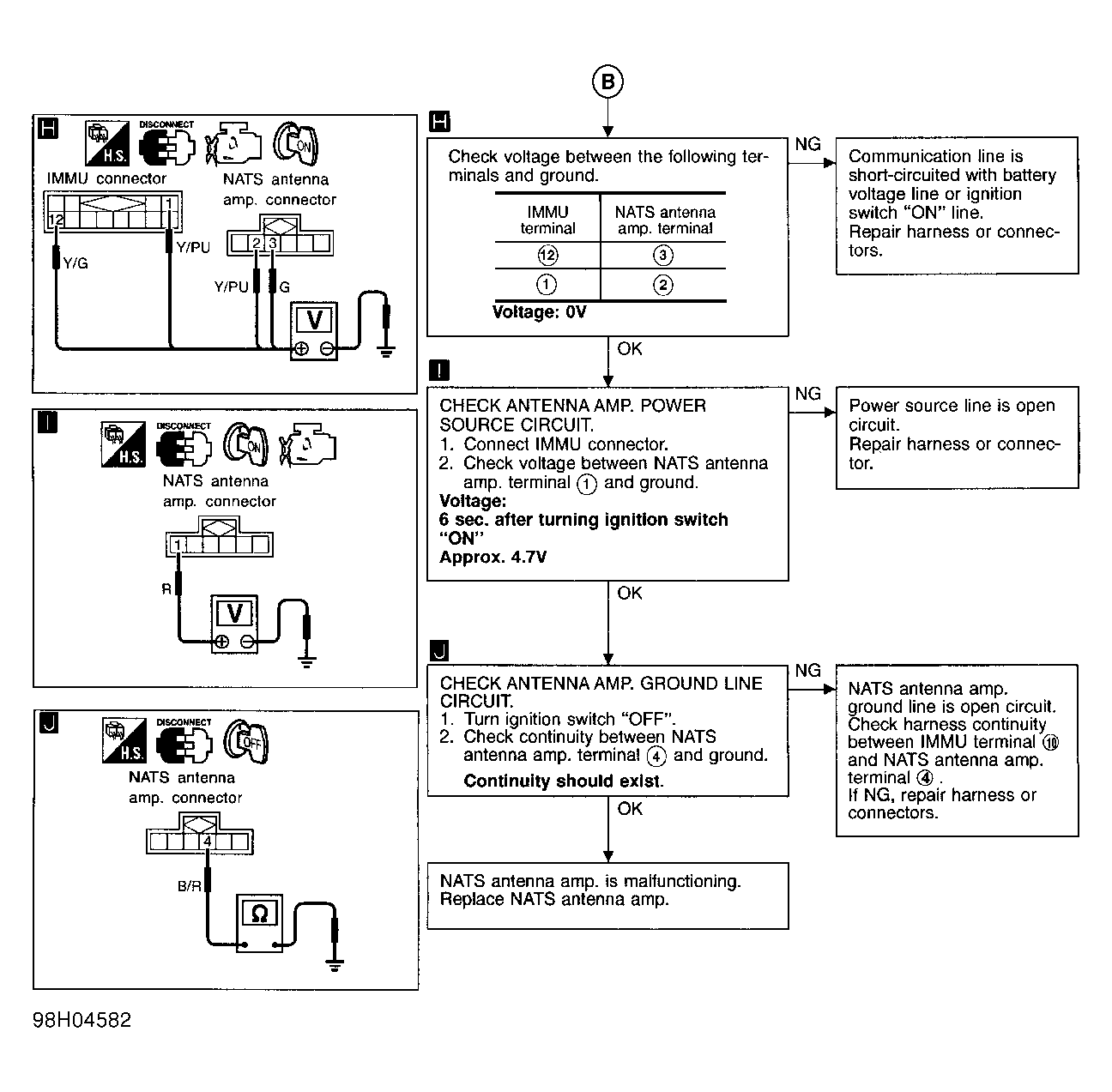

Fig 9: Diagnostic Procedure 5: Chain Of IMMU-KEY (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

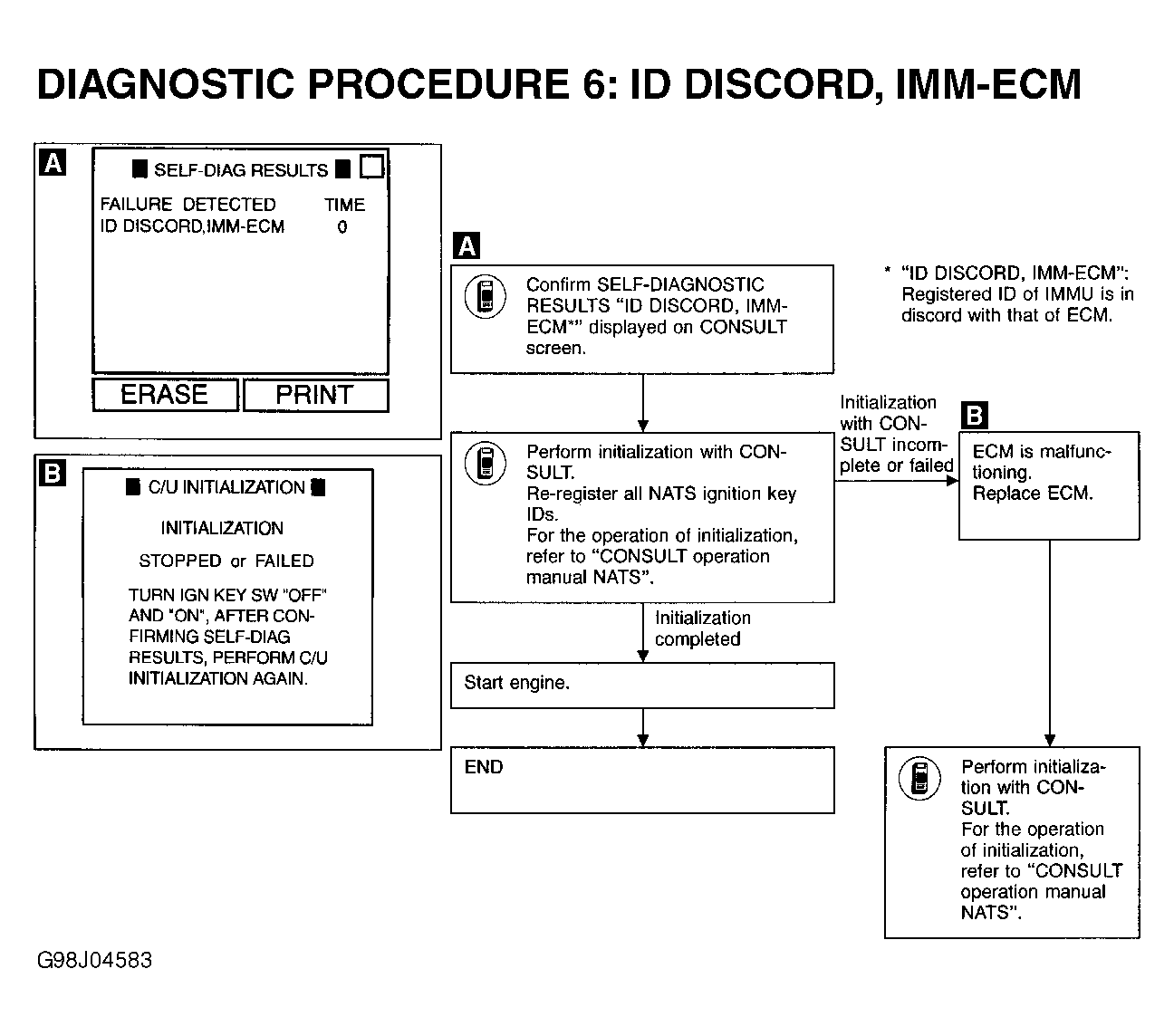

Fig 10: Diagnostic Procedure 6: ID Discord, IMM-ECM

Courtesy of NISSAN MOTOR CO., U.S.A.

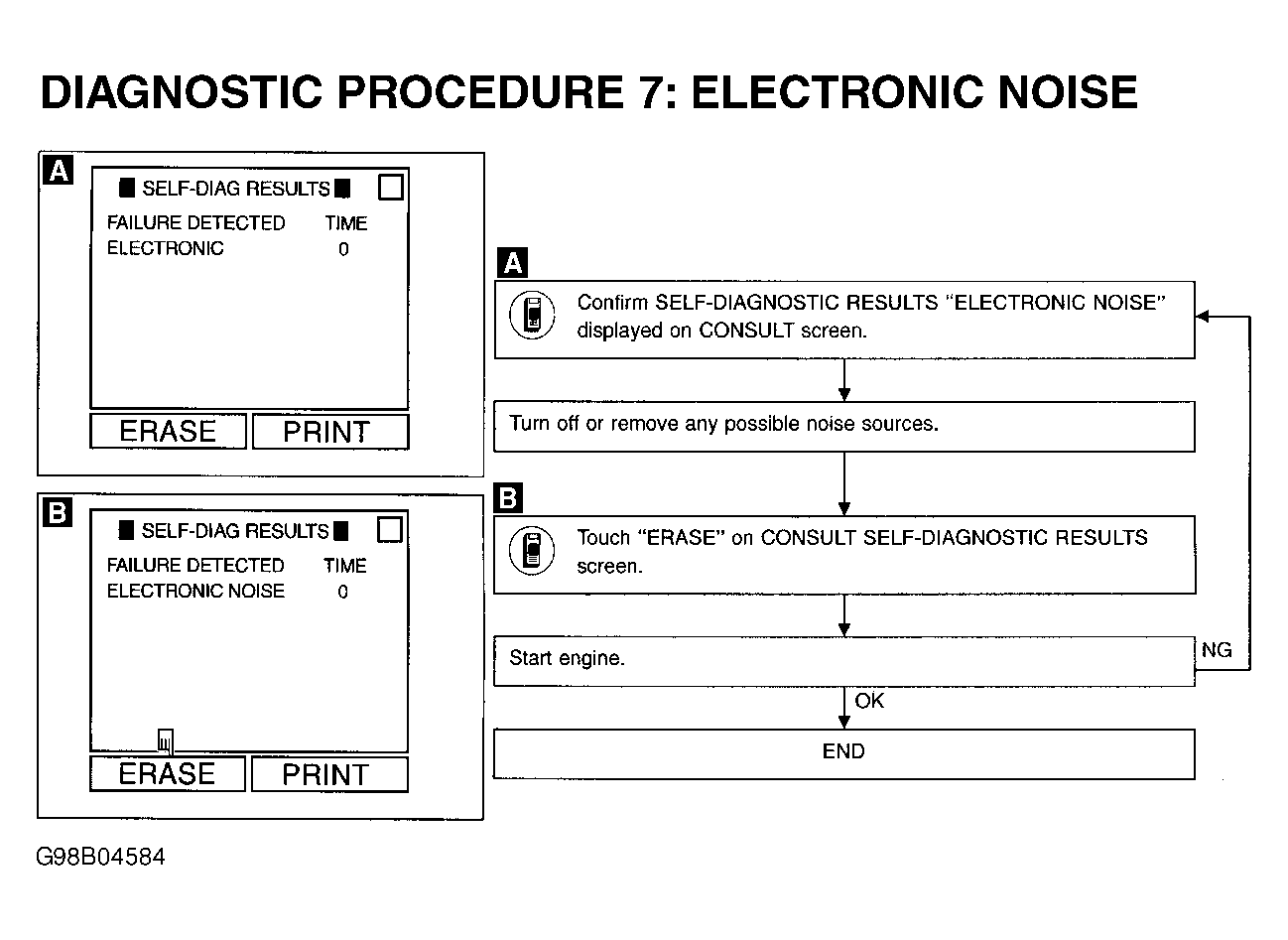

Fig 11: Diagnostic Procedure 7: Electronic Noise

Courtesy of NISSAN MOTOR CO., U.S.A.

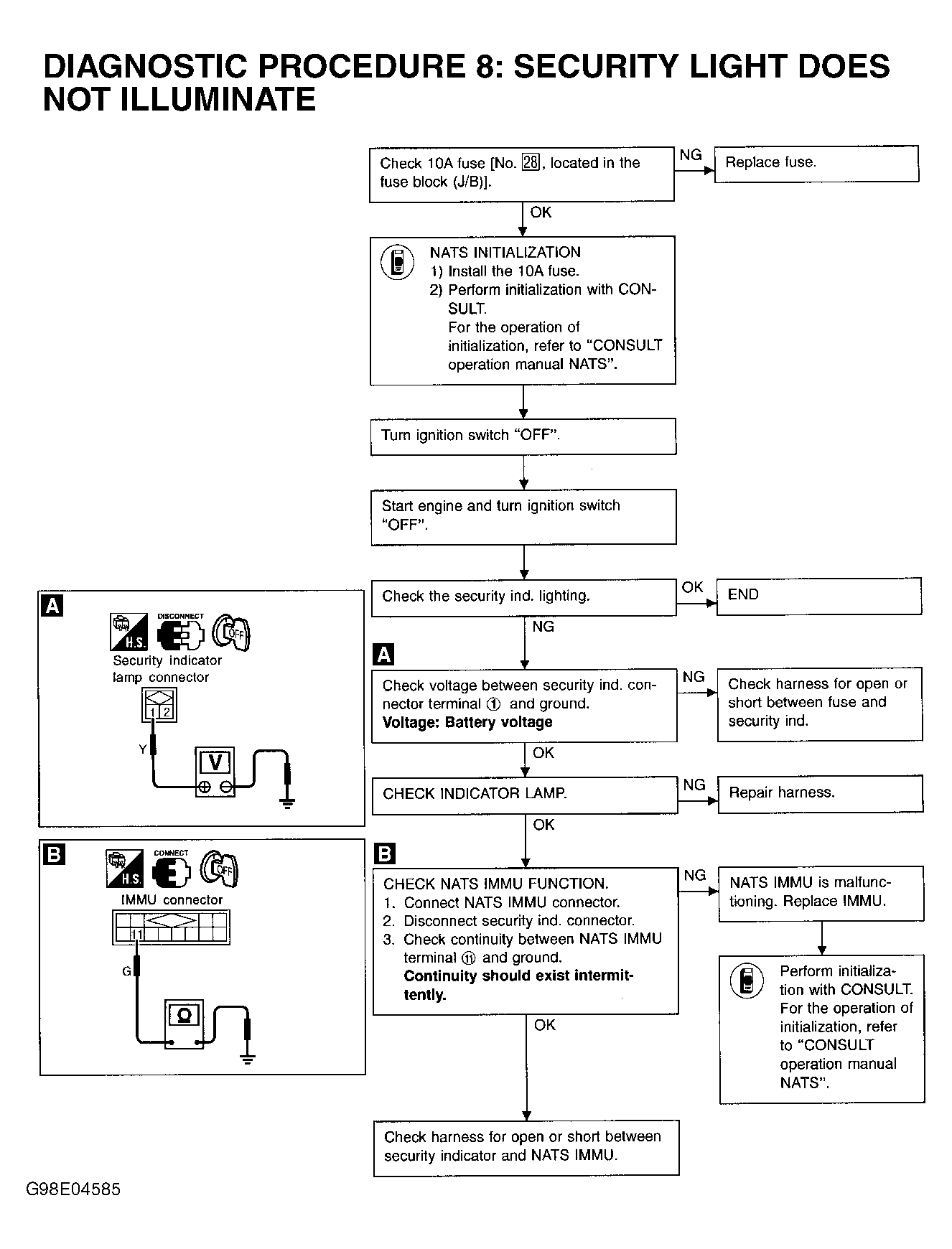

Fig 12: Diagnostic Procedure 8: SECURITY Light Does Not Illuminate

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Diagnostic Procedure 9: Lock Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
