Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

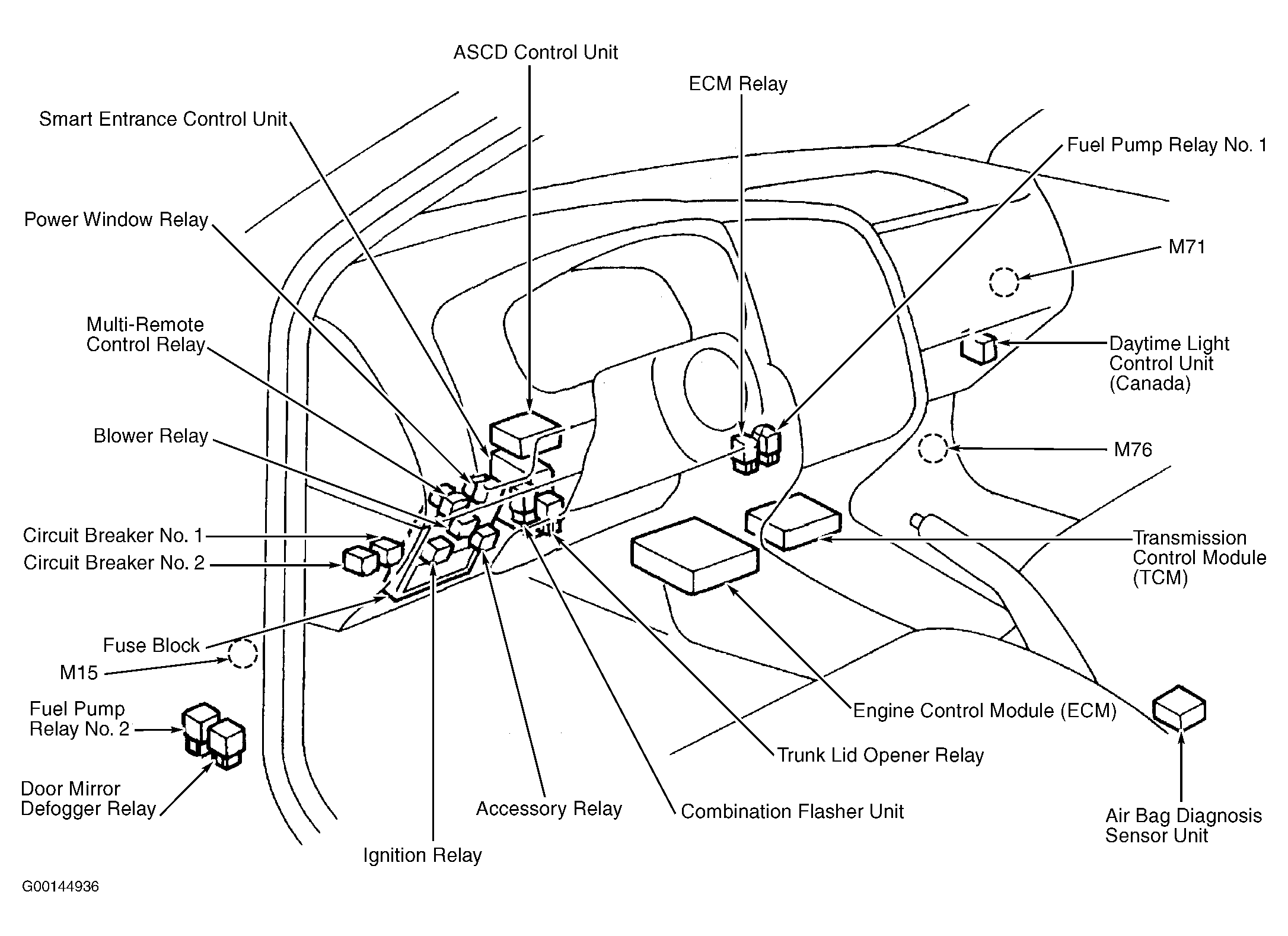

| Circuit Breaker No. 1 | Behind dash, left of fuse block. See Figure . |
| Circuit Breaker No. 2 | Behind dash, left of fuse block. See Figure . |
| Fuse Block | Behind dash, left of steering column. See Figure . |

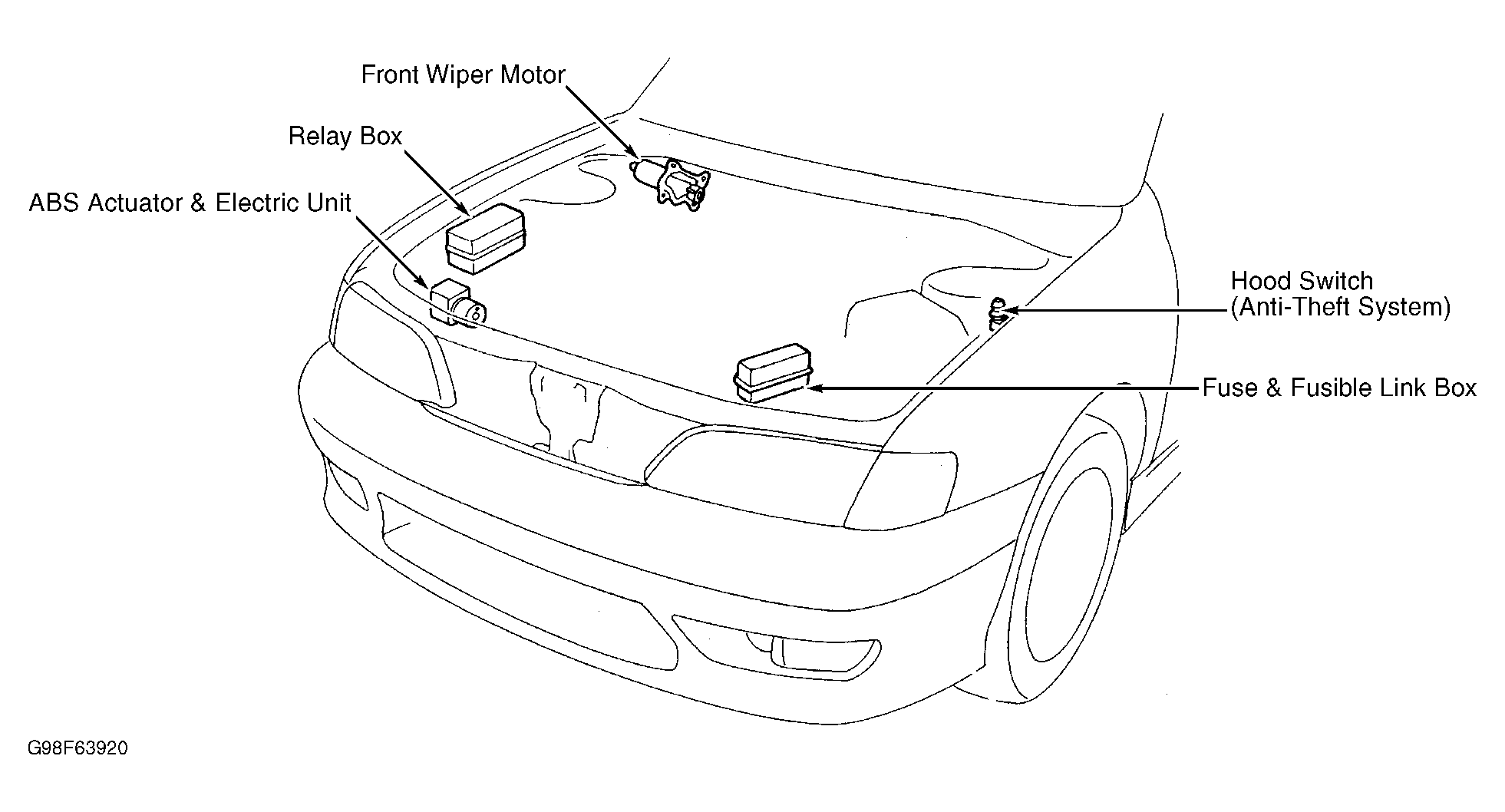

| Fuse & Fusible Link Box | Left front of engine compartment, next to battery. See Figure . |
| Relay Box | Right side of engine compartment. See Figure . |
