Low-Reverse Brake: Disassembly

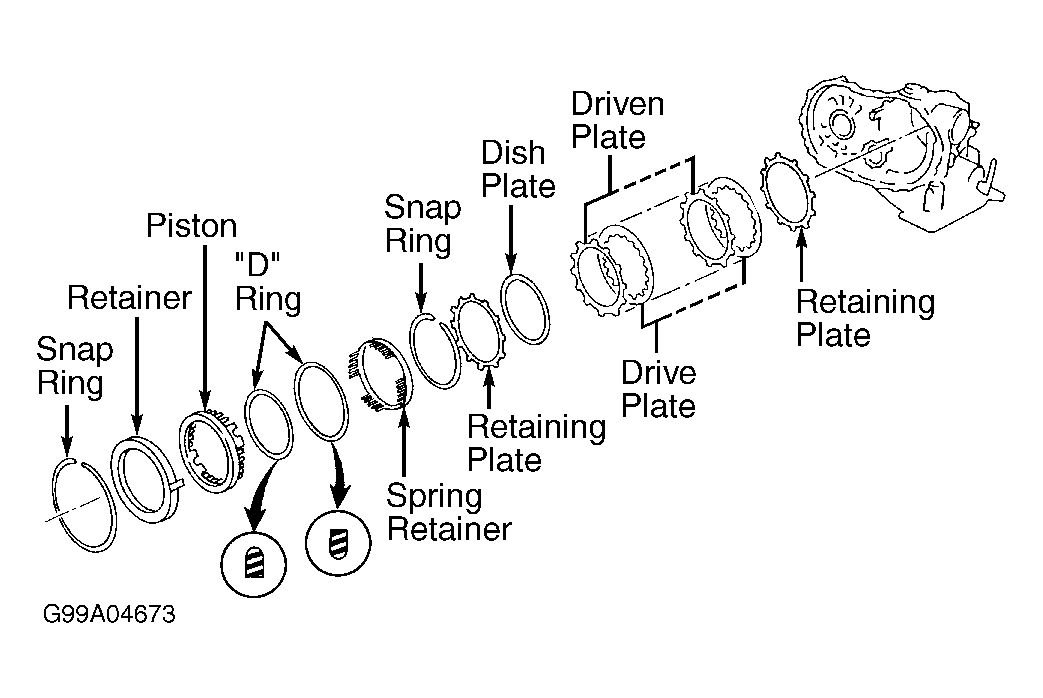

Position transaxle case to obtain access to low-reverse brake snap ring. Remove snap ring. Remove retaining plate, dish plate, drive plates and driven plates from transaxle case. See Figure . Record number of plates for reassembly reference. Apply compressed air to oil hole of piston retainer to remove piston. See Figure . Remove "D" rings from piston.
