System Tests: Notes
NOTE:

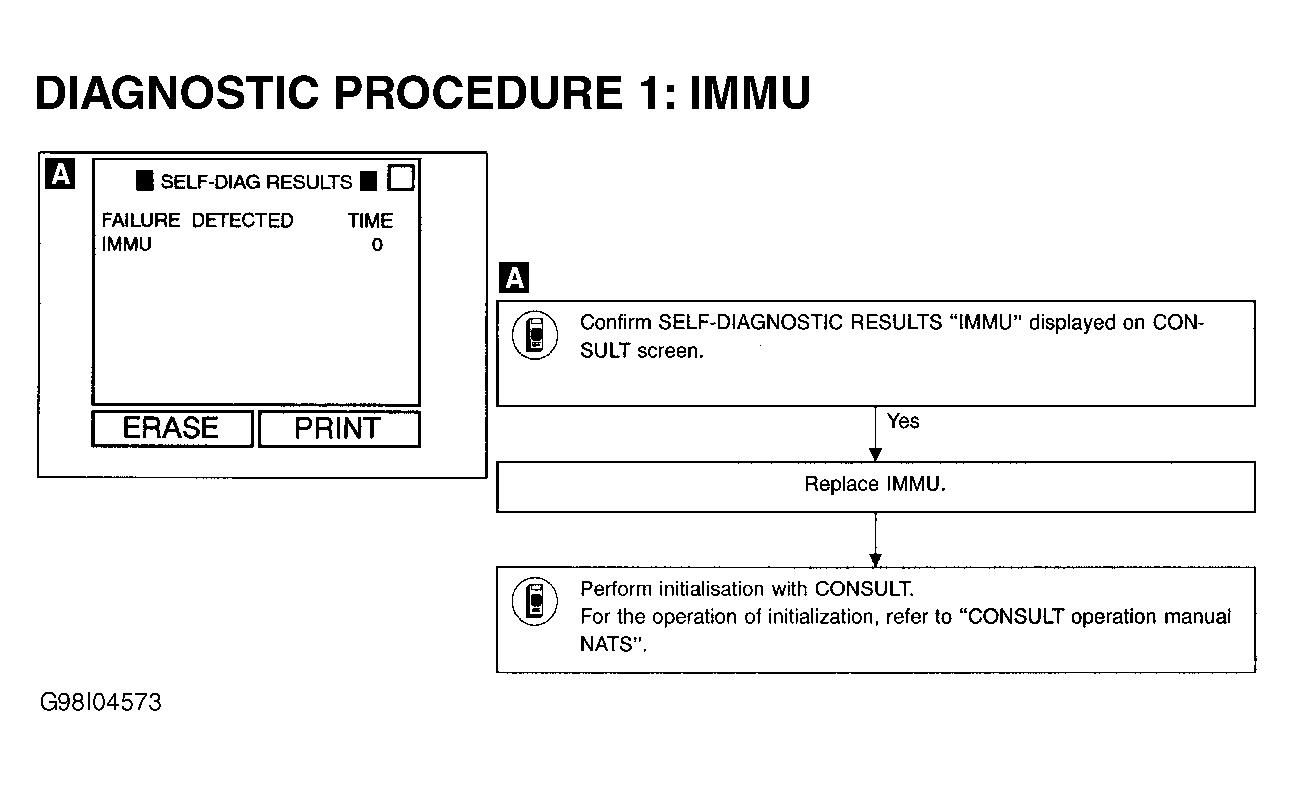

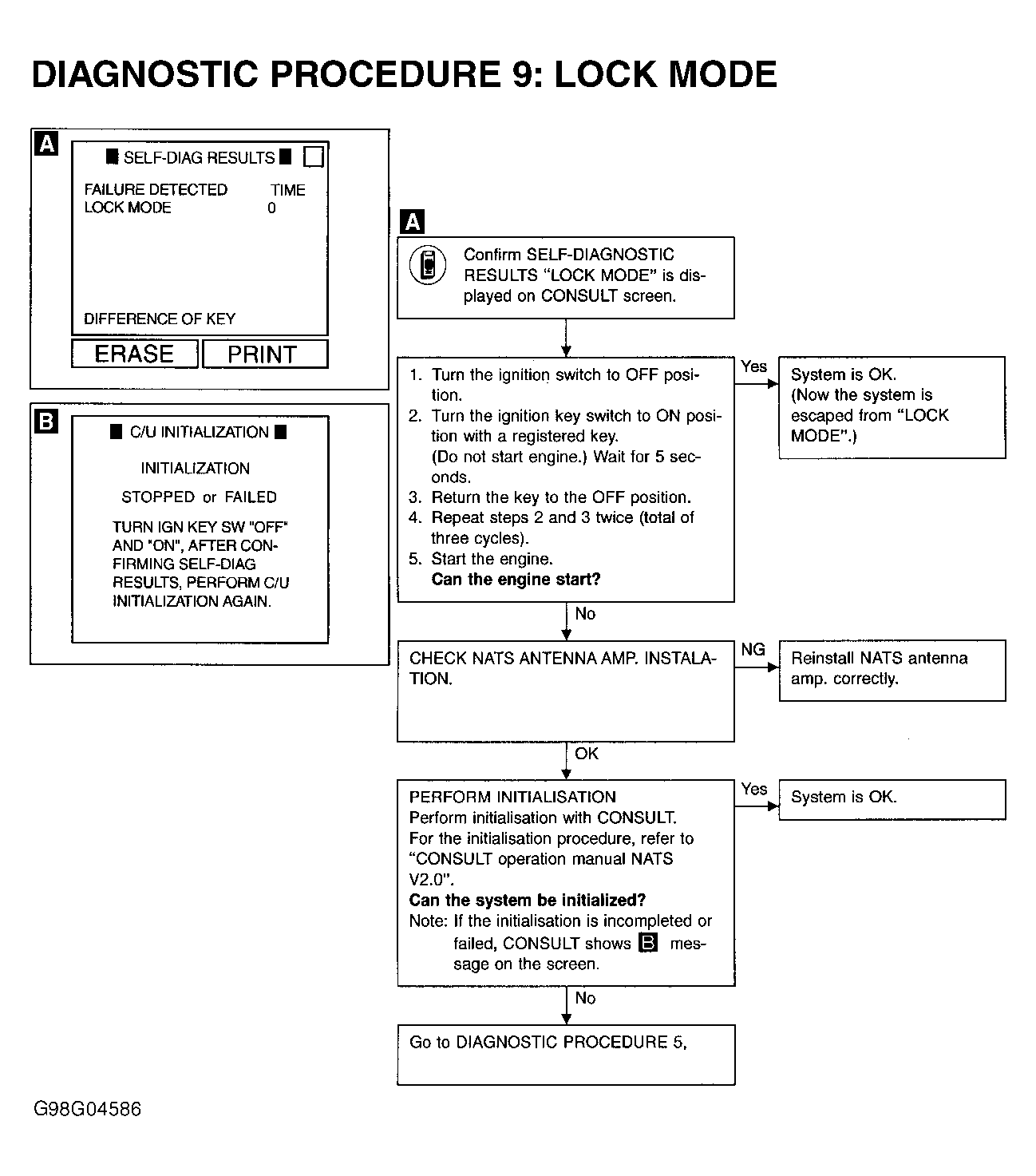

For diagnostic procedures, see
Figure
-
Figure
. For ECM harness connector terminal identification, see
Fig 1
.
Fig 1: Identifying ECM Harness Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
