Strut Assembly: Reassembly

On Q45 models, lubricate sealing lip of gland packing nut. Cover piston rod with tape to prevent damage to sealing lip of gland packing nut. Use Wrench (ST35490000) to tighten gland packing nut to specification. See Fig 1.
On all other models, be careful to install spring correctly. Top end is flat. Install upper spring seat with notch facing outer side of vehicle. Install piston rod lock nut and tighten to specification. See TORQUE SPECIFICATIONS .

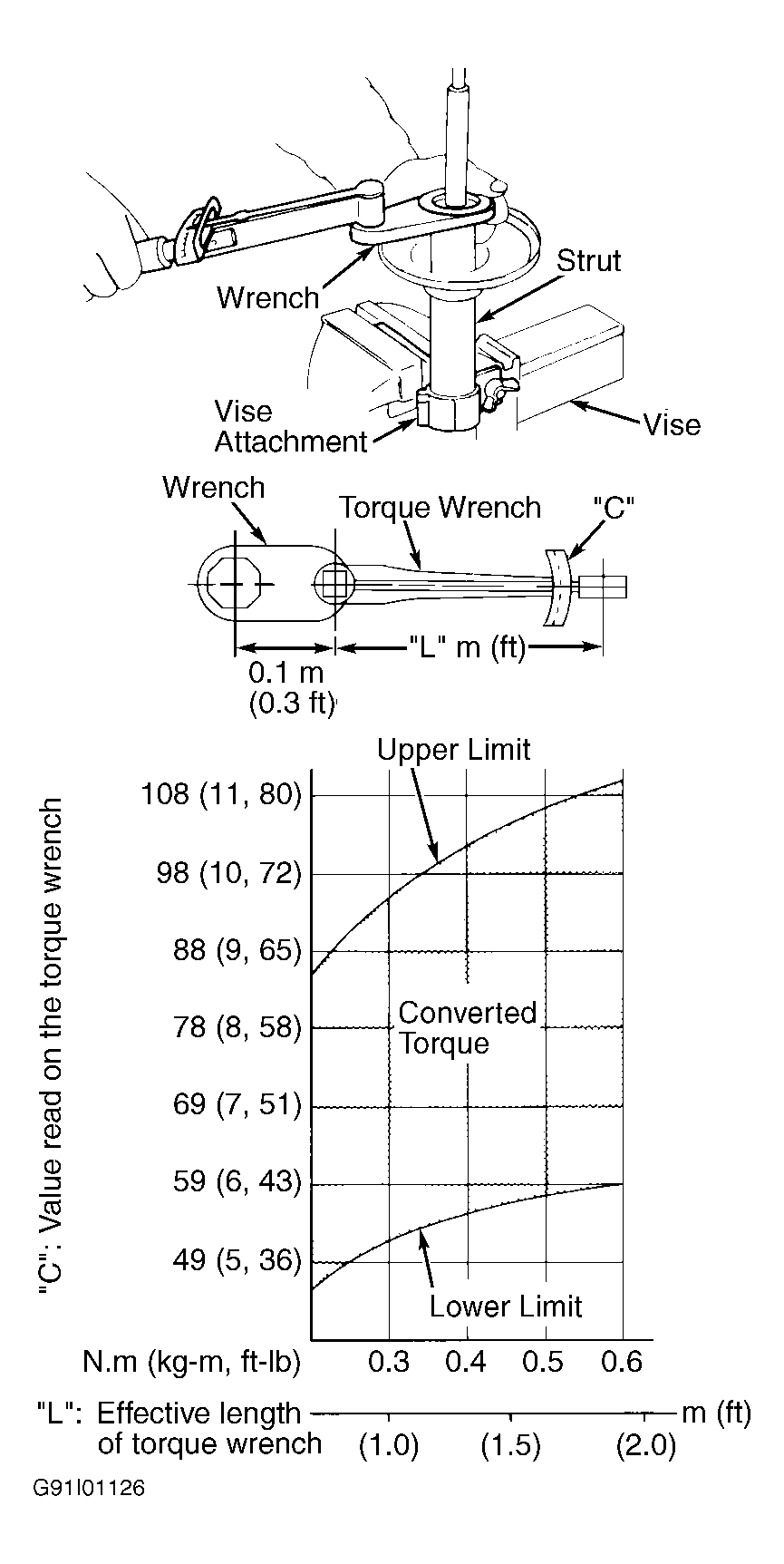

Fig 1: Tightening Gland Packing Nut (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
