Component Locations

COMPONENT LOCATIONS

Component

Location

ASCD Actuator ⁽¹⁾

Right Rear Of Engine Compartment

ASCD Brake Switch ⁽²⁾

On Bracket, Above Brake Pedal

ASCD Control Unit ⁽³⁾

Behind Driver-Side Kick Panel

ASCD Hold Relay ⁽⁴⁾

Engine Compartment Relay Box

ASCD Main Switch

Left Side Of Instrument Panel

ASCD Pump ⁽¹⁾

Right Rear Of Engine Compartment

ASCD Steering Wheel Switch

Mounted On Steering Wheel

Park Neutral Position (PNP) Relay ⁽⁵⁾

Engine Compartment Fuse/Relay Box

Brakelight Switch ⁽²⁾

On Bracket, Above Brake Pedal

⁽¹⁾

⁽²⁾

⁽³⁾

⁽⁴⁾

⁽⁵⁾

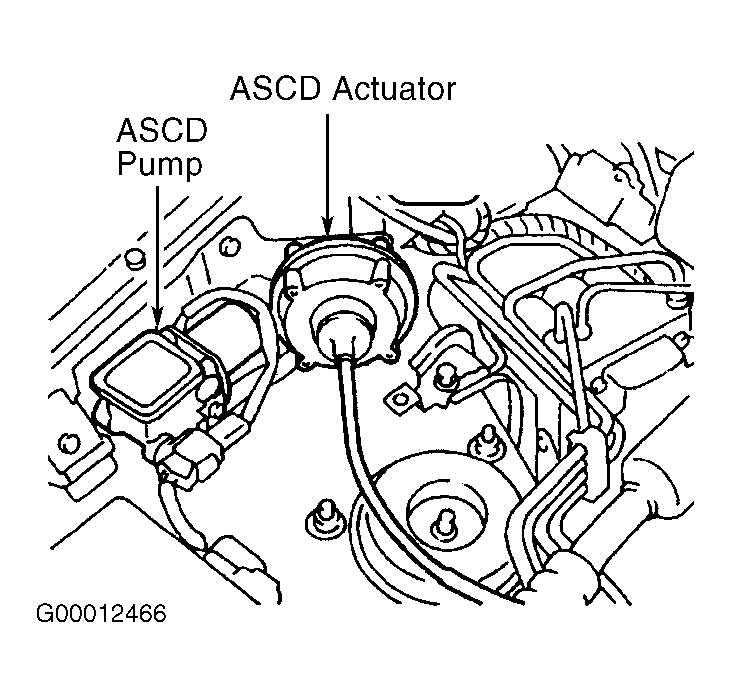

Fig 1: Identifying ASCD Actuator Location

G00012466

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying ASCD Brake Switch Location

G00012468

Courtesy of NISSAN MOTOR CO., U.S.A.

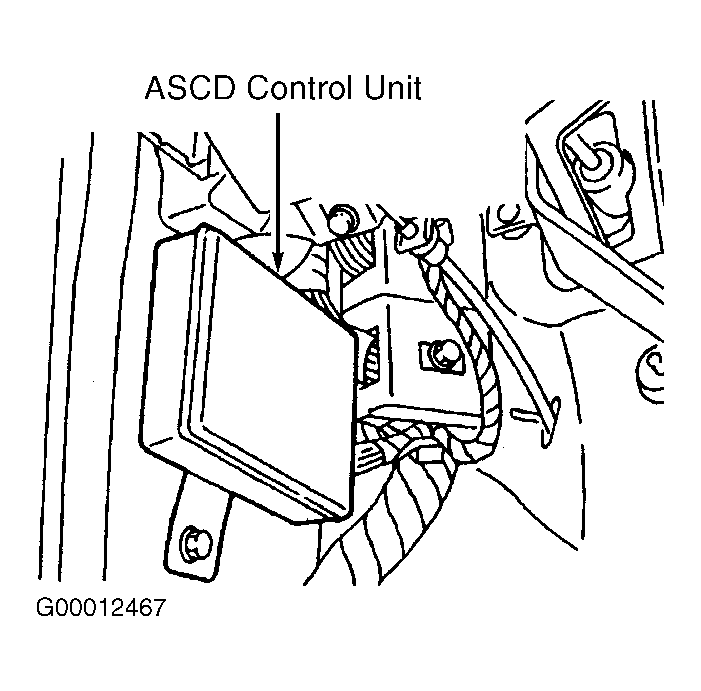

Fig 3: Identifying ASCD Control Unit Location

G00012467

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying ASCD Hold Relay Location

G00012455

Courtesy of NISSAN MOTOR CO., U.S.A.

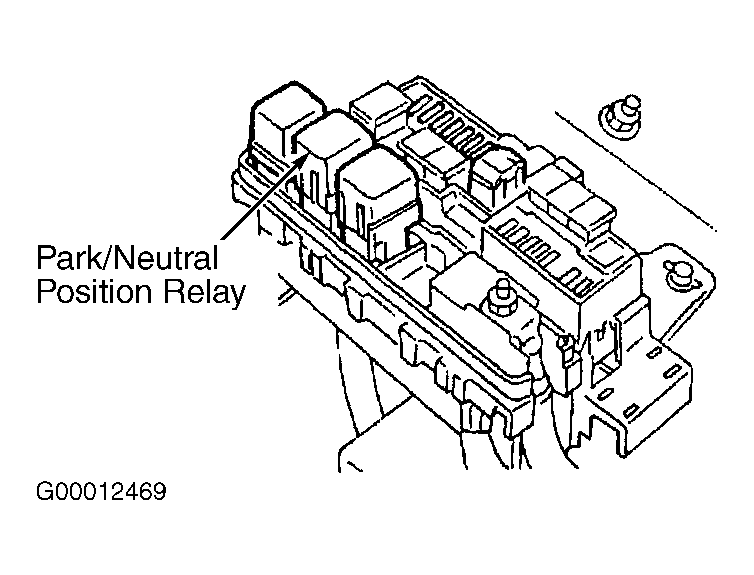

Fig 5: Identifying Park/Neutral Position Relay Location

G00012469

Courtesy of NISSAN MOTOR CO., U.S.A.
