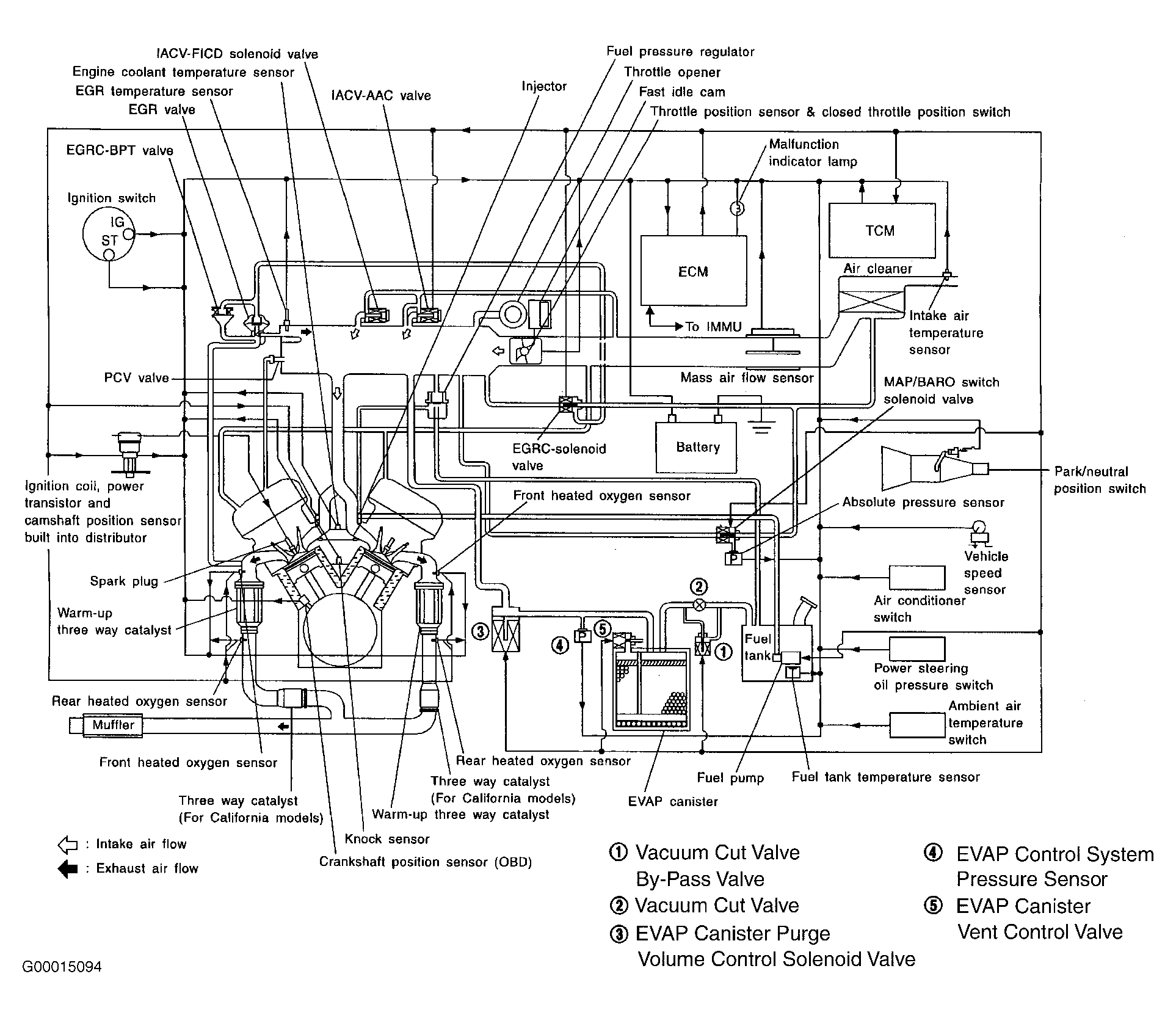

Fig 1: Engine Control System Vacuum Diagram (Pathfinder & QX4)
Courtesy of NISSAN MOTOR CO., U.S.A.

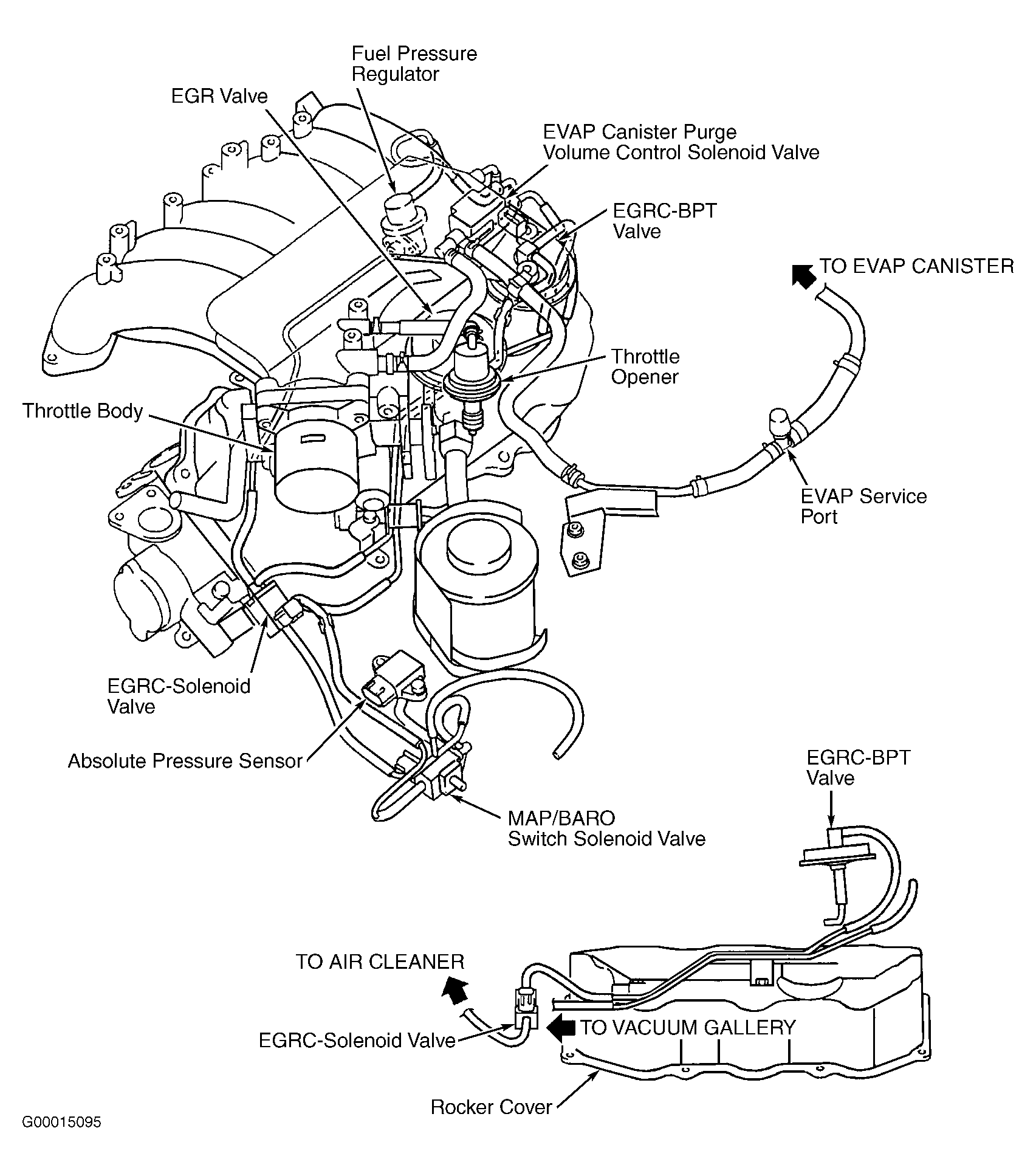

Fig 2: Identifying Engine Vacuum Hose Routing (Pathfinder & QX4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
