Transaxle Case

  1. Insert differential oil seal into differential case until it becomes flush with case end face.

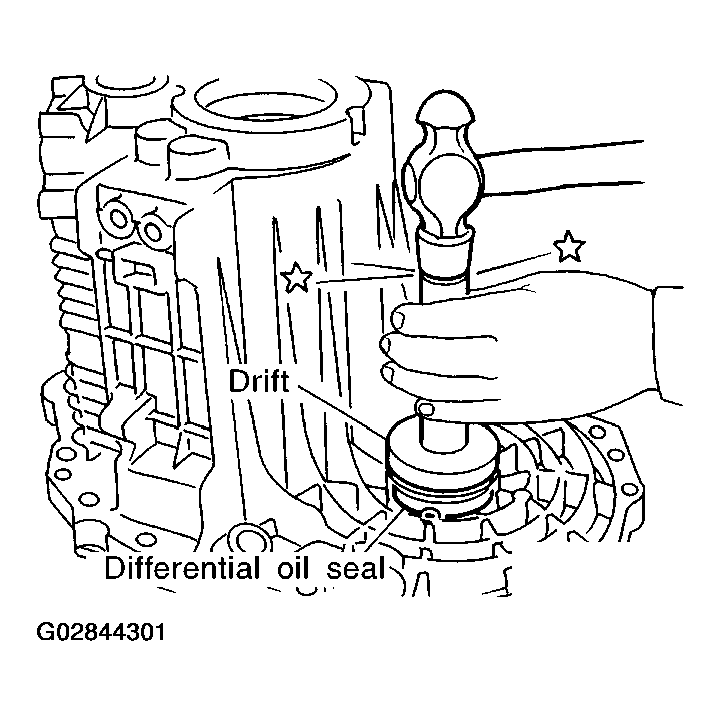

    Fig 1: Inserting Differential Oil Seal Into Differential Case
    G02844301
  2. Install welch plug into transaxle case.
    Fig 2: Installing Welch Plug Into Transaxle Case
    G02844302
  3. Calculate dimension "N" (thickness of adjusting shim) using the following procedure to satisfy specification of end play for differential side bearing.

    End play: 0.15 - 0.21 mm (0.0059 - 0.0083 in)

    Dimension "N" = (N1 - N2) + End play

    N: Thickness of adjusting shim

    N1: Distance between clutch housing case end face and mounting face of adjusting shim

    N2: Distance between differential side bearing and transaxle case

    Differential side bearing adjusting shims:

    Refer to  SDS  , .

    Fig 3: Identifying Thickness Of Adjusting Shim
    G02844303
    1. Using dial gauge and scale, measure dimension "N1" between clutch housing case end face and mounting face of adjusting shim.

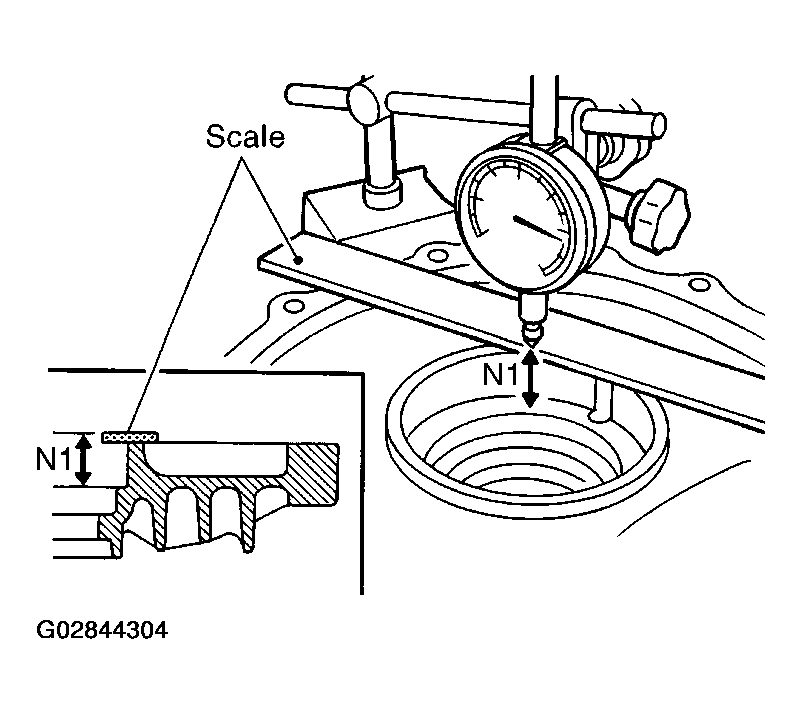

      Fig 4: Measuring Dimension "N1" Between Clutch Housing Case End Face And Mounting Face Of Adjusting Shim
      G02844304
    2. Install outer race onto differential side bearing on final gear side. Holding lightly the outer race horizontally by hand, rotate final gear five times or more (for smooth movement of bearing roller).
    3. Using dial gauge and scale as shown in the figure, measure dimension "N2" between differential side bearing outer race and transaxle case end face.

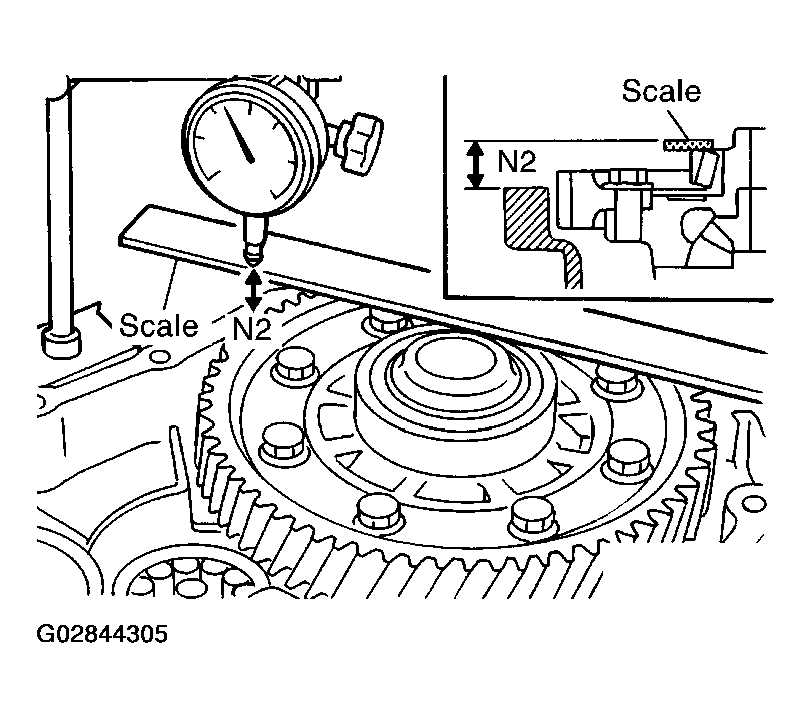

      Fig 5: Measuring Dimension "N2" Between Differential Side Bearing Outer Race And Transaxle Case End Face
      G02844305
  4. Install selected shim and bearing outer race.
    Fig 6: Installing Selected Shim And Bearing Outer Race
    G02844306
  5. Measure turning torque of final drive assembly.

    Turning torque of final drive assembly (New bearing): 2.9 - 6.9 N.m (30 - 70 kg-cm, 26 - 61 in-lb)

    • When old bearing is used again, turning torque will be slightly less than the above.
    • Make sure torque is close to the specified range.
    • Changes in turning torque of final drive assembly per revolution should be within 1.0 N.m (10 kg-cm, 8.7 in-lb) without binding.

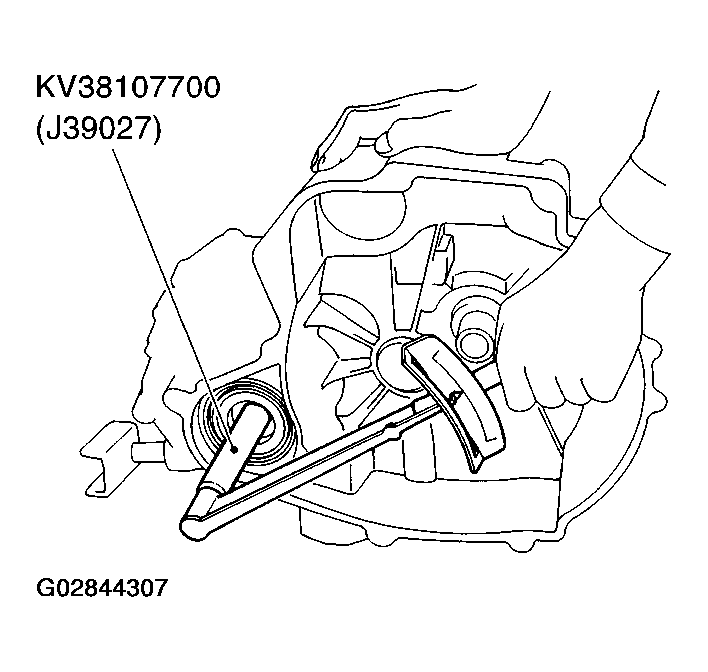

      Fig 7: Measuring Turning Torque Of Final Drive Assembly
      G02844307
  6. Calculate dimension "O" (thickness of adjusting shim) using the following procedure to satisfy specification of end play for input shaft rear bearing.

    End play: 0 - 0.06 mm (0 - 0.0024 in)

    Dimension "O" = (O1 - O2) + End play

    O: Thickness of adjusting shim

    O1: Distance between transaxle case end face and mounting face of adjusting shim

    O2: Distance between clutch housing case end face and end face of input shaft rear bearing

    Input shaft rear bearing adjusting shims:

    Refer to  SDS  , .

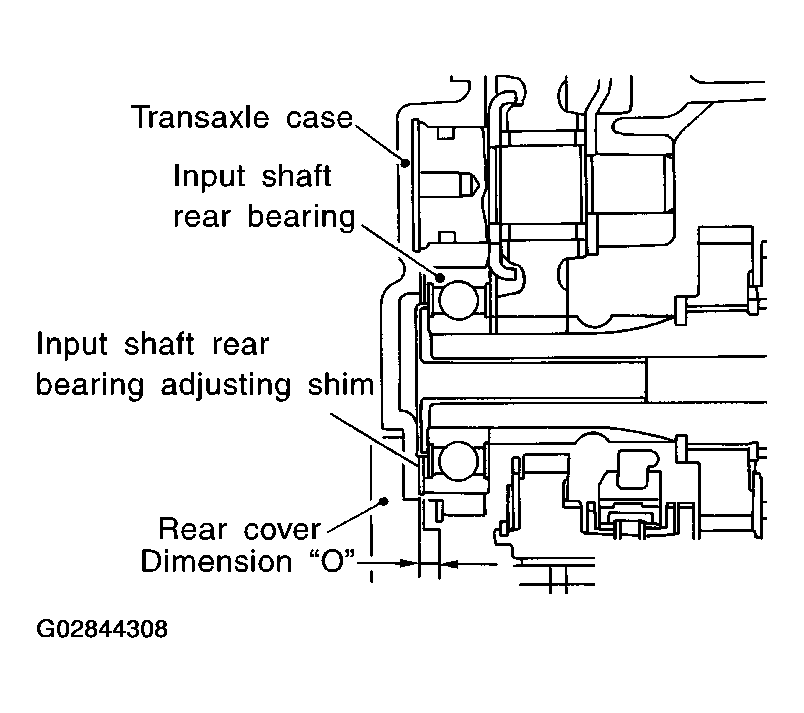

    Fig 8: Identifying Thickness Of Adjusting Shim
    G02844308
    1. Using block gauge, scale, and dial gauge, measure dimension "O1" between transaxle case end face and mounting face of adjusting shim.

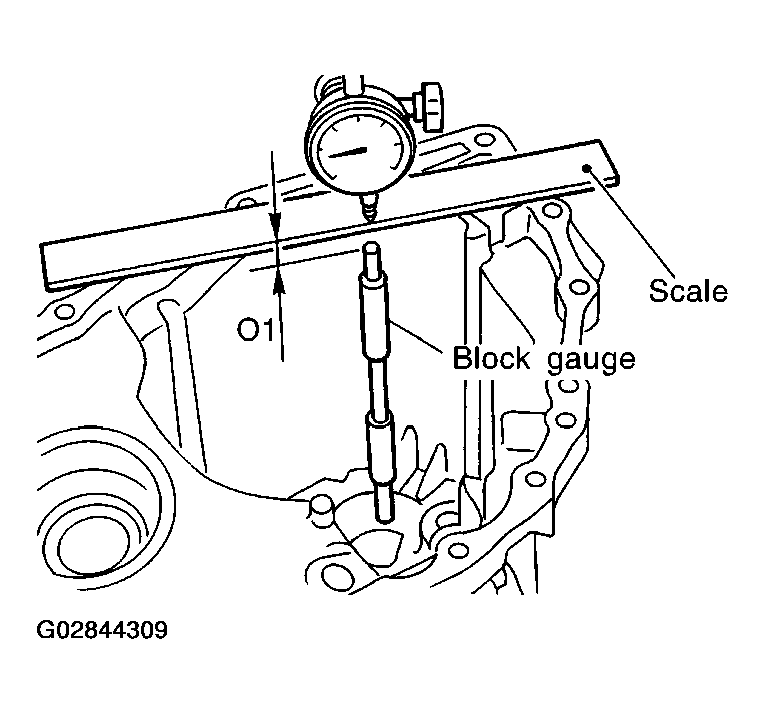

      Fig 9: Measuring Dimension "O1" Between Transaxle Case End Face And Mounting Face Of Adjusting Shim
      G02844309
    2. Using gauge block, scale, and dial gauge as shown in the figure, measure dimension "O2" between clutch housing case end face and end face of input shaft rear bearing.

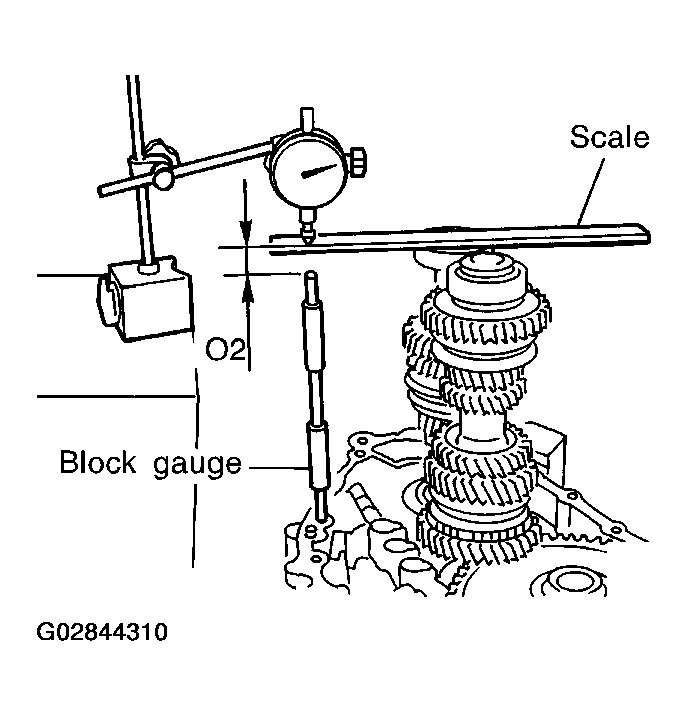

    7. Fig 10: Measuring Dimension "O2" Between Clutch Housing Case End Face And End Face Of Input Shaft Rear Bearing
    G02844310
  7. Install selected input shaft rear bearing adjusting shim onto input shaft.
  8. Install oil gutter into transaxle case.

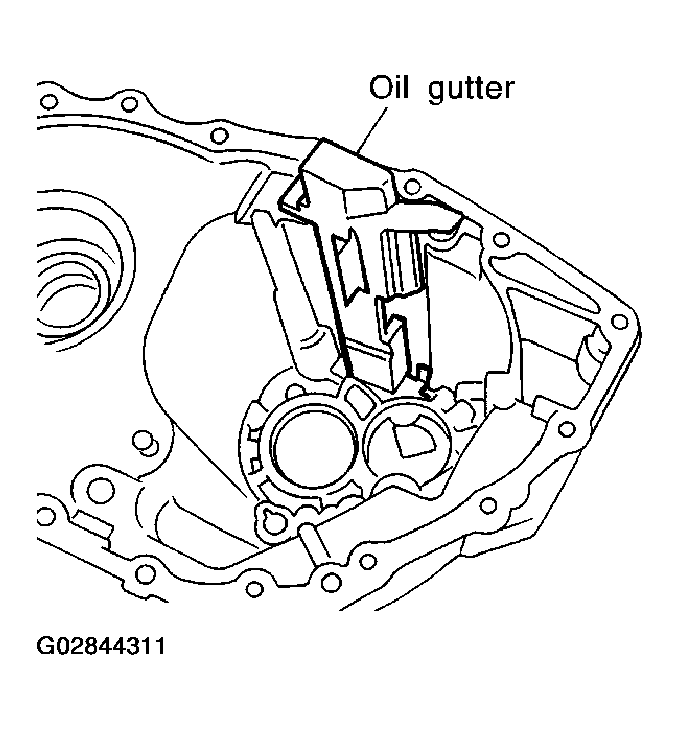

    Fig 11: Installing Oil Gutter Into Transaxle Case
    G02844311
  9. Install two magnets.

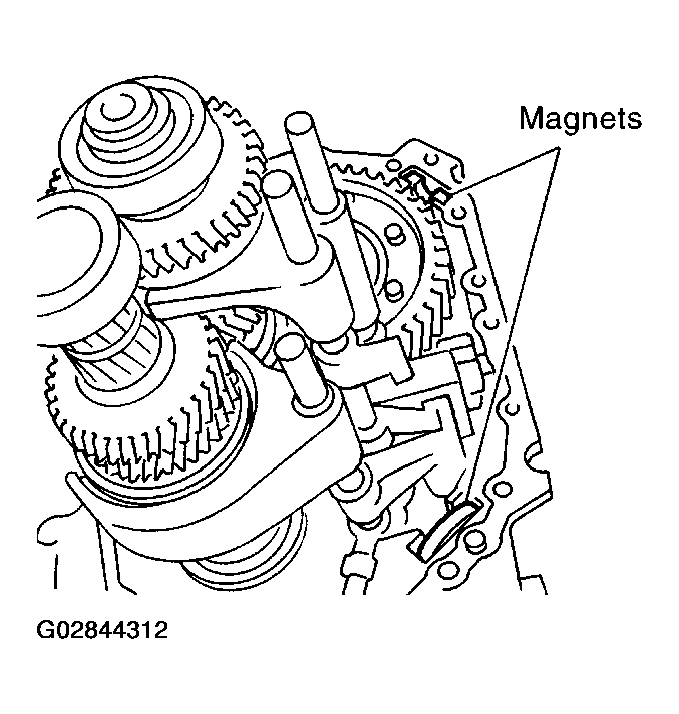

    Fig 12: Installing Magnets
    G02844312
  10. Clean mating surfaces of clutch housing and transaxle case. Check for cracks and damage. Then, apply Three Bond TB1215, Loctite Part No. 51813 or equivalent.

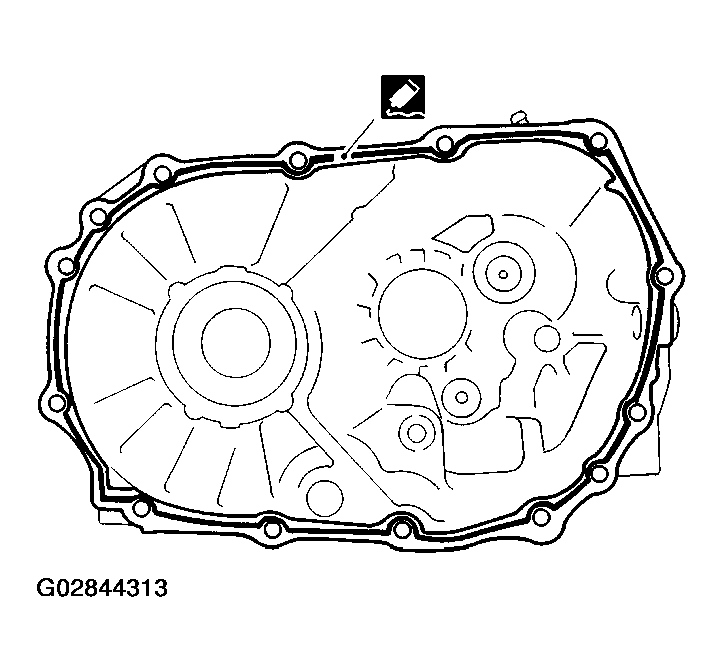

    Fig 13: Applying Sealant To Mating Surfaces Of Clutch Housing And Transaxle Case
    G02844313
  11. Install transaxle case onto clutch housing, and tighten mounting bolts with specified torque.

    Tightening torque:

    Refer to  CASE COMPONENTS   .

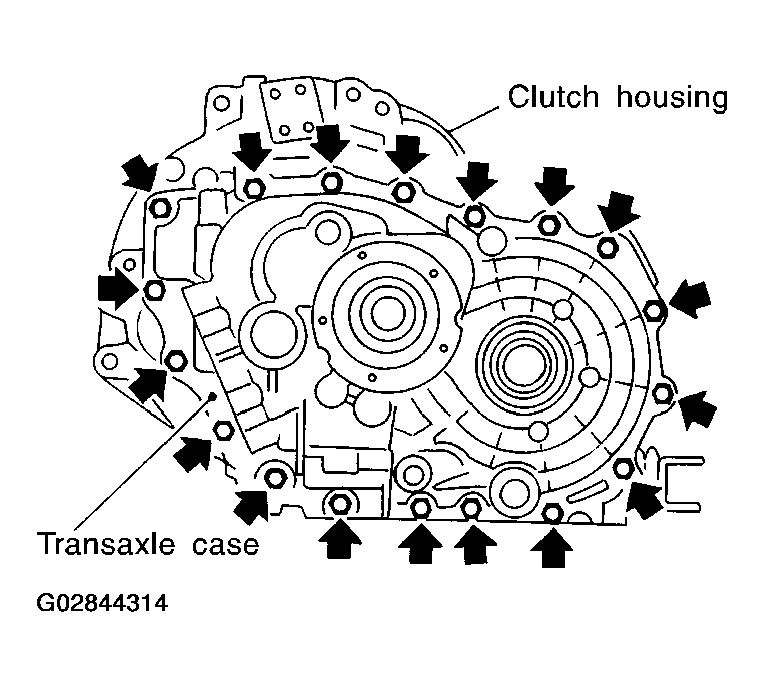

    Fig 14: Installing Transaxle Case Onto Clutch Housing
    G02844314
  12. Apply Three Bond TB1215, Loctite Part No. 51813 or equivalent to threads of reverse switch, PNP switch, and drain plug, and install them. (Fill the case with oil before installation of filler plug.)

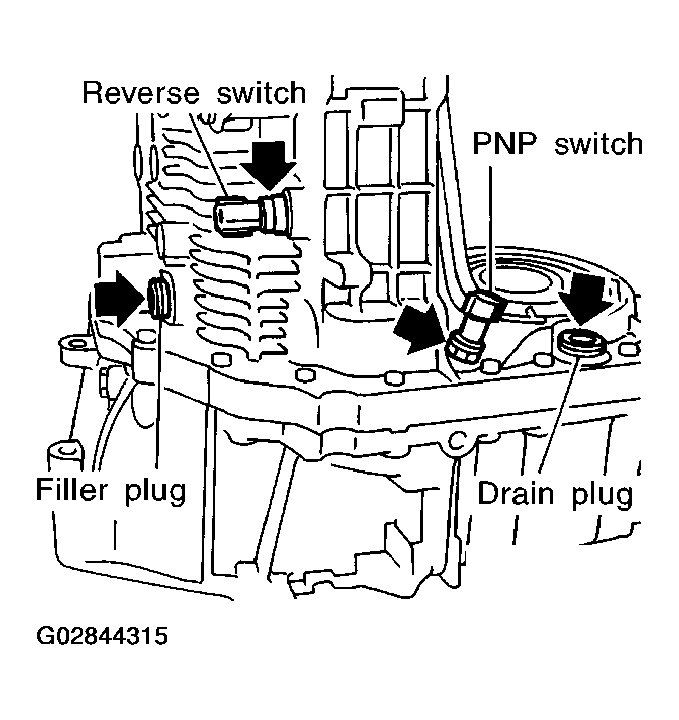

    13. Fig 15: Identifying Reverse Switch, PNP Switch, Drain Plug And Filler Plug
    G02844315
  13. Install speedometer pinion assembly.
    CAUTION: Do not reuse O-ring.
  14. Install check springs and check balls. Apply sealant to the thread on the check plug, and install it.

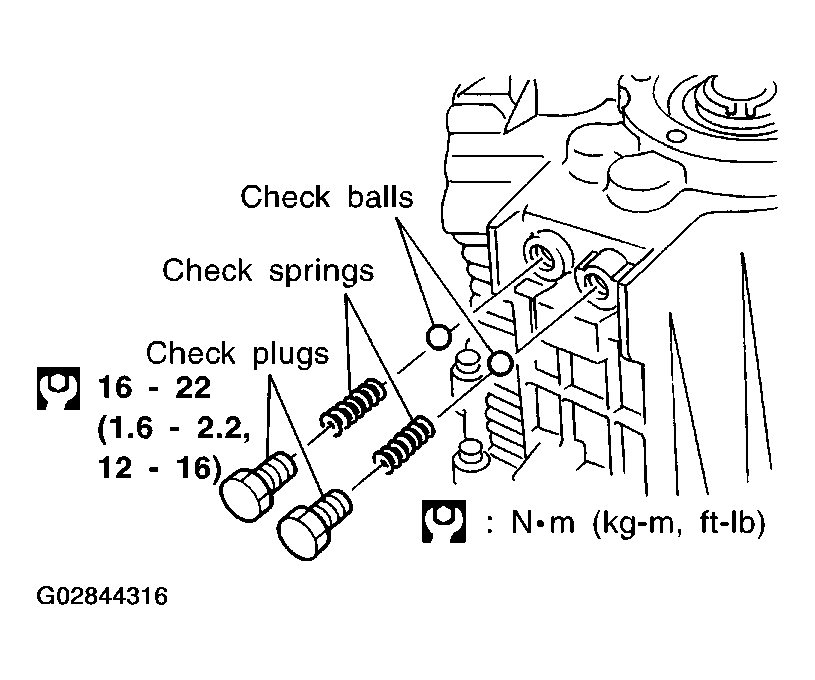

    Fig 16: Identifying Tightening Torque For Check Springs And Check Balls
    G02844316
  15. Calculate thickness of adjusting shim using the following procedure to satisfy specification of end play for mainshaft rear bearing.

    End play: 0 - 0.06 mm (0 - 0.0024 in)

    Dimension "P" = (P1 - P2) + End play

    P: Thickness of adjusting shim

    P1: Distance between transaxle case end face and mainshaft rear bearing

    P2: Distance between adjusting shim end face of rear cover and transaxle mounting face

    Mainshaft rear bearing adjusting shims:

    Refer to  SDS  , .

    Fig 17: Identifying Thickness Of Adjusting Shim
    G02844317
    1. Using dial gauge as shown in the figure, measure dimension "P1" between transaxle case end face and mainshaft rear bearing.

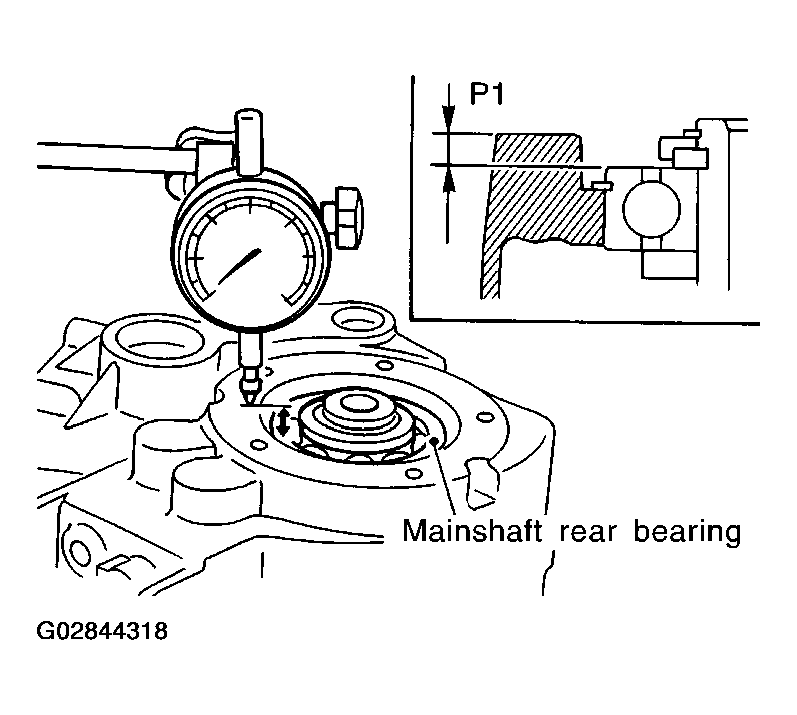

      Fig 18: Measuring Dimension "P1" Between Transaxle Case End Face And Mainshaft Rear Bearing
      G02844318
    2. Using dial gauge as shown in the figure, measure dimension "P2" between adjusting shim mounting face of rear cover and transaxle mounting face.
      Fig 19: Measuring Dimension "P2" Between Adjusting Shim Mounting Face Of Rear Cover And Transaxle Mounting Face
      G02844319
  16. Using snap ring pliers as shown in the figure, install snap ring.
    CAUTION: Do not reuse snap ring.

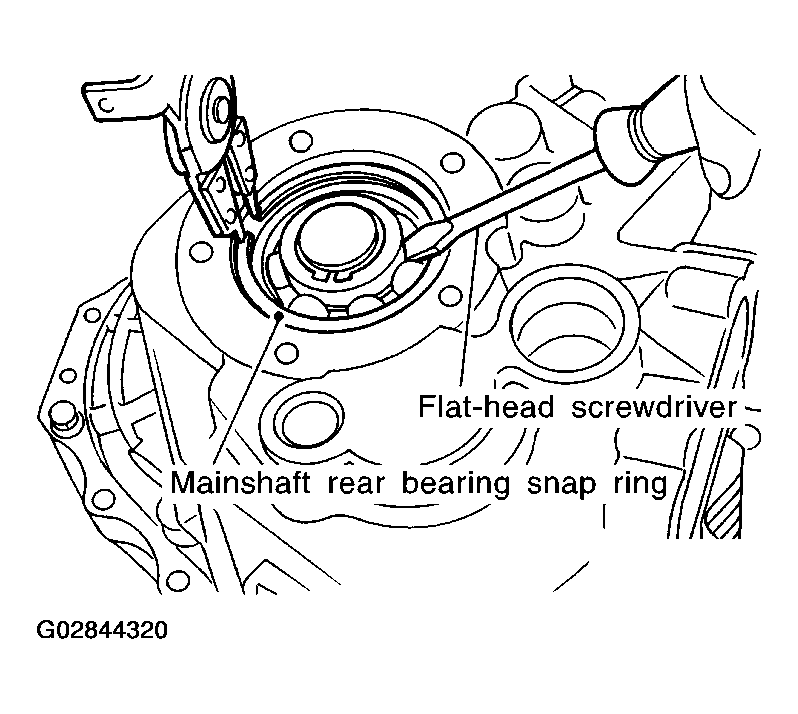

    17. Fig 20: Installing Snap Ring
    G02844320
  17. Install selected mainshaft adjusting shim.
  18. Install reverse idler gear, O-ring, thrust washers (front, rear), and bearing onto reverse idler shaft.
    19. Fig 21: Installing Reverse Idler Gear, O-Ring, Thrust Washers (Front, Rear), And Bearing Onto Reverse Idler Shaft
    G02844321
  19. Install snap ring into transaxle case using snap ring pliers.
    CAUTION:
    • Do not reuse snap ring.
    • Do not reuse O-ring.
    • Before installation, apply gear oil to O-ring.
  20. Using feeler gauge, measure the end play of snap ring, and select a snap ring suitable to satisfy the following specification.

    End play:

    0.05 - 0.25 mm (0.0020 - 0.0098 in)

    Available snap ring:

    Refer to  SDS  , .

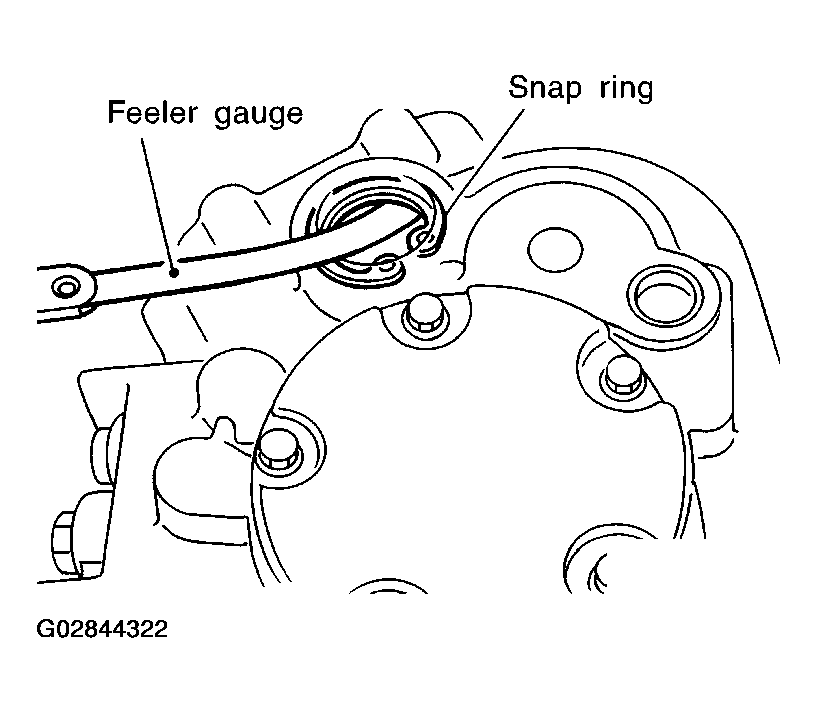

    Fig 22: Measuring End Play Of Snap Ring
    G02844322
  21. Install selected snap ring.
    CAUTION: Do not reuse snap ring.

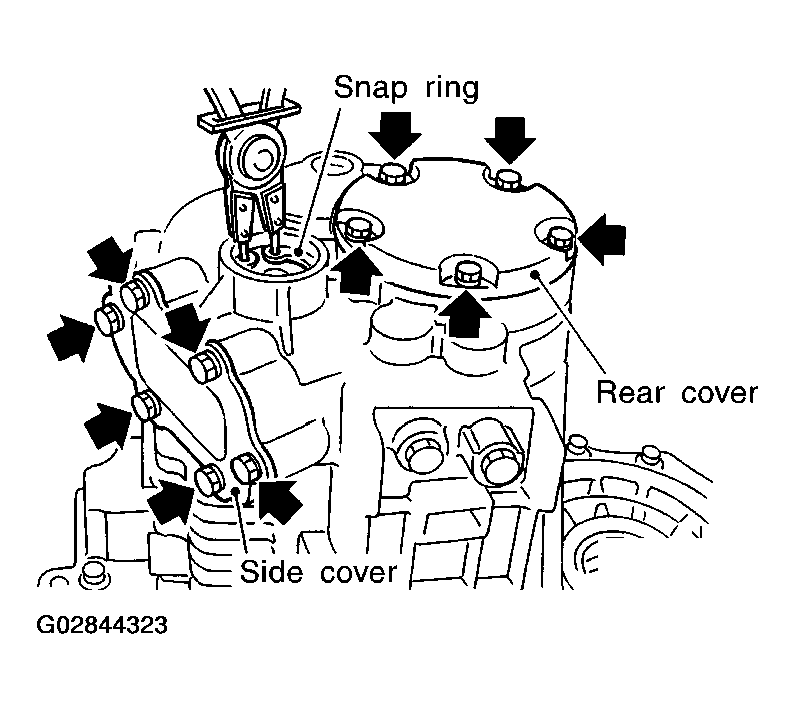

    22. Fig 23: Installing Snap Ring
    G02844323
  22. Apply gear oil to rear cover O-ring, and install rear cover, side cover gasket, and side cover. Then tighten mounting bolts with specified torque.

    Tightening torque:

    Refer to  CASE COMPONENTS   .

    CAUTION: Do not reuse mounting bolts for rear cover and side cover.
