Function and System Application

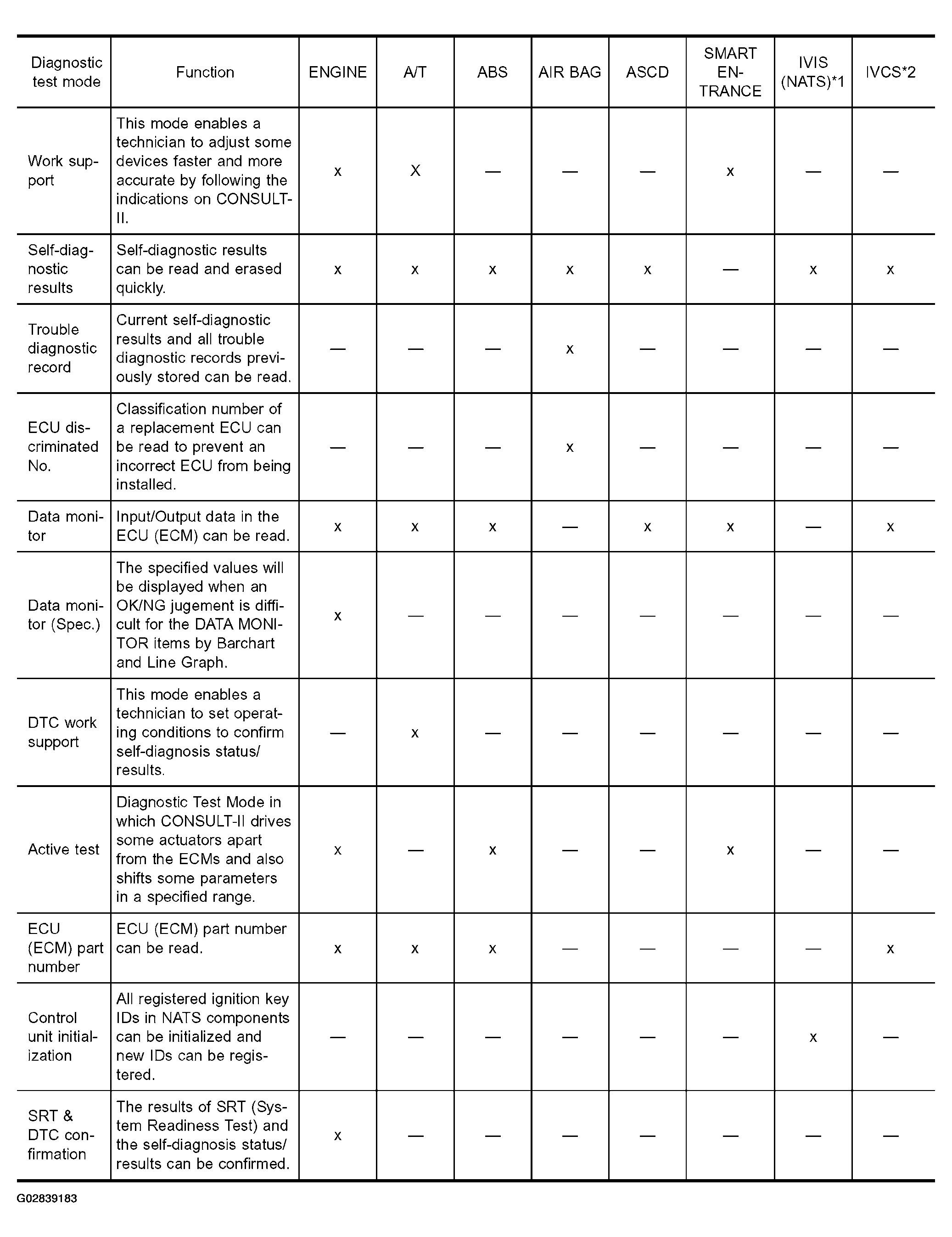

Fig 1: Function And System Application Consult-II Checking Chart (1 Of 2)

G02839183

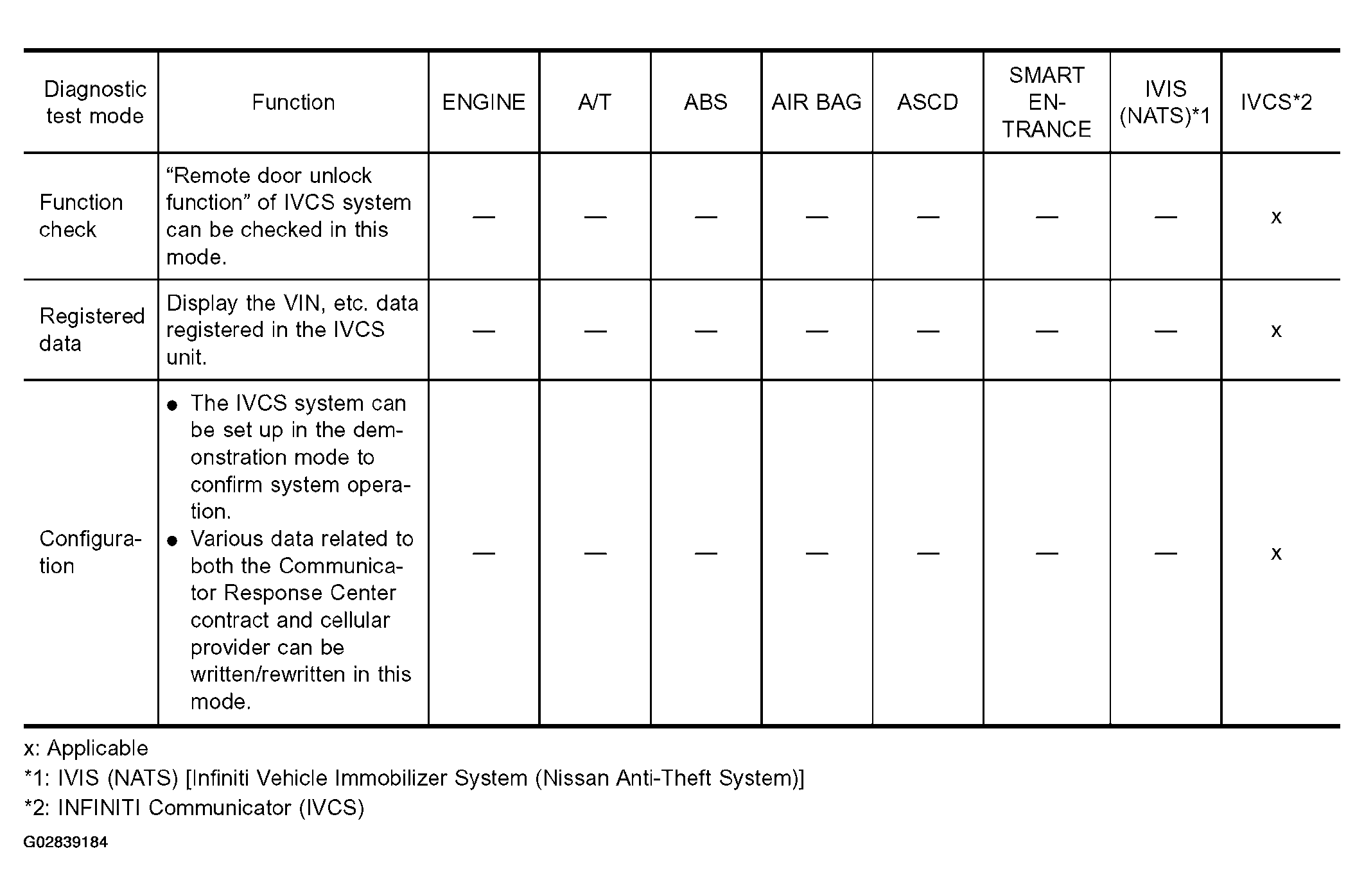

Fig 2: Function And System Application Consult-II Checking Chart (2 Of 2)

G02839184
