Home › Infiniti › 2001 › I30 Base, RE4F04B › Repair and Diagnosis › Body & Frame › Power Windows › Schematic

Power Windows: Schematic

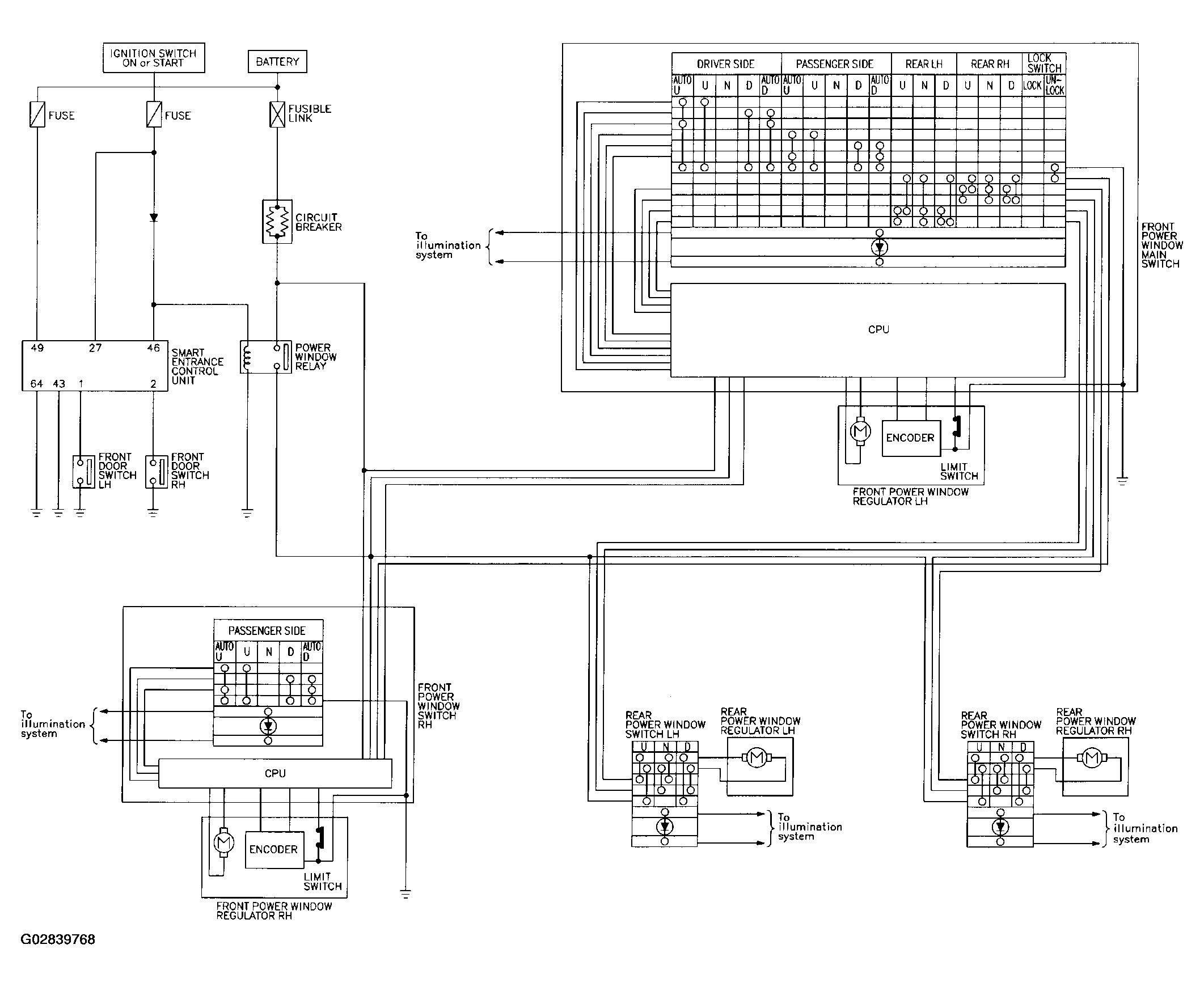

Fig 1: Power Window Schematic Diagram
G02839768
