Malfunction Code/Symptom Chart

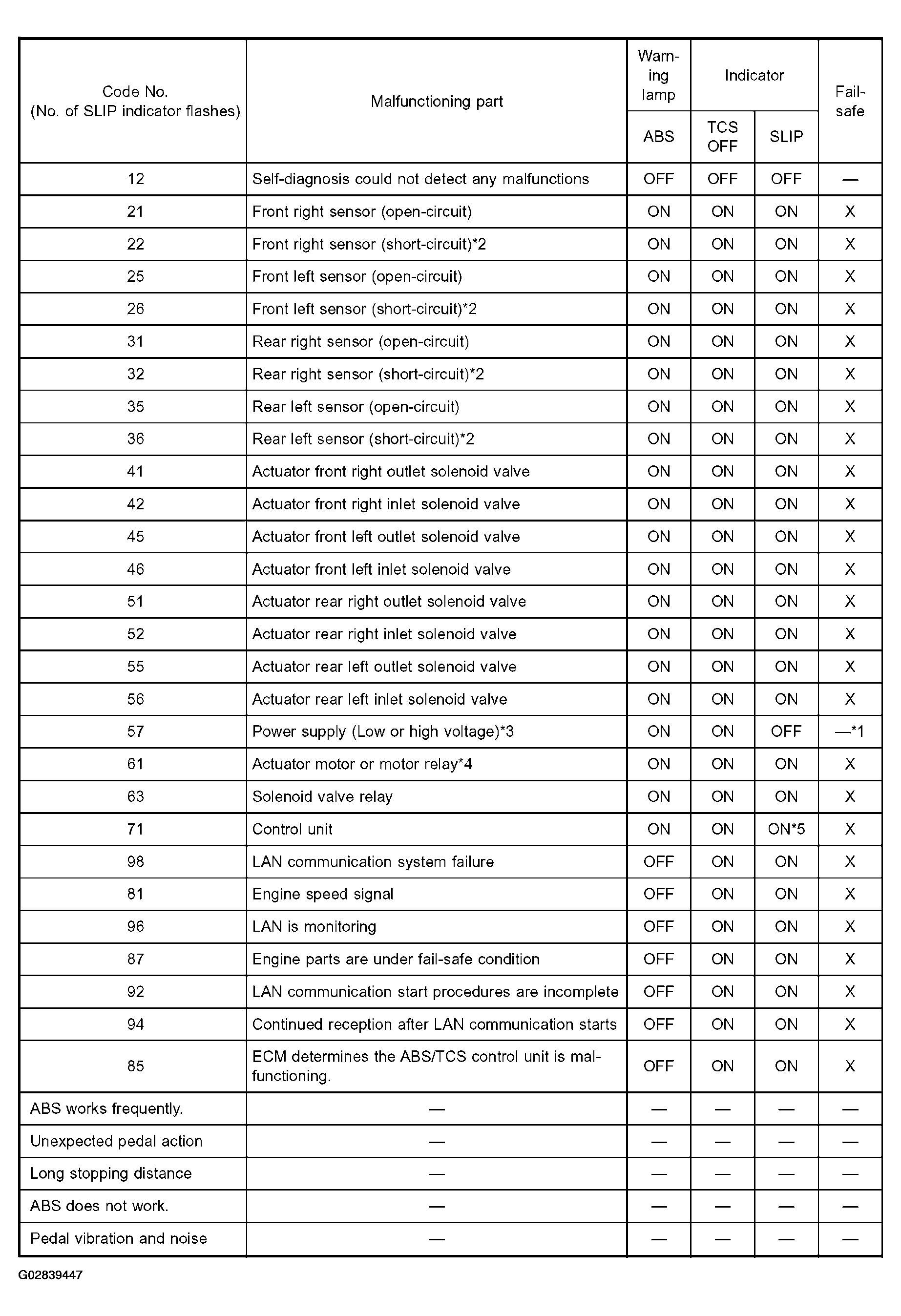

Fig 1: Malfunction Code/Symptom Chart (1 Of 2)

G02839447

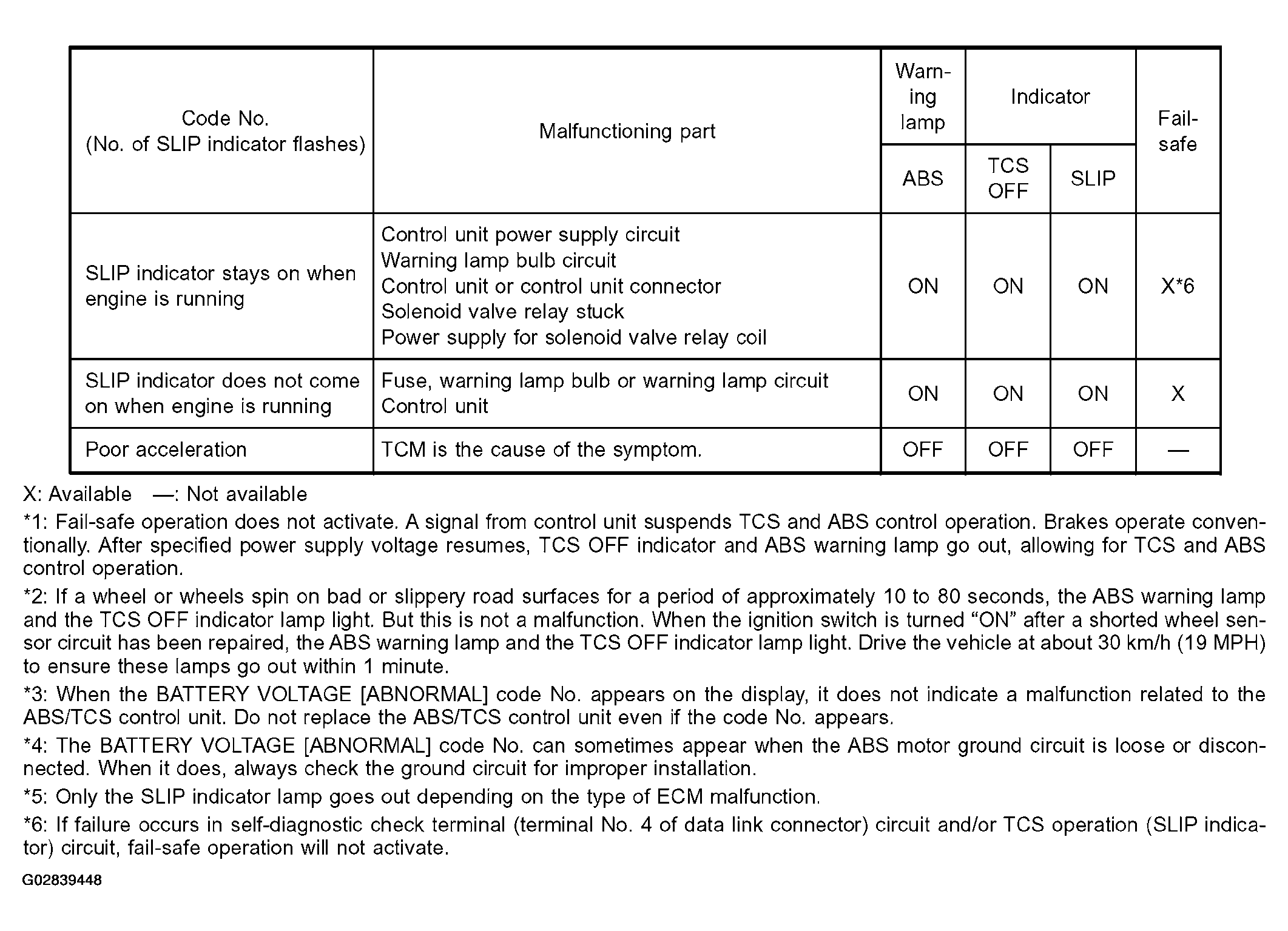

Fig 2: Malfunction Code/Symptom Chart (2 Of 2)

G02839448
