"Display Auto Open" Mode

  1. Start the engine.
  2. Push "OPEN/CLOSE" switch and then open the display.
  3. Push "SETTING" switch.
  4. Select "System Setting".

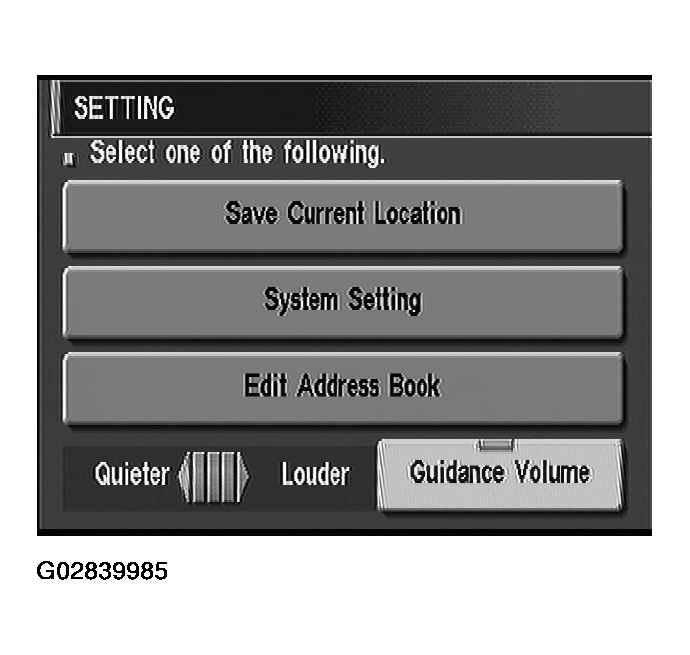

    Fig 1: Displaying Auto Open
    G02839985
  5. Select "Display Auto Open".

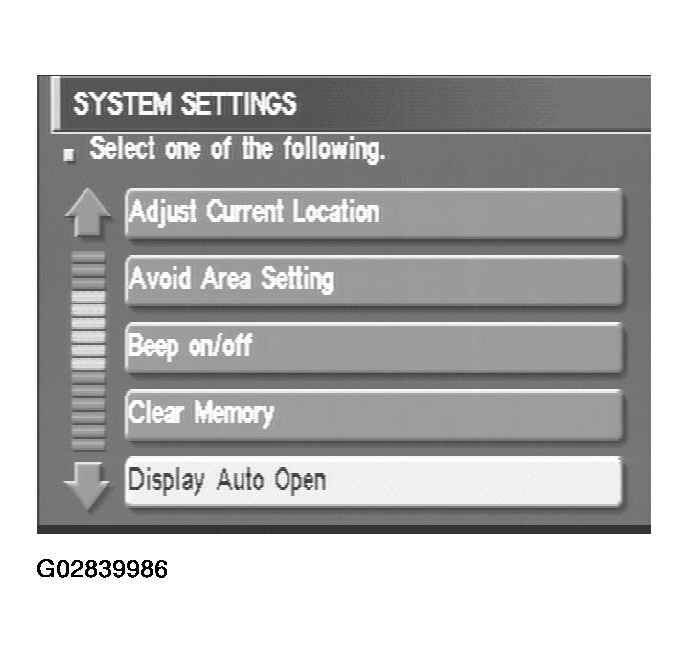

    Fig 2: Displaying Select Display Auto Open
    G02839986
  6. Select "Auto" or "Manual" icon.

    To manually open the display, select "Manual".

    To automatically open the display, select "Auto".

  7. Push "MAP" switch, then the display will go back to the current location map.

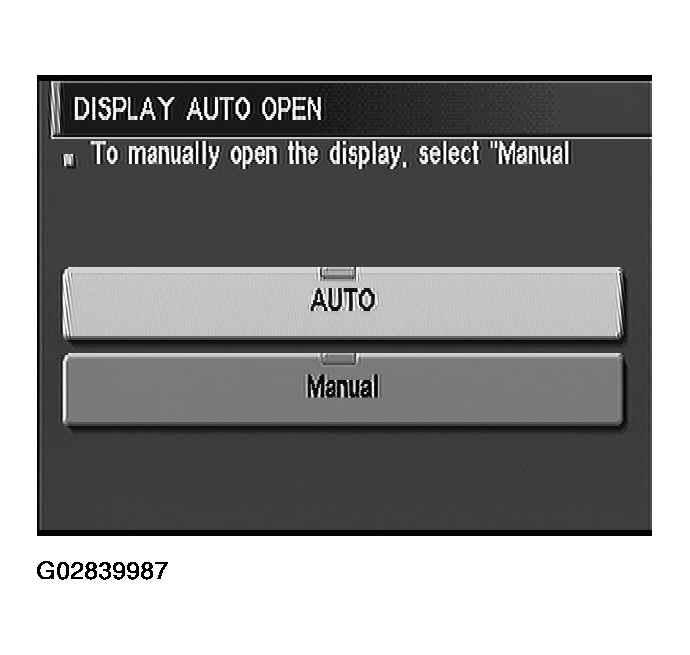

    Fig 3: Displaying Select Auto Or Manual Icon
    G02839987
