"Tracking" Mode

  1. Start the engine.
  2. Push "OPEN/CLOSE" switch and then open the display.
  3. Push "SETTING" switch.
  4. Select "System Setting".
  5. Select "Tracking".

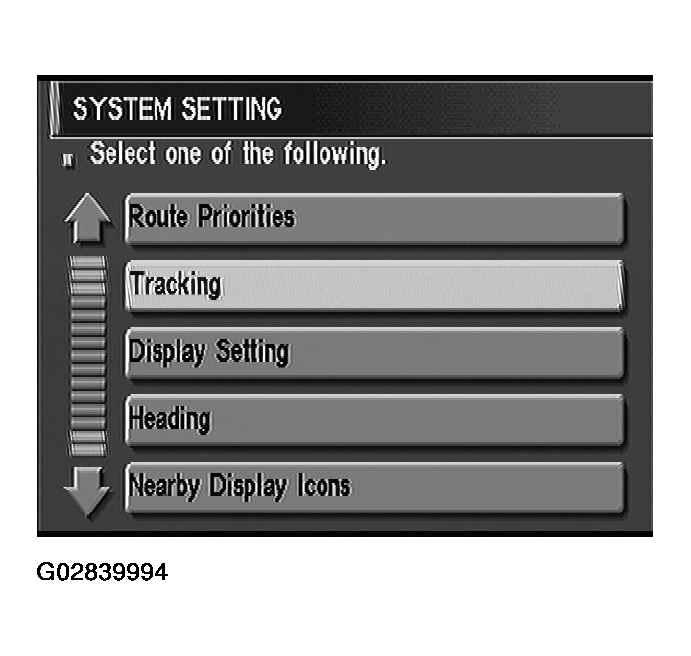

    Fig 1: Displaying TRACKING Mode
    G02839994
  6. Select "On" or "Off" icon.

    To leave no trail on the map, select "Off".

    To leave a trail in the map, select "On".

  7. Push "MAP" switch, then the display will go back to the current location map.
NOTE: When a trail display is turned OFF, trail data is erased from the memory.

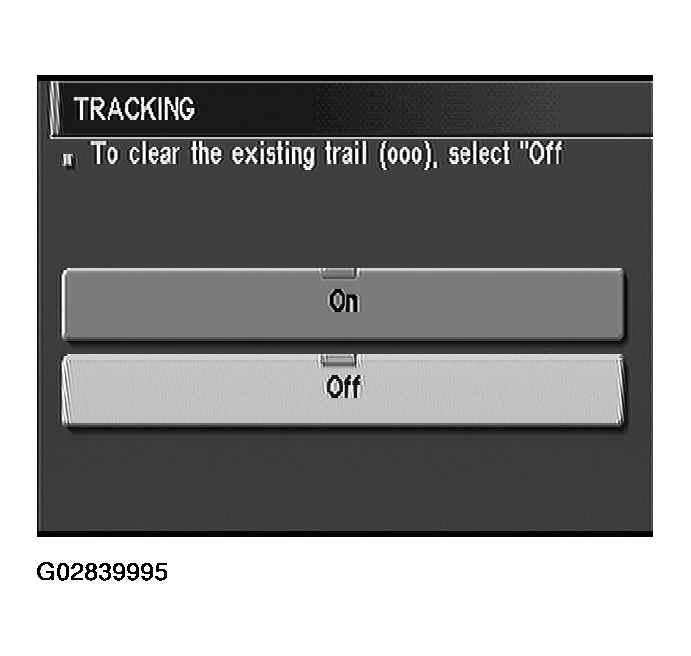

Fig 2: Displaying Select On Or Off Icon
G02839995
