Map Display

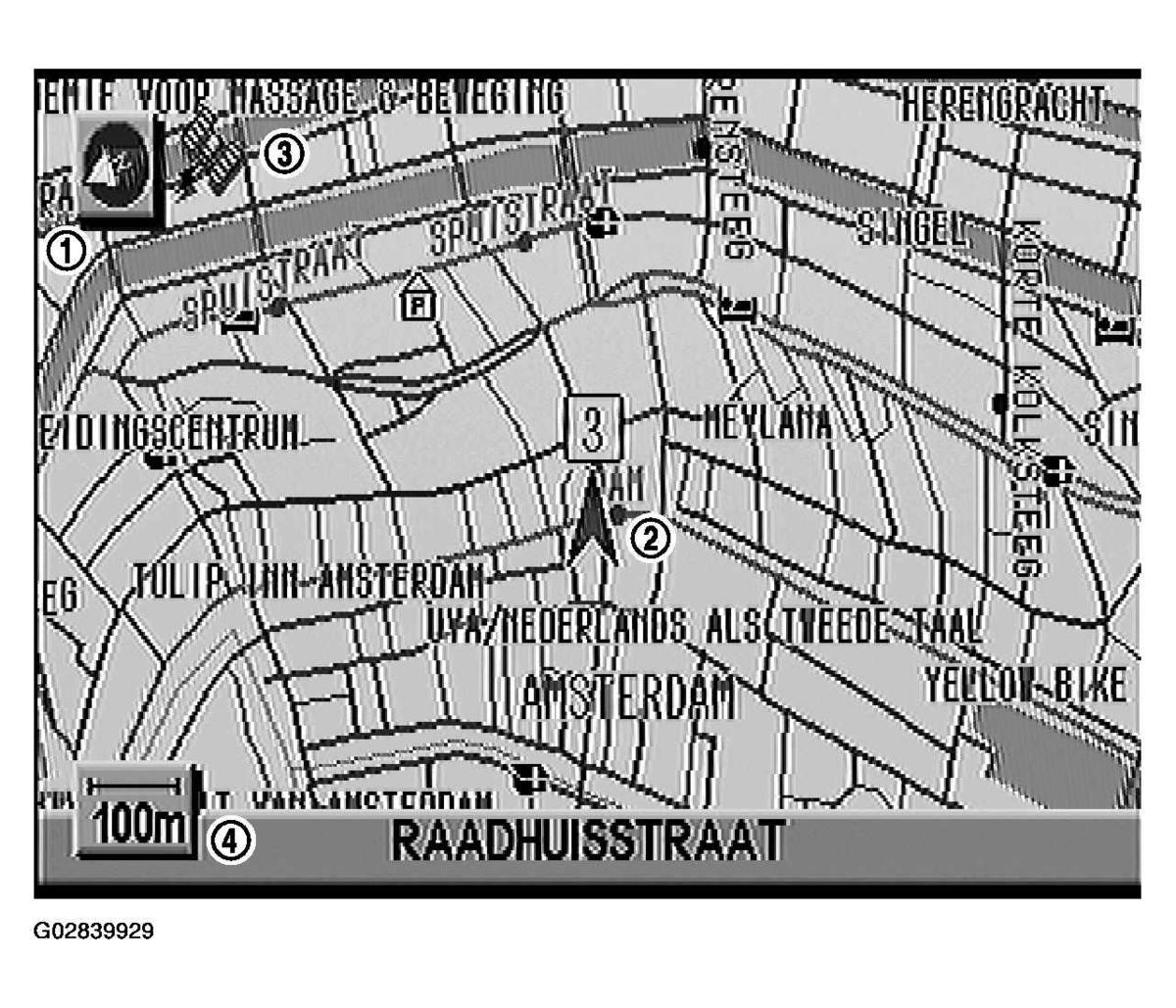

Fig 1: Distance Display

Function of each icon is as follows:

1. Azimuth indication
2. Position marker

   The tip of the arrow shows the current position. The shaft of the arrow indicates the direction in which the vehicle is traveling.

3. GPS reception signal (indicates current reception conditions)
4. Distance display (shows the distance in a reduced scale)
