Home › Infiniti › 2001 › I30 Base, RE4F04W › Repair and Diagnosis › Accessories & Equipment › Communication Devices › Navigation System › Precautions › Schematic

Navigation System: Precautions: Schematic

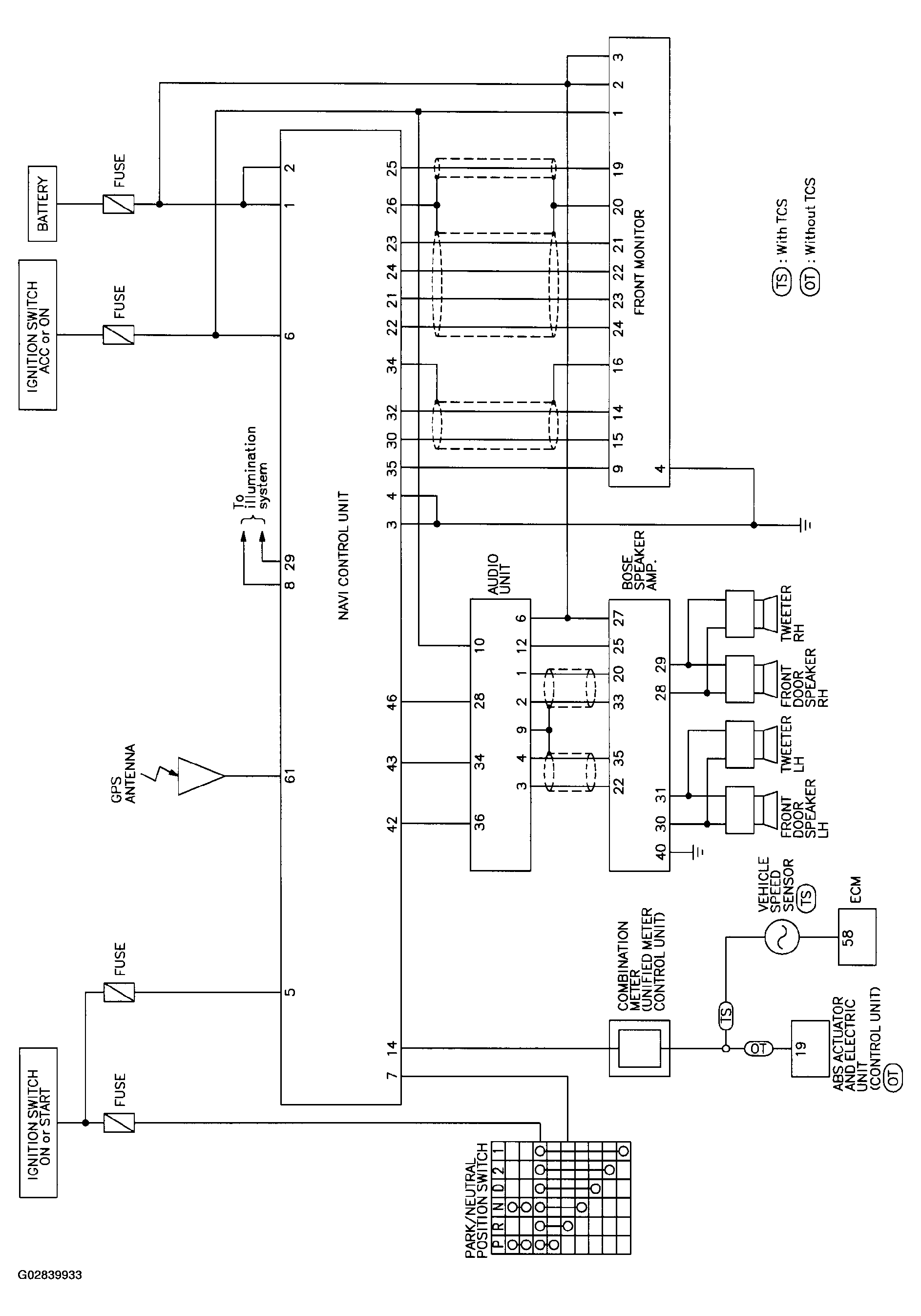

Fig 1: Navigation System Schematic Diagram
G02839933
