Consult-II Inspection Procedure: Notes

Turn the ignition switch "OFF".

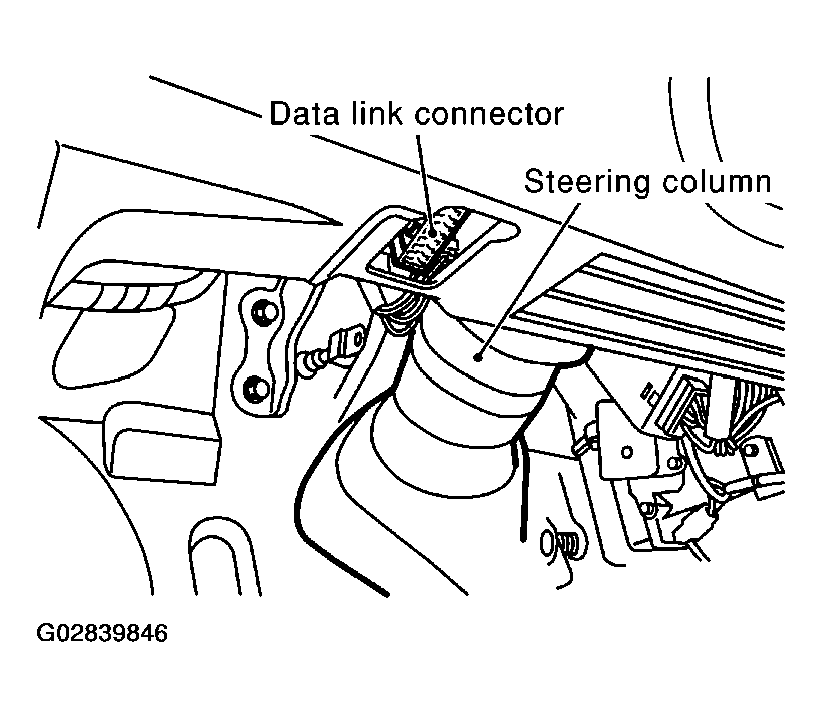

Connect "CONSULT-II" to the data link connector.

Fig 1: Connecting CONSULT-II To Data Link Connector
Turn ignition switch "ON".
Touch "START".

Fig 2: Displaying Start
Touch "SMART ENTRANCE".

Fig 3: Displaying Smart Entrance
Perform each diagnostic item according to "DIAGNOSTIC ITEMS APPLICATION ".

Fig 4: Displaying Select Test Item
