Control Unit Ground

Check resistance between the terminals and ground.

  1. Resistance: 0ohm

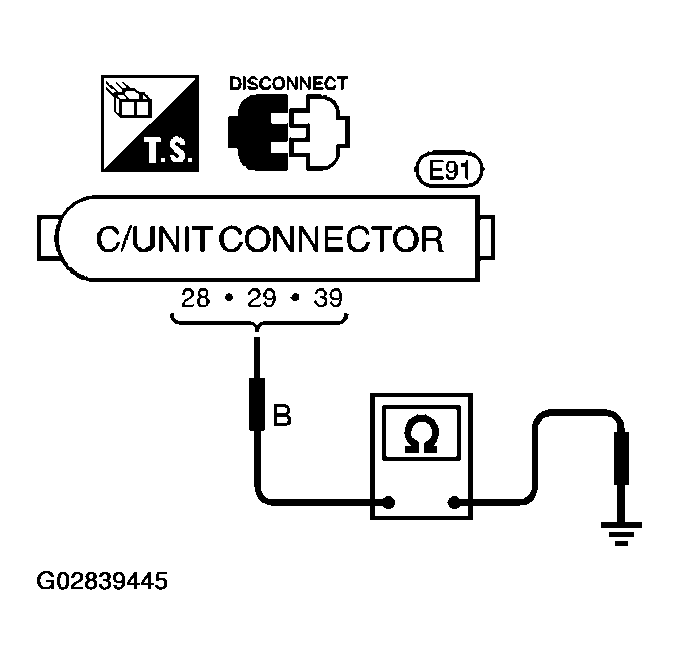

    Fig 1: Checking Resistance Between The Terminals And Ground
    G02839445
