Brightness Setting

  1. Start the engine.
  2. Push "MAP" switch.
  3. Touch "Setting".
  4. Touch "System Setting".
  5. Touch "Display Setting".
  6. Touch "Bright" or "Dark" to adjust the brightness of display.
  7. Touch "Previous".
NOTE: Display brightness can be adjusted independently when lighting switch is turned on and off.

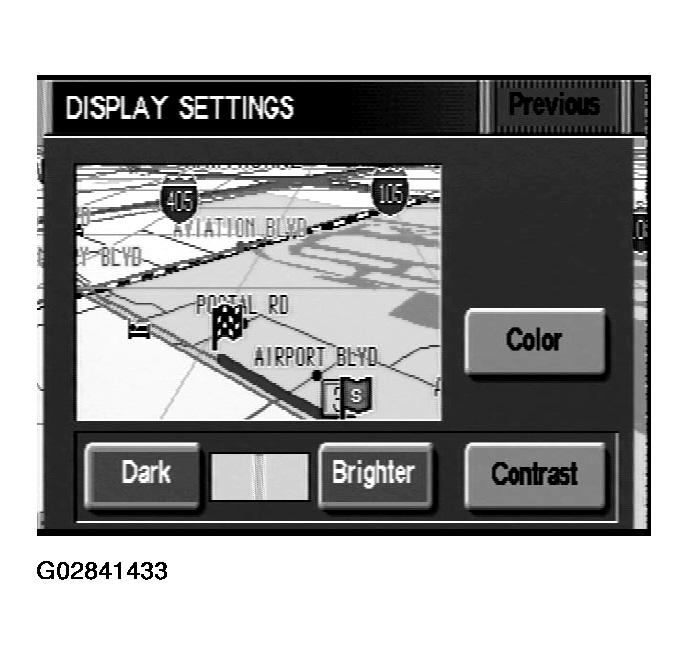

Fig 1: System Setting Display
G02841433
