Active Test Procedure

When conducting Active test, vehicle must be stationary.
When ABS warning lamp stays on, never conduct Active test.

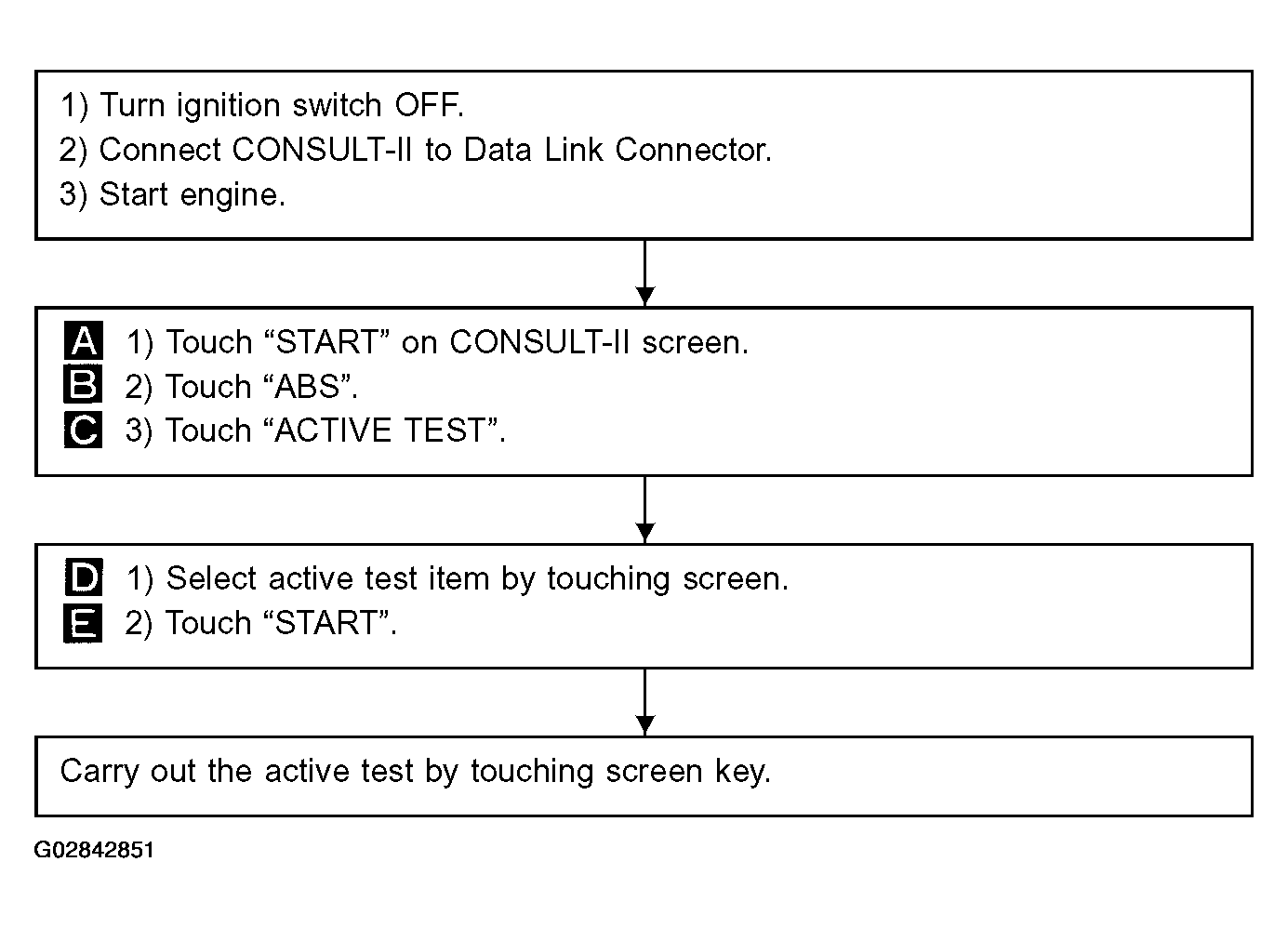

Fig 1: Active Test Procedure Flow Chart

Fig 2: CONSULT-II Display - Touch START

Fig 3: CONSULT-II Display - Touch ABS

Fig 4: CONSULT-II Display - Touch ACTIVE TEST

Fig 5: CONSULT-II Display - Touch SELECT TEST ITEM

Fig 6: CONSULT-II Display - Touch START
