Consult-II Inspection Procedure For Abs/TCS Control Unit
›
Data Monitor Mode
Data Monitor Mode

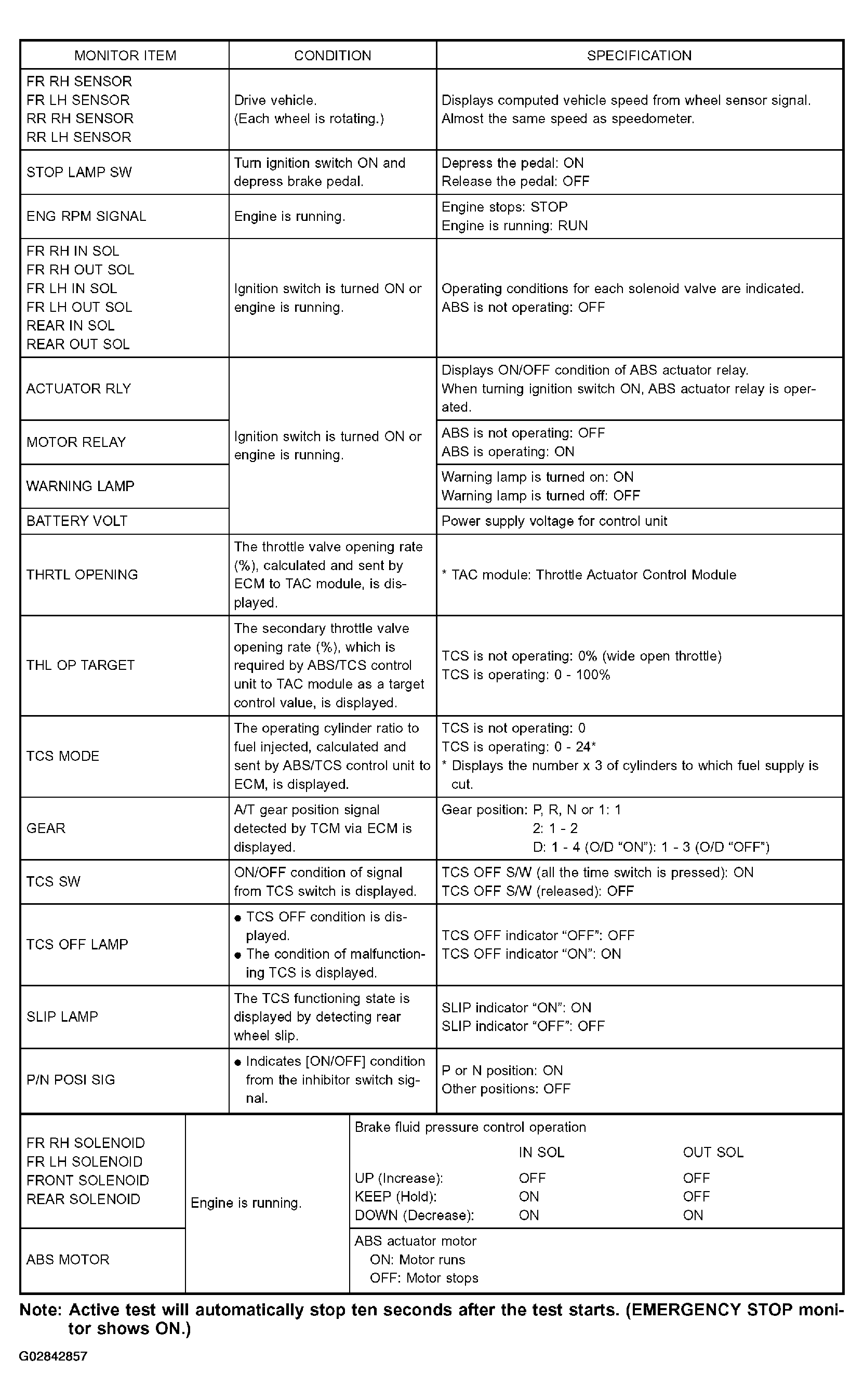

Fig 1: Data Monitor And Active Test Mode Chart
