Consult-II Inspection Procedure For Abs/TCS Control Unit
›
Self-Diagnostic Results Mode
Self-Diagnostic Results Mode

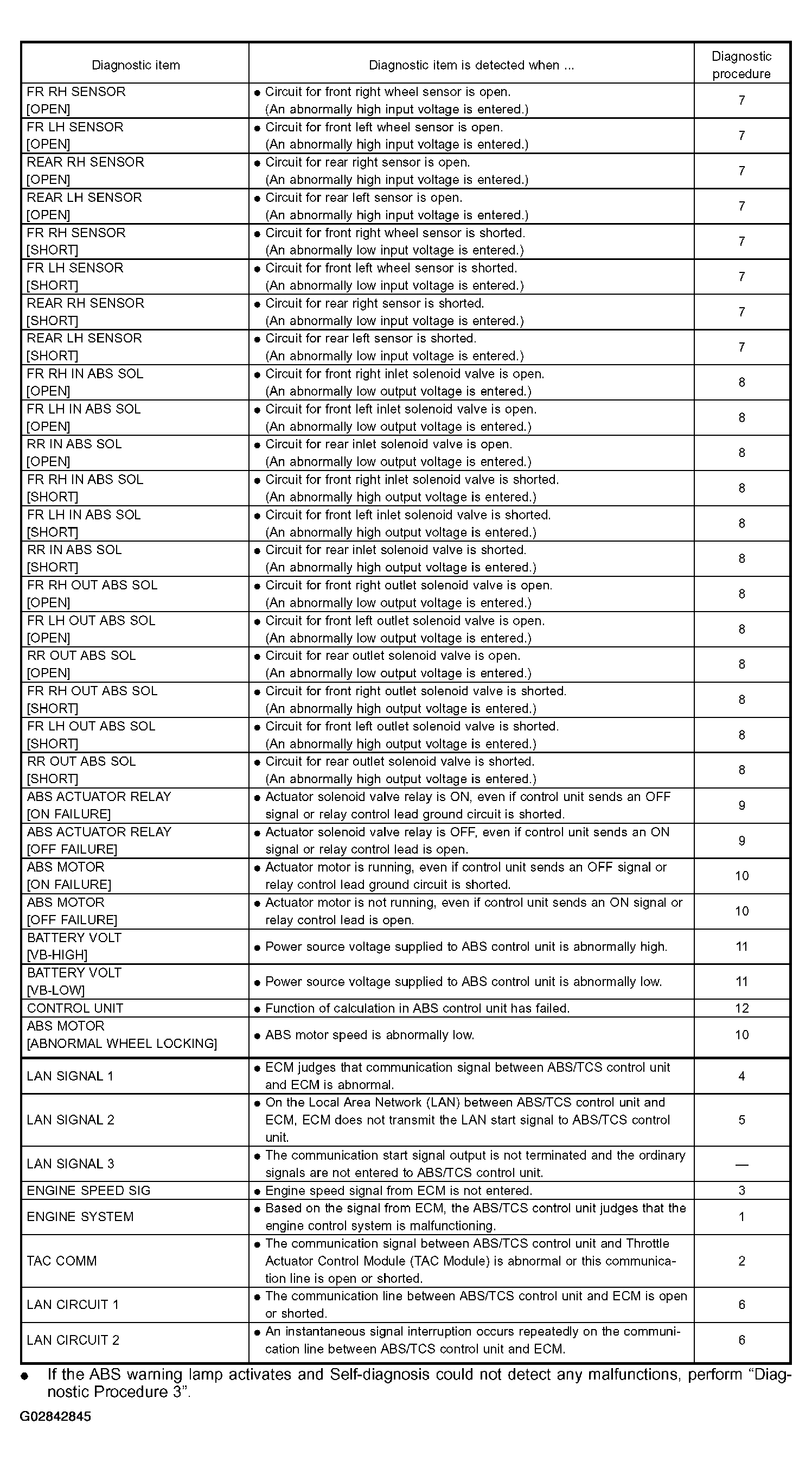

Fig 1: Self-Diagnostic Results Mode Chart
If the ABS warning lamp activates and Self-Diagnosis could not detect any malfunctions, perform
DIAGNOSTIC PROCEDURE 3 (ENGINE SPEED SIGNAL)
.
