Abs Actuator Motor Ground

Check resistance between actuator motor earth terminal and body ground.
Resistance: approximately OΩ

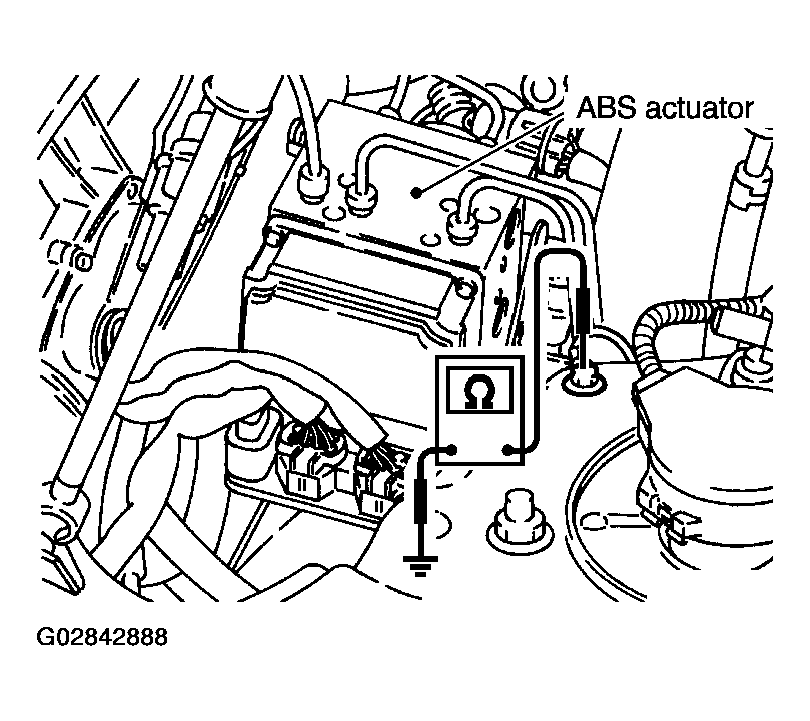

Fig 1: Testing Actuator Ground Circuit
