Self-Diagnosis Procedure

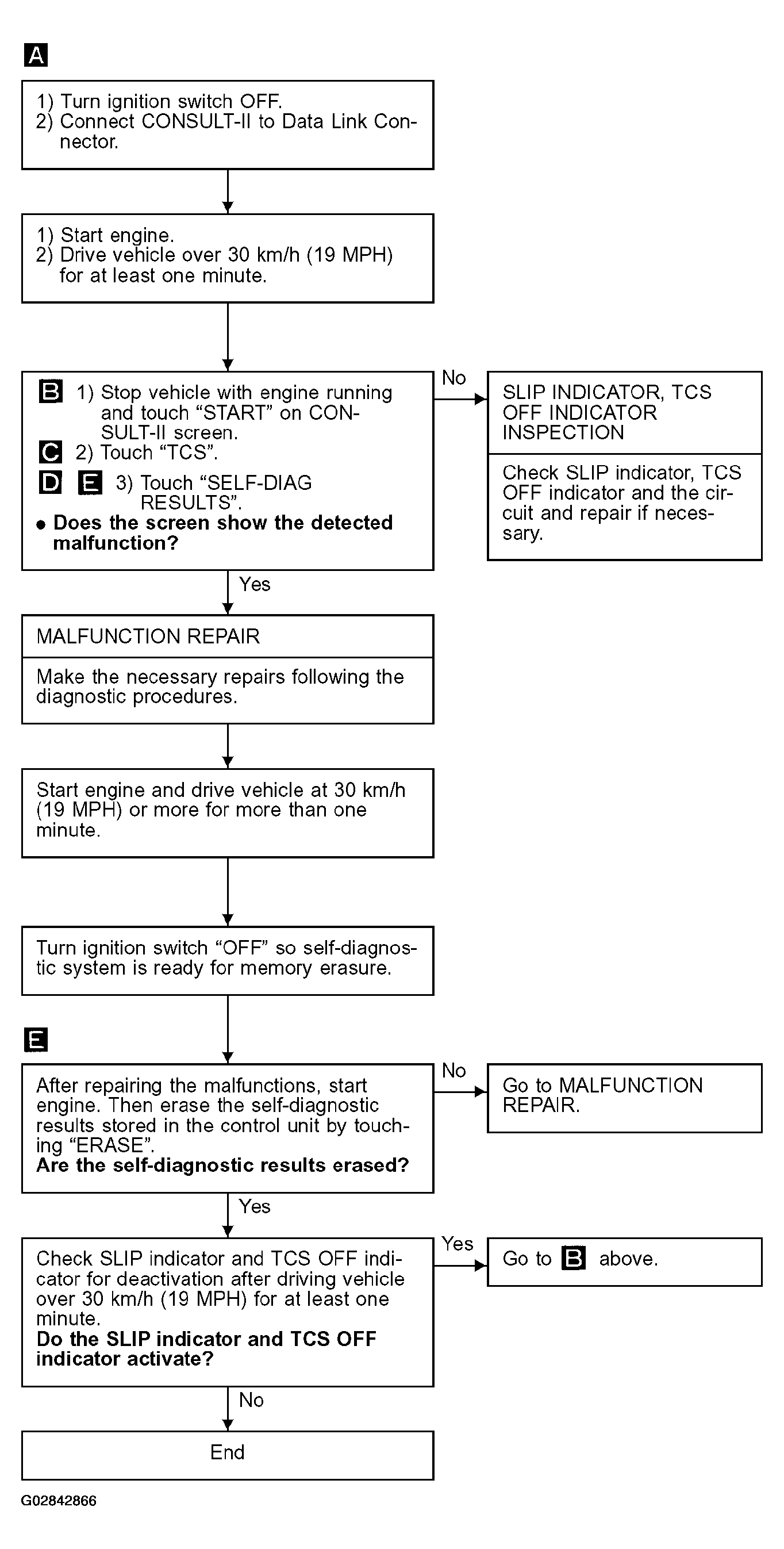

Fig 1: Self-Diagnosis Procedure Flow Chart

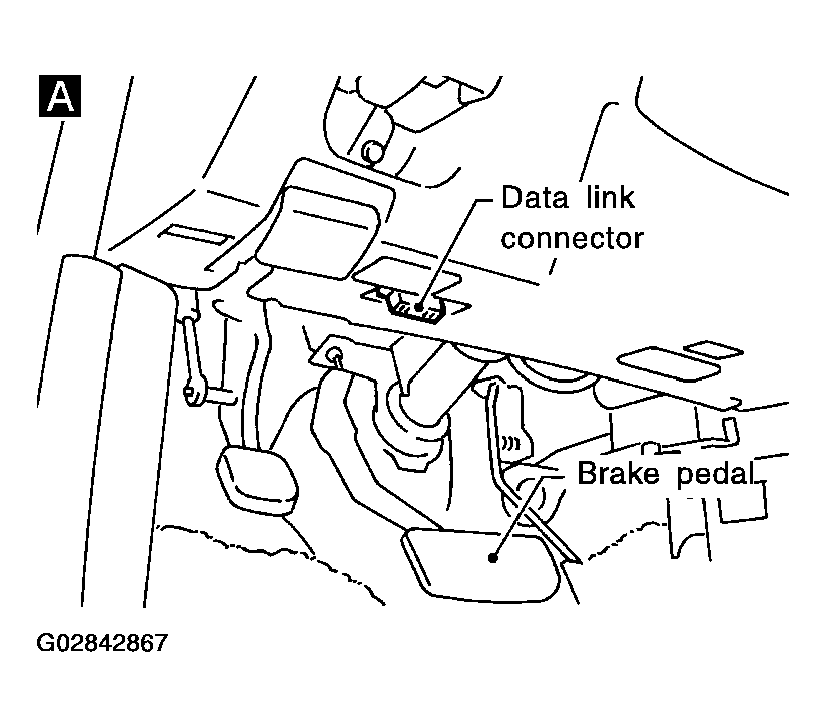

Fig 2: Connecting CONSULT-II To Data Link Connector

Fig 3: CONSULT-II Display - Touch START

Fig 4: CONSULT-II Display - Touch TCS

Fig 5: CONSULT-II Display - Touch SELF-DIAG RESULTS (1 Of 2)

Fig 6: CONSULT-II Display - Touch SELF-DIAG RESULTS (2 Of 2)

NOTE: SELF-DIAG RESULTS screen shows the detected malfunction and the times of ignition switch ON and OFF after it occurred.
