Inspection Of Abs/TCS Control Unit
›
ABS/TCS control unit inspection table
ABS/TCS control unit inspection table

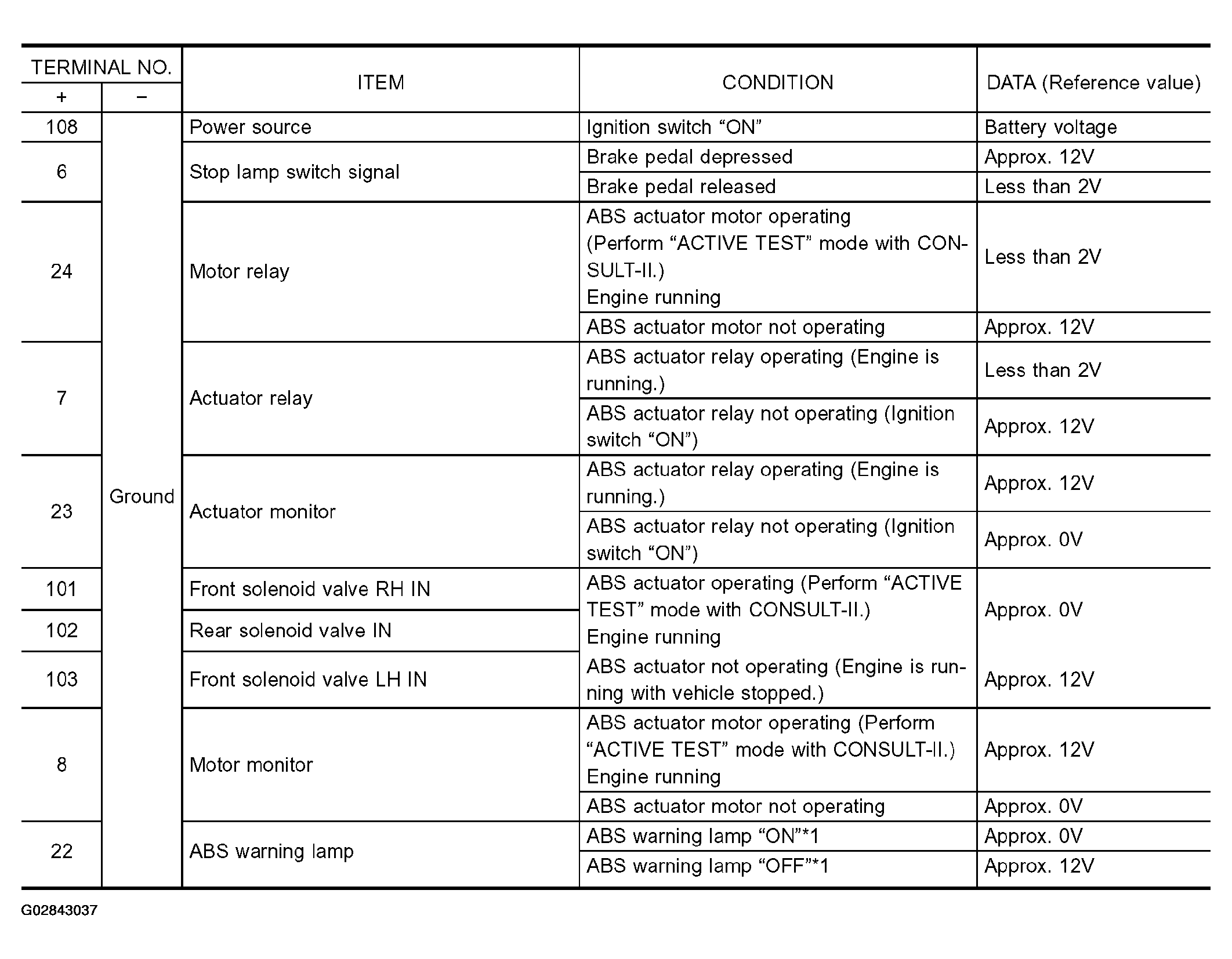

Fig 1: ABS/TCS Control Unit Terminal Specifications (1 Of 2)

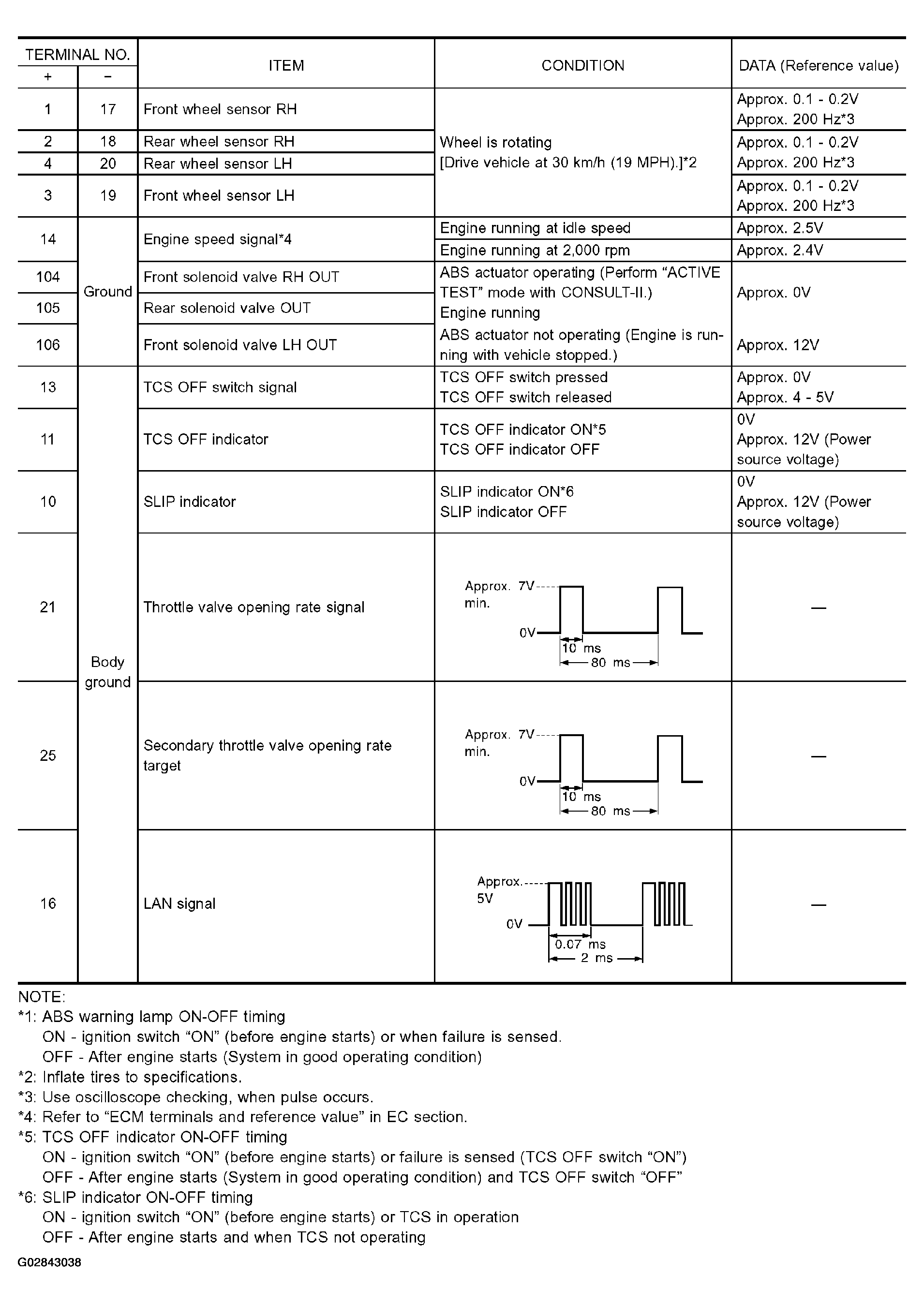

Fig 2: ABS/TCS Control Unit Terminal Specifications (2 Of 2)
