Electrical Component Inspection
›
Inspection Of TAC Module
›

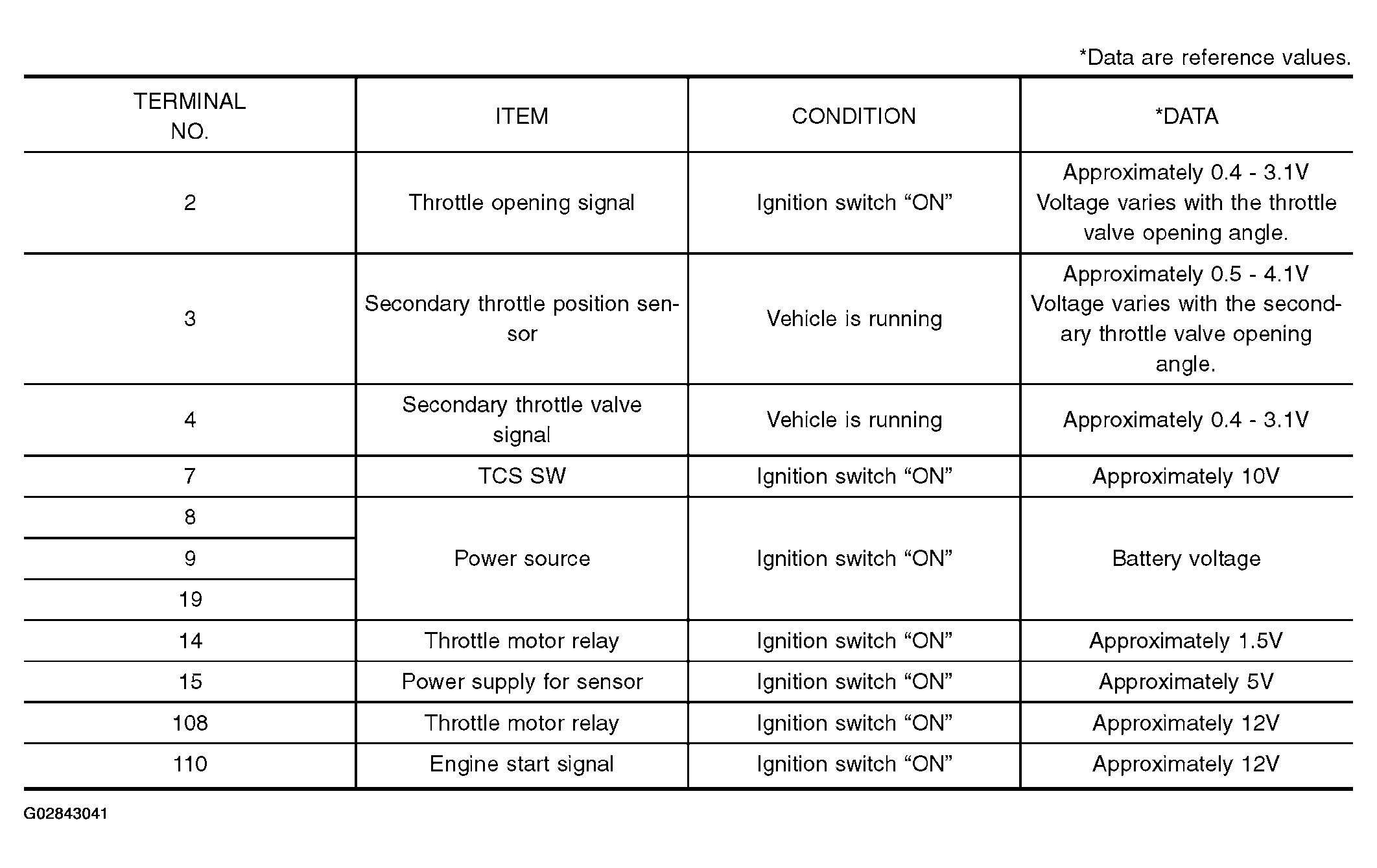

TAC module inspection table for digital multimeter
TAC module inspection table for digital multimeter
Fig 1: TAC Module Inspection Chart (Digital Multimeter)
