Throttle Motor
- Remove intake manifold upper collector.
- Disconnect connector. Manually push throttle valve to ensure that it moves properly from fully closed to fully open position.

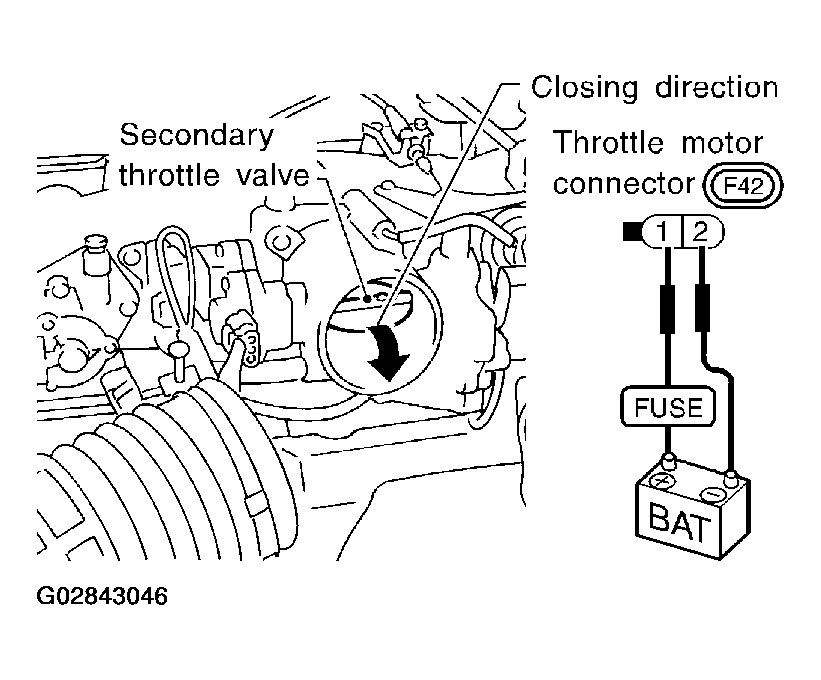

- With throttle valve set at fully open position, apply 12 volts (DC) across throttle motor terminals (1) and (2). Throttle valve must move in fully closed direction.
