Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

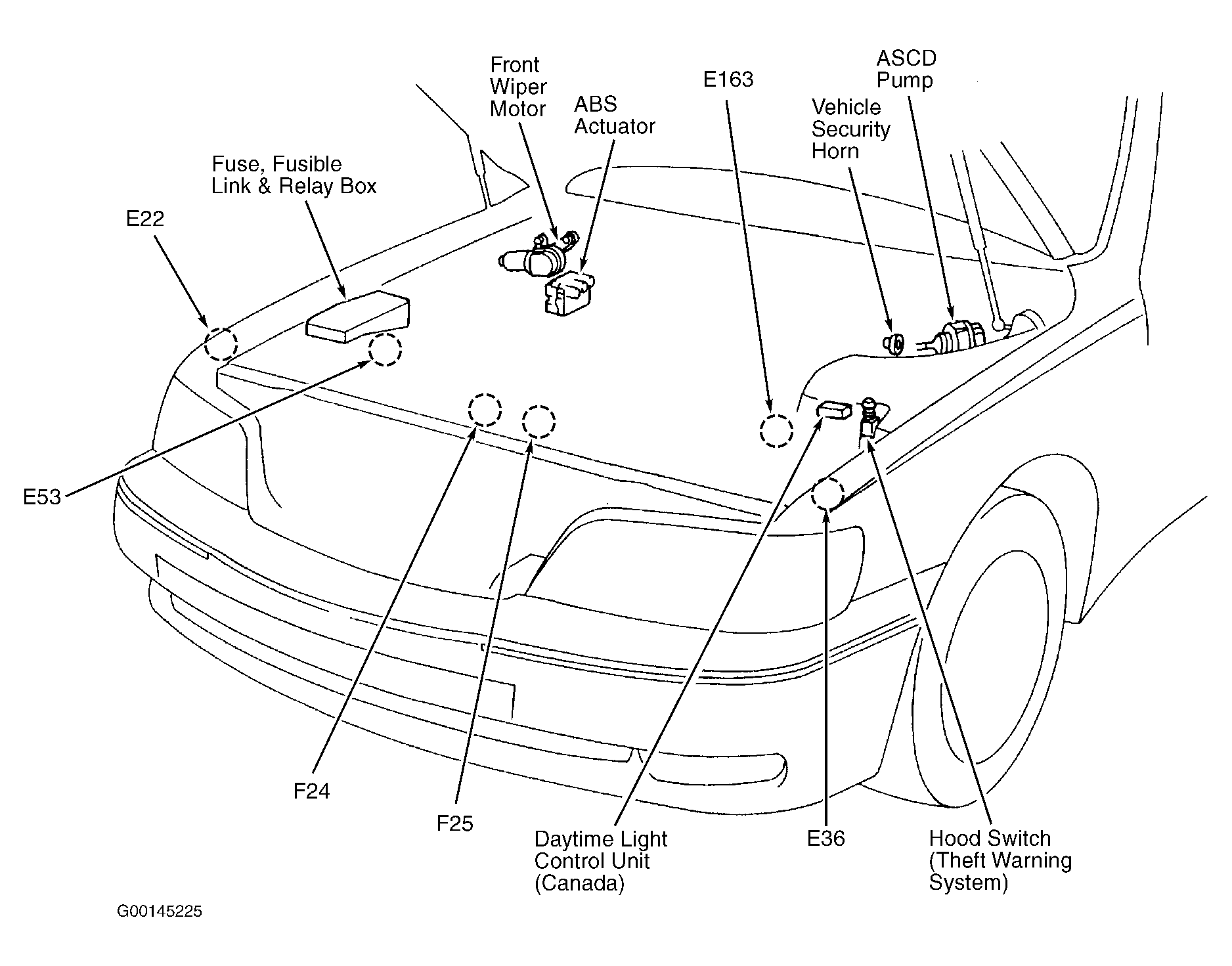

Fig 1: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Right Front Side Of Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

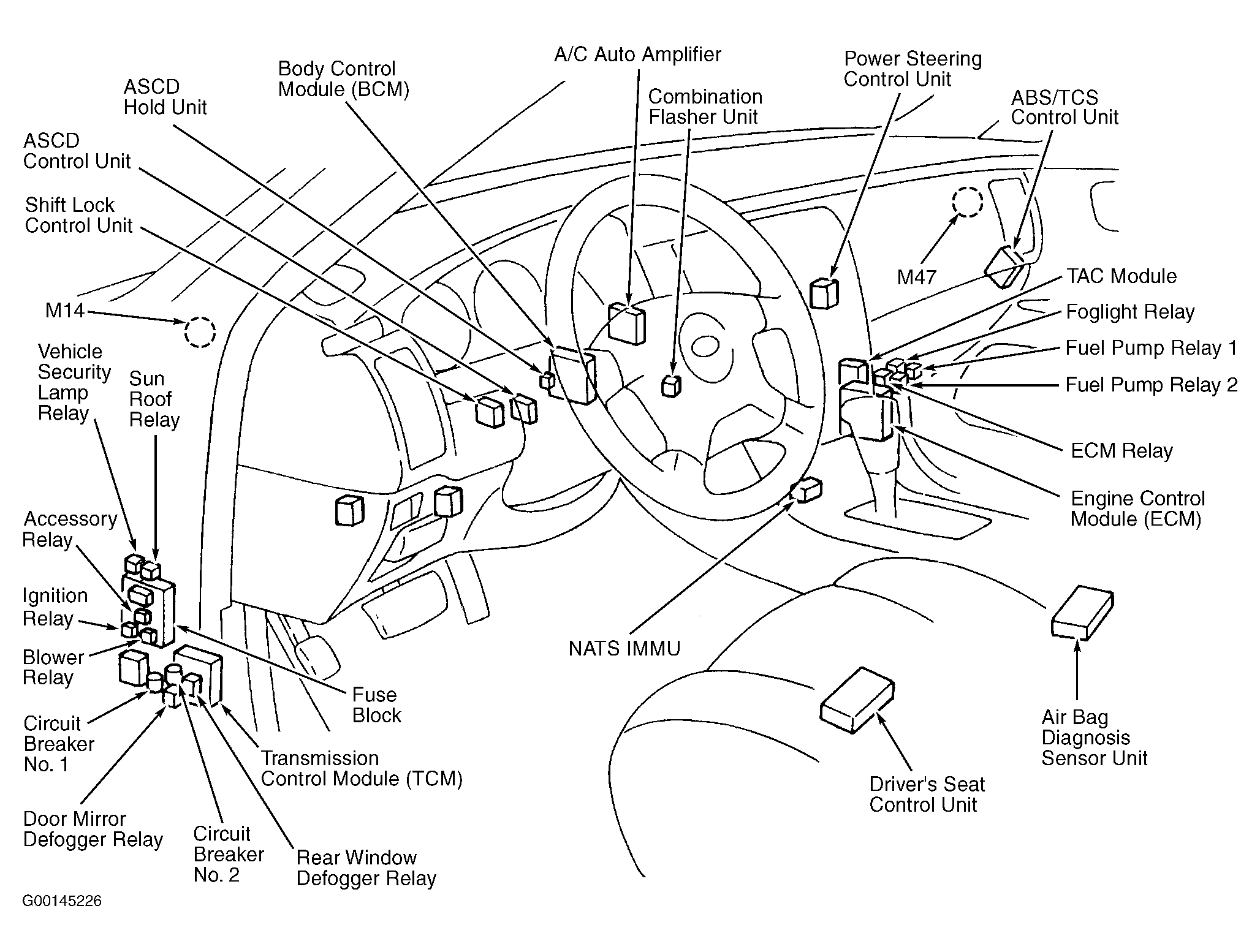

Fig 4: Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

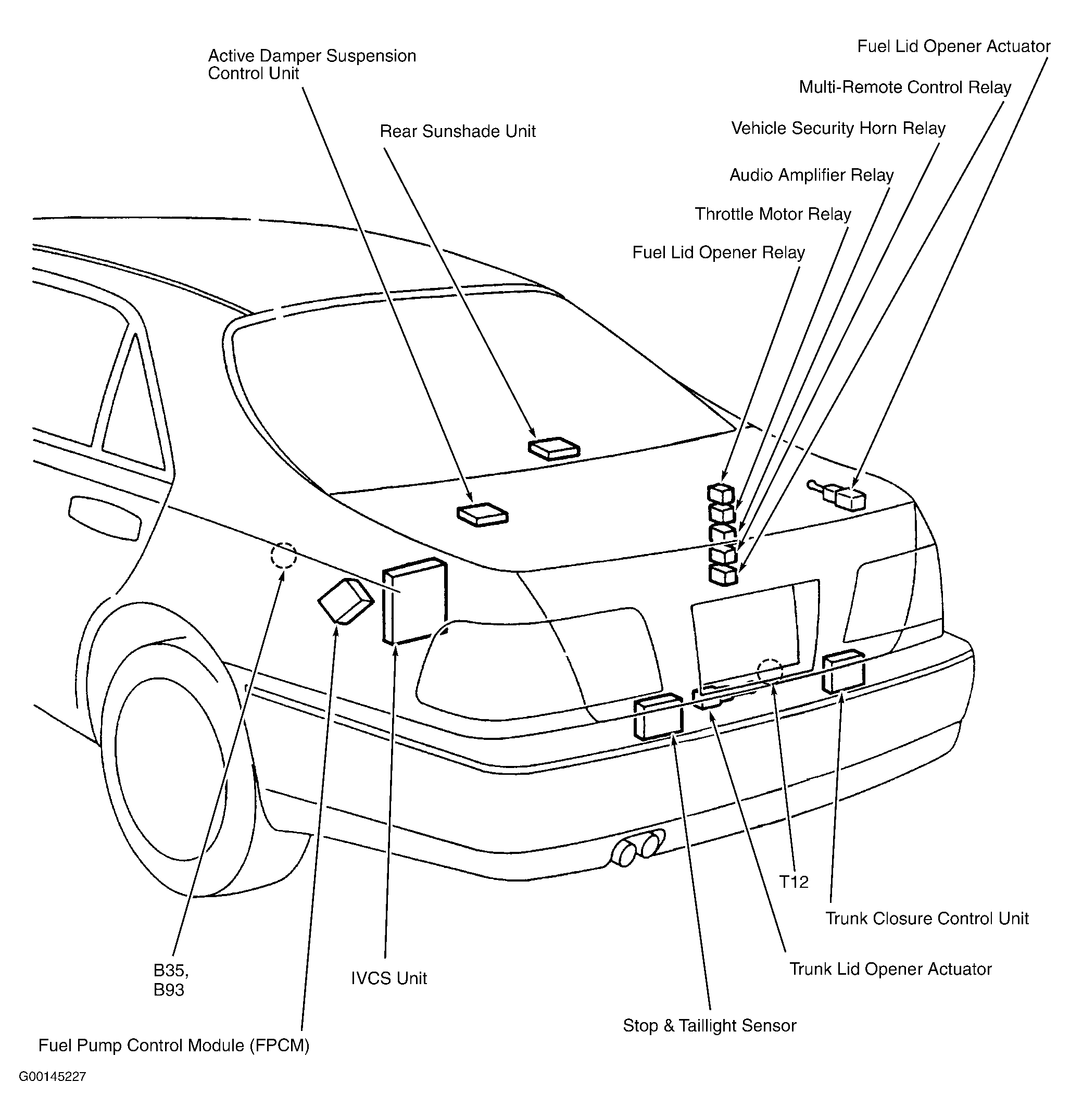

Fig 5: Rear Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.
