Home › Infiniti › 2001 › Q45 Base › Repair and Diagnosis › Electrical › Starter › Starting System › Removal and Installation › Removal

Removal and Installation: Removal

  1. Remove steering gear and linkage assembly. Refer to POWER STEERING GEAR AND LINKAGE .
  2. Remove harness connector.
  3. Remove starter by moving it in the direction of the arrow.

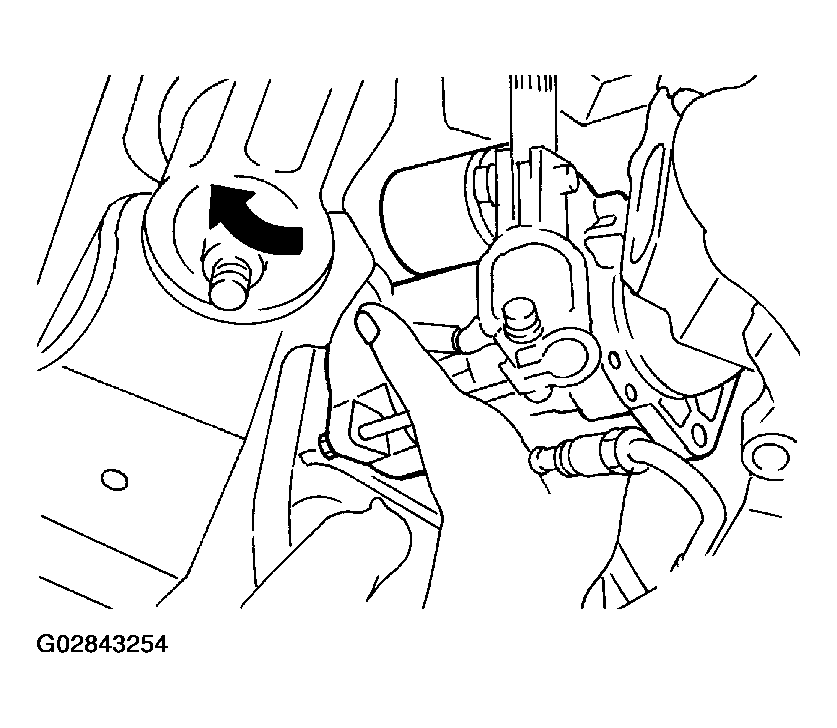

    Fig 1: Removing Starter
    G02843254
