Wiring Diagram - STARTING SYSTEM

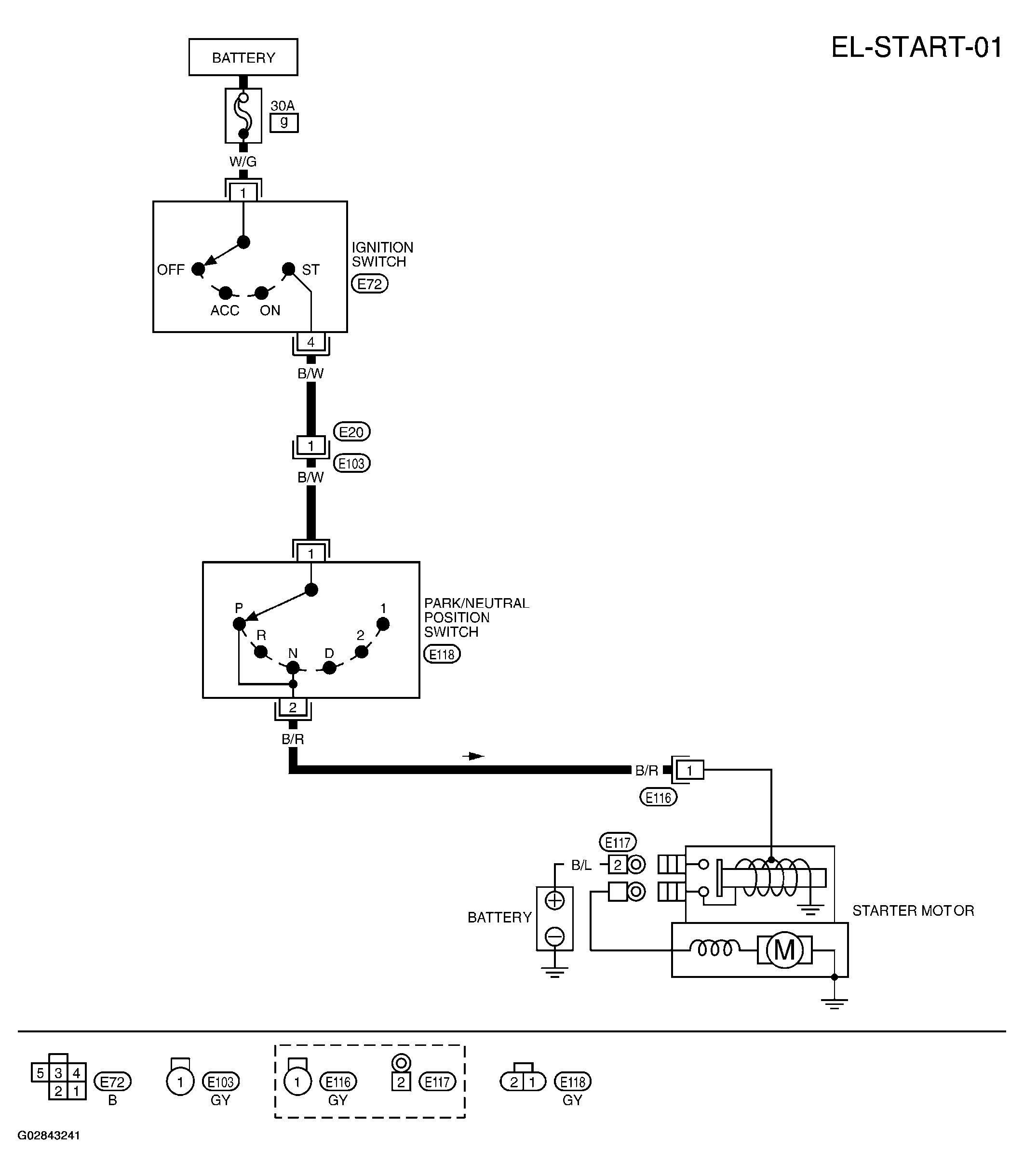

Fig 1: Wiring Diagram - Starting System

G02843241

NOTE: For complete Wiring Diagram information see STARTING/CHARGING .
