Symptom Chart

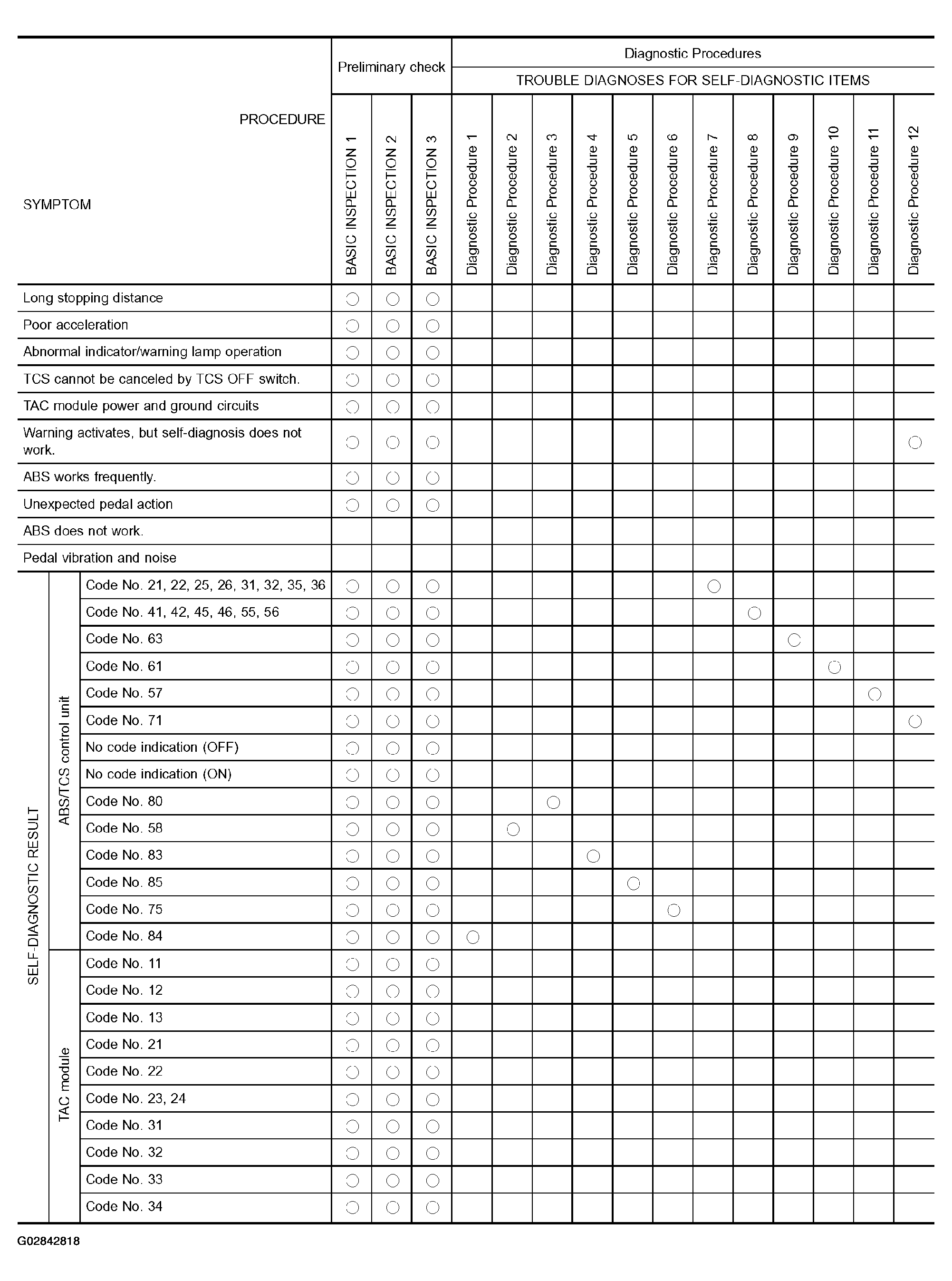

Fig 1: Symptom Chart (1 Of 3)

G02842818

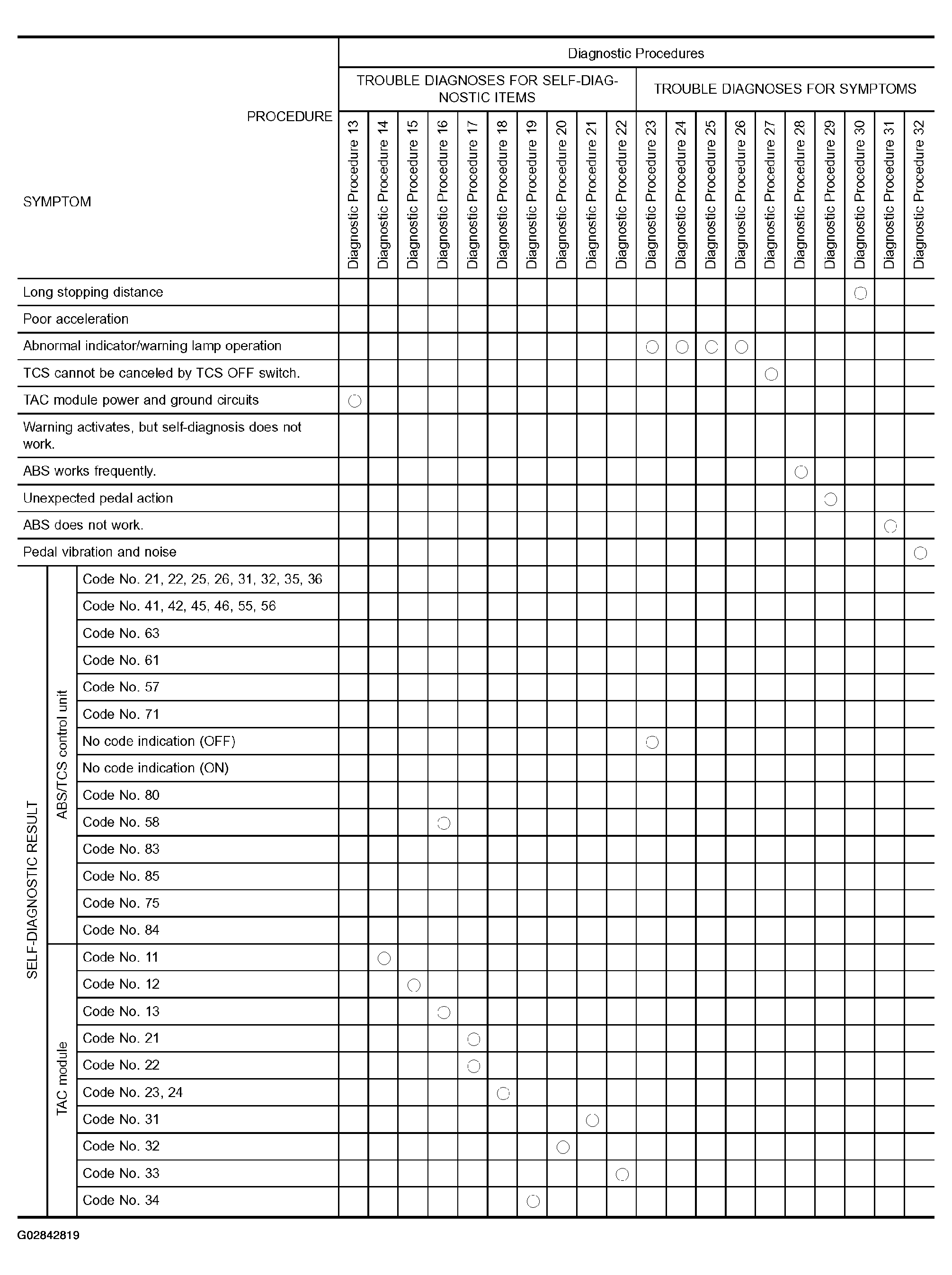

Fig 2: Symptom Chart (2 Of 3)

G02842819

Fig 3: Symptom Chart (3 Of 3)

G02842820
