Component Locations

COMPONENT LOCATIONS

Component	Location
Multi-Remote Control Relay	Left Side Of Engine Compartment, In Relay Box No. 1
Smart Entrance Control Unit (SECU)	To Right Of Instrument Panel Fuse Box

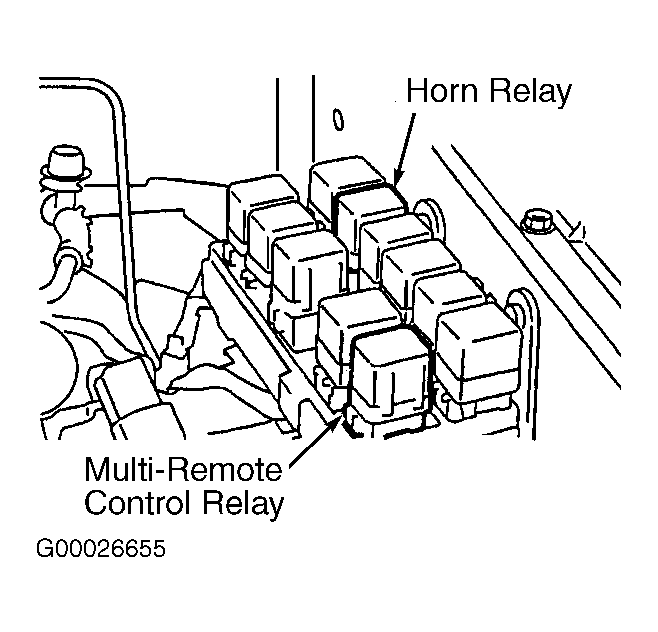

Fig 1: Locating Multi-Remote Control Relay

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Smart Entrance Control Unit (SECU)

Courtesy of NISSAN MOTOR CO., U.S.A.
