Key Switch (Insert) Check

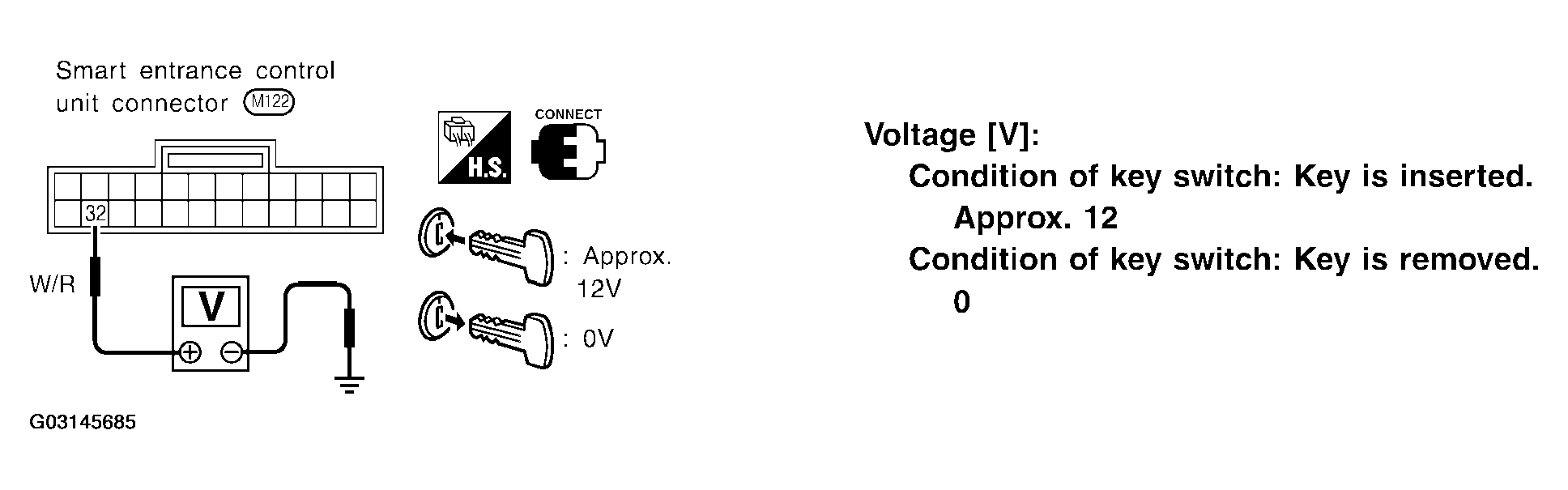

Check voltage between smart entrance control unit terminal 32 and ground.

Fig 1: Checking Door Switch

Refer to wiring diagram in Wiring Diagram - MULTI-  .

OK or NG

1. OK Key switch is OK.
2. NG GO TO 2.

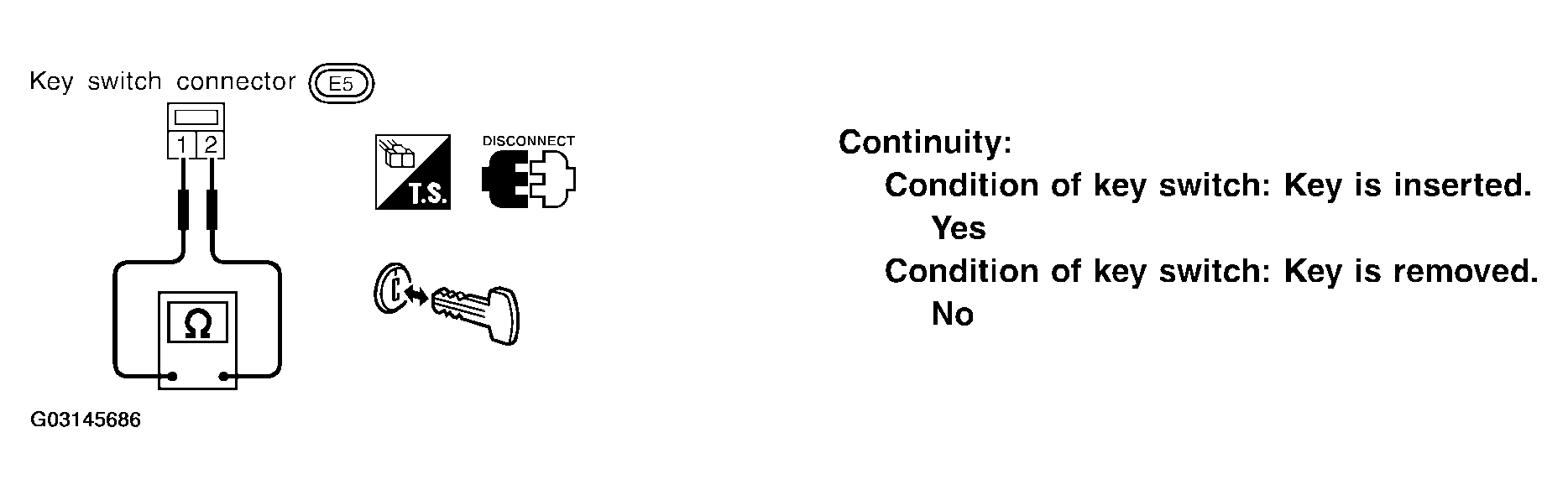

Check continuity between terminals 1 and 2.

Fig 2: Checking Key Switch (Insert)

OK or NG

1. OK Check the following.

   7.5A fuse [No. 24, located in fuse block (J/B)]

   Harness for open or short between key switch and fuse

   Harness for open or short between smart entrance control unit and key switch

2. NG Replace key switch.
