Band Servo Piston Assembly: Components

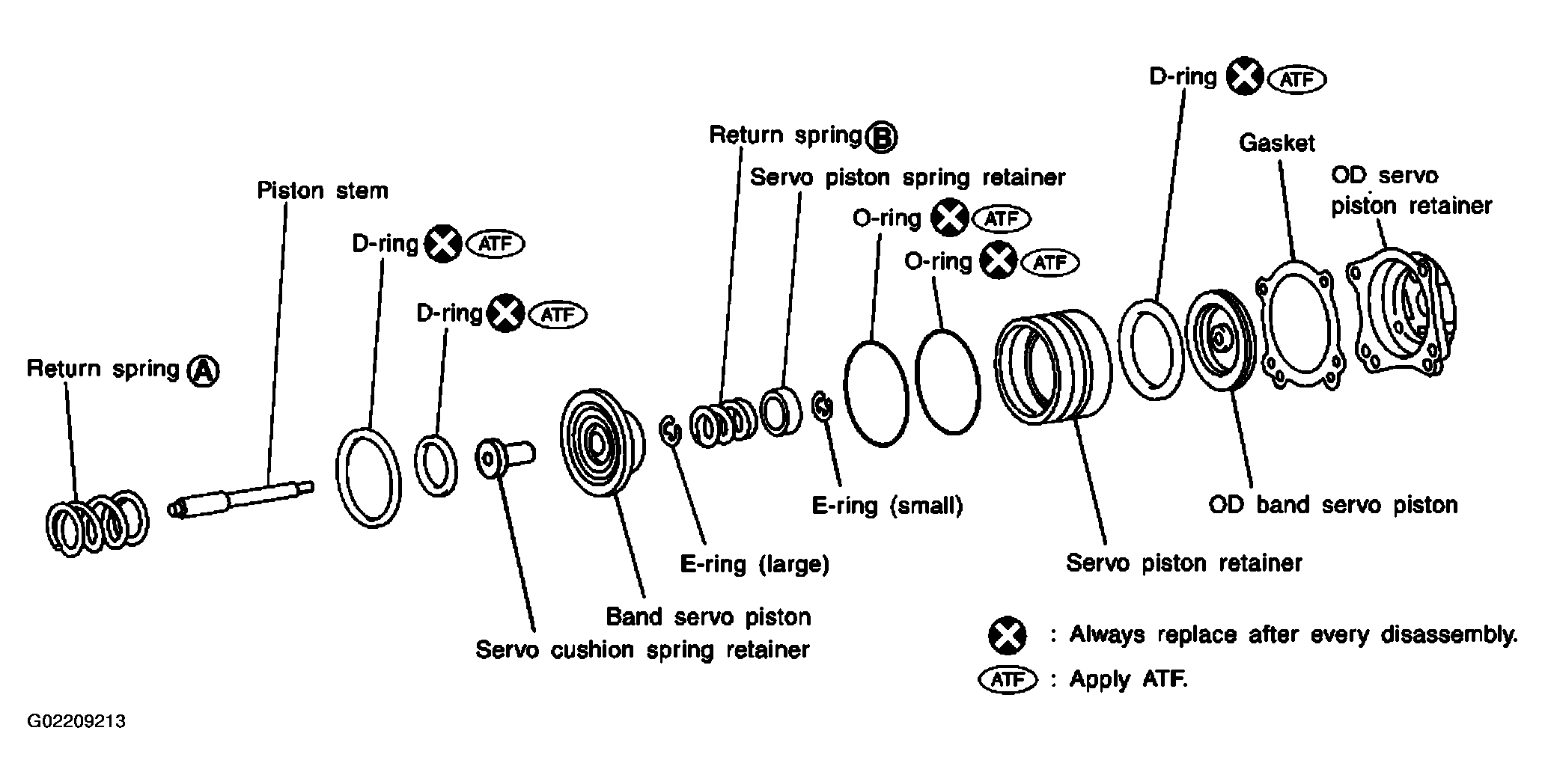

Fig 1: Identifying Band Servo Piston Assembly Components
G02209213Courtesy of NISSAN MOTOR CO., U.S.A.
