Final Drive: Components

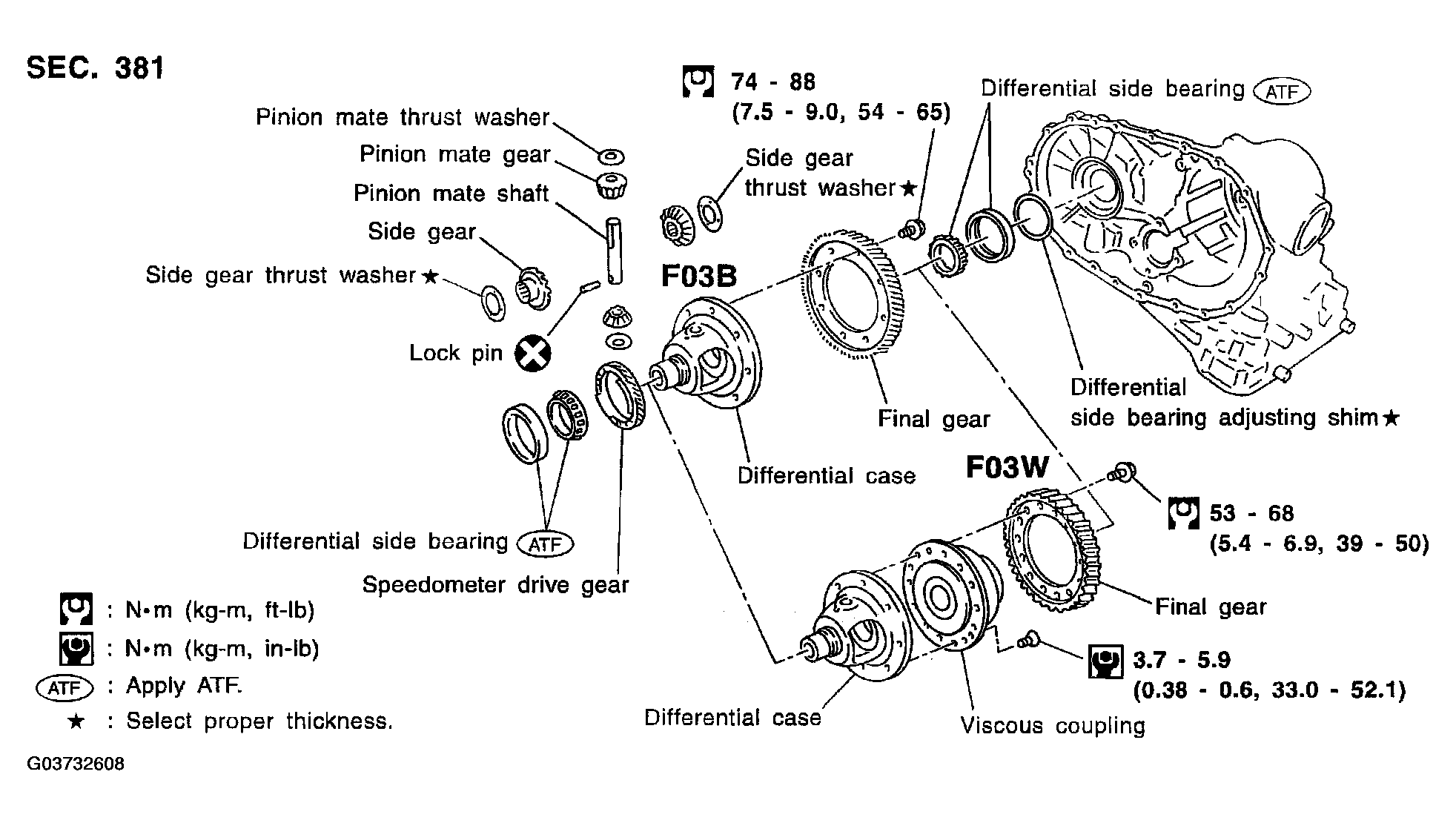

Fig 1: Exploded View Of Final Drive
G03732608Courtesy of NISSAN MOTOR CO., U.S.A.
