Multi-Remote Control System: Schematic

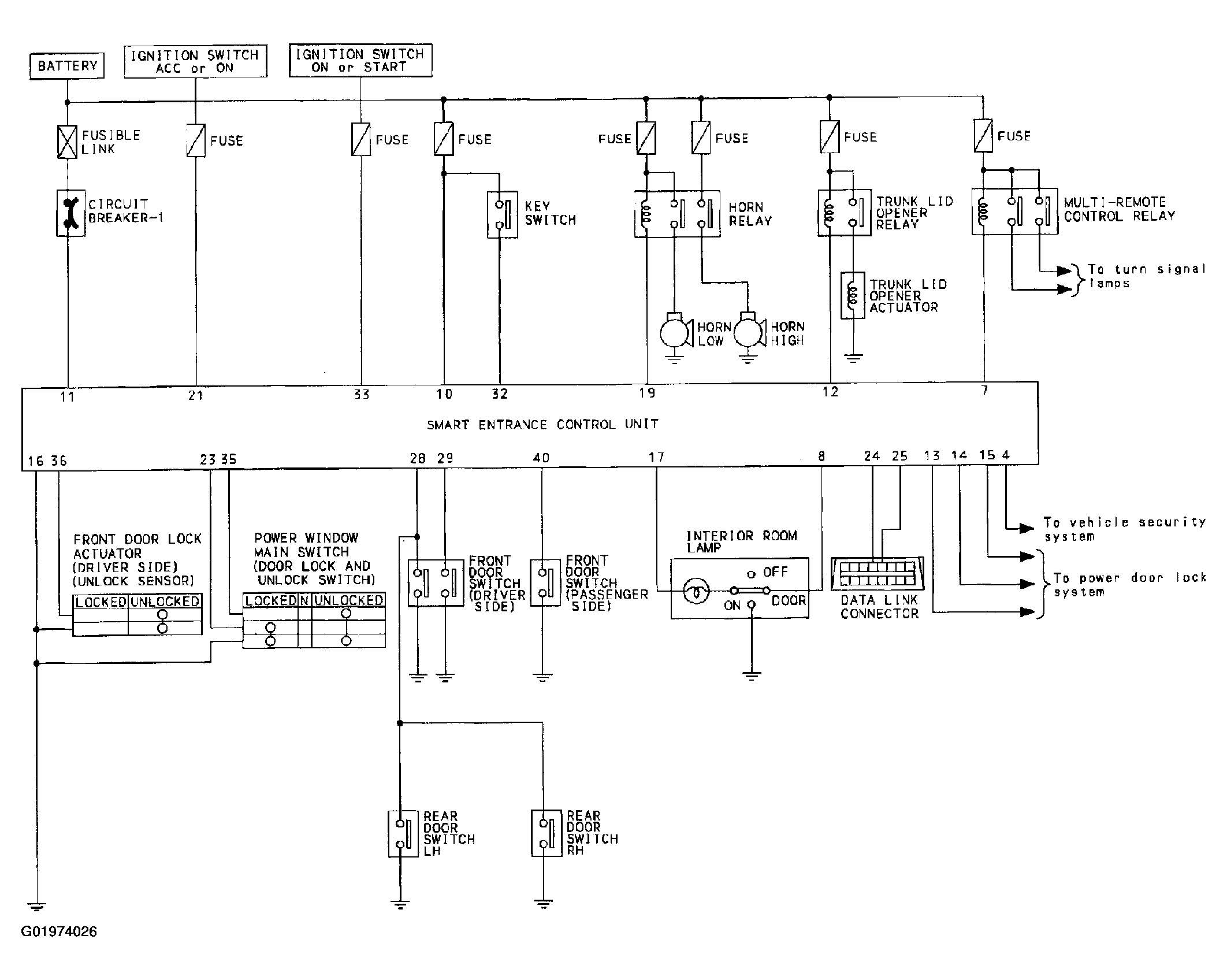

Fig 1: Schematic Diagram
G01974026Courtesy of NISSAN MOTOR CO., U.S.A.
