Removal & Installation

NOTE: Manufacturer does not supply removal and installation procedures for window regulators.

Use illustrations to assist in removing and installing window regulators and door trim panels. See Fig 1 -Fig 2 .

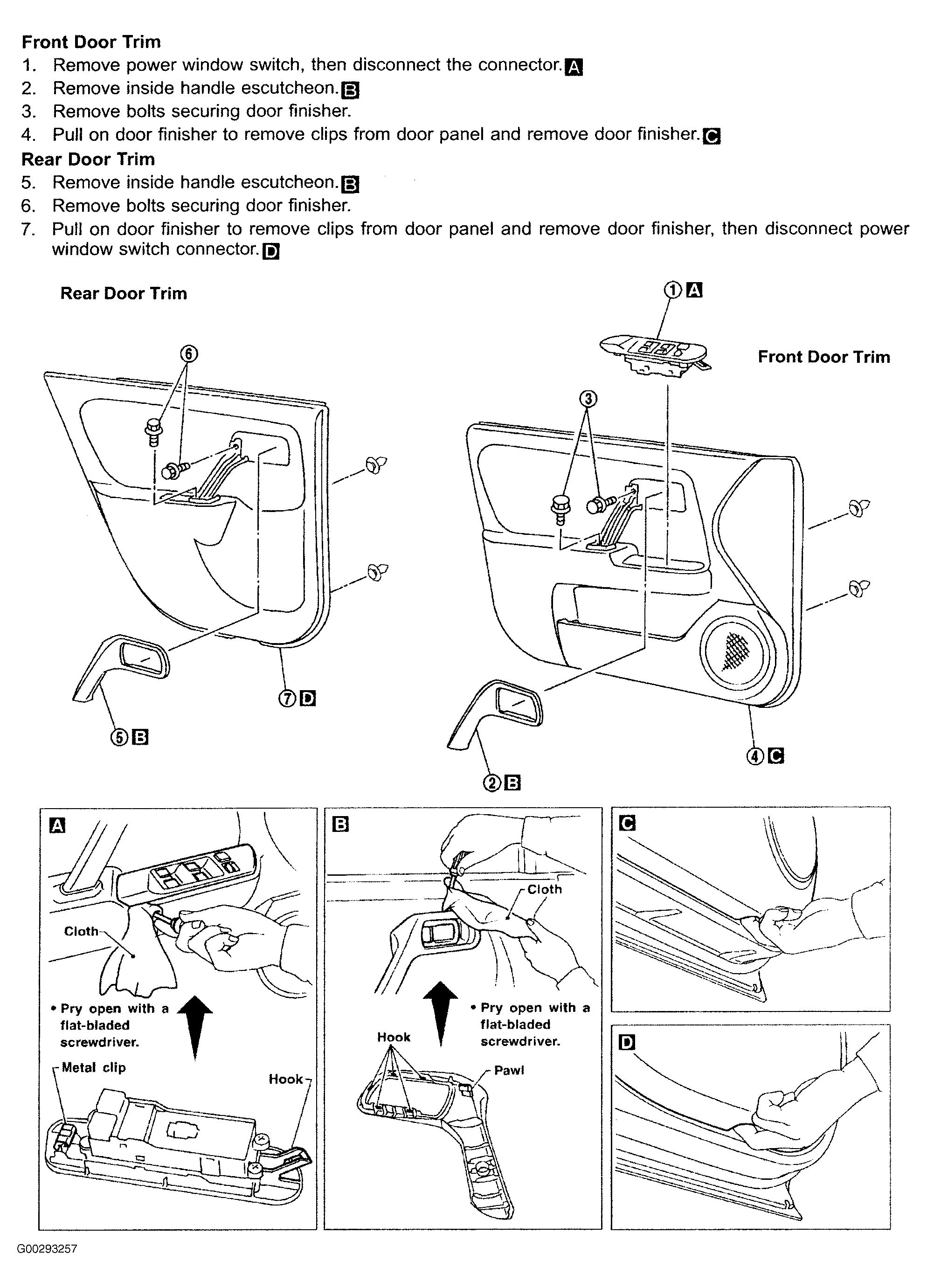

Fig 1: Removing & Installing Front & Rear Door Trim Panels

Courtesy of NISSAN MOTOR CO., U.S.A.

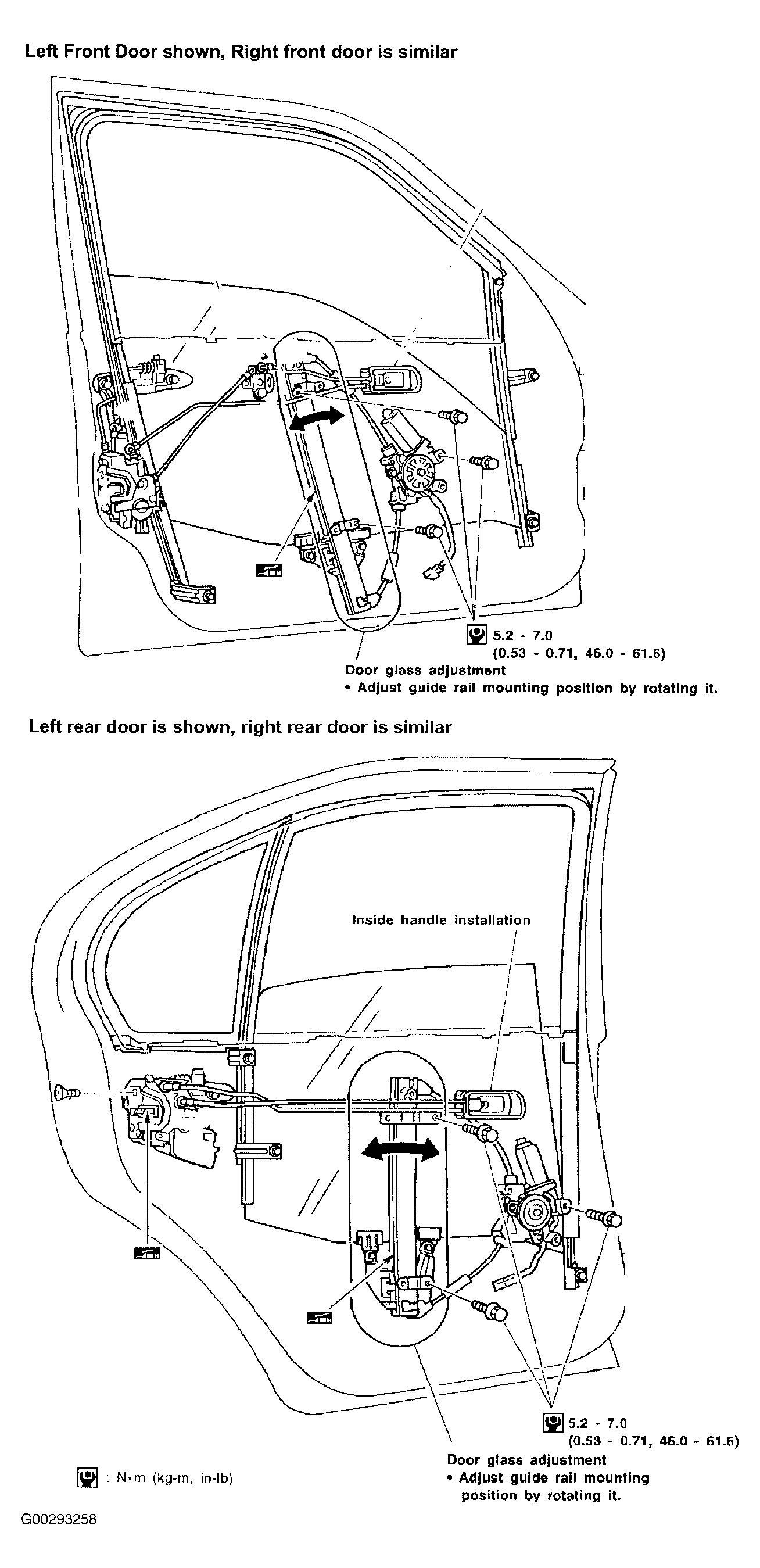

Fig 2: Removing & Installing Front & Rear Window Regulators

Courtesy of NISSAN MOTOR CO., U.S.A.
