Abs Actuator And Electric Unit: Notes

The ABS actuator and electric unit contains:

• An electric motor and pump
• Two relays
• Eight solenoid valves, each inlet and outlet for
  • LH front
  • RH front
  • LH rear
  • RH rear
• ABS control unit

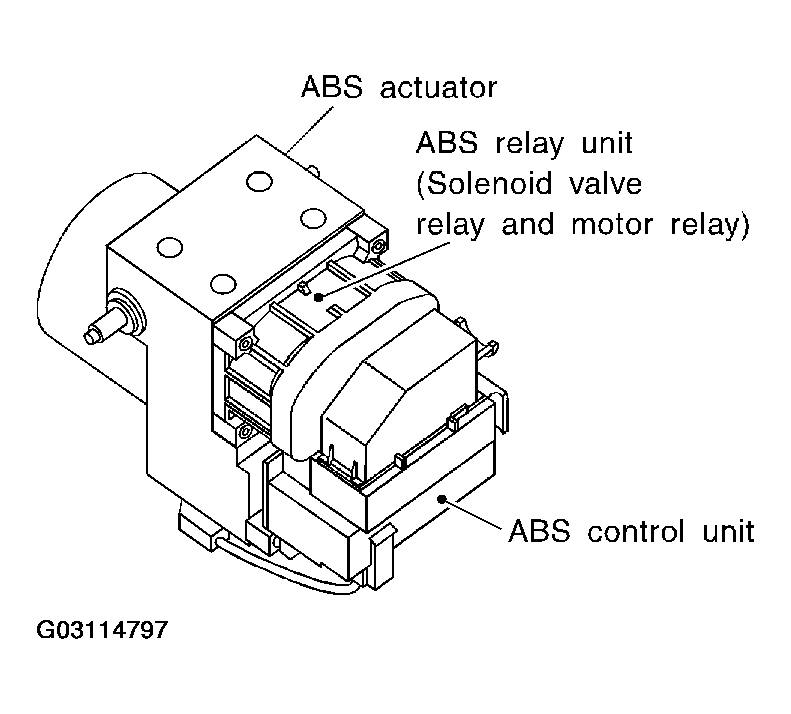

  Fig 1: Identifying ABS Actuator & Electric Unit

  Courtesy of NISSAN MOTOR CO., U.S.A.

This components controls the hydraulic circuit and increases, holds or decreases hydraulic pressure to all or individual wheels. The ABS actuator and electric unit are not disassemble.
