Testing Power Transistor

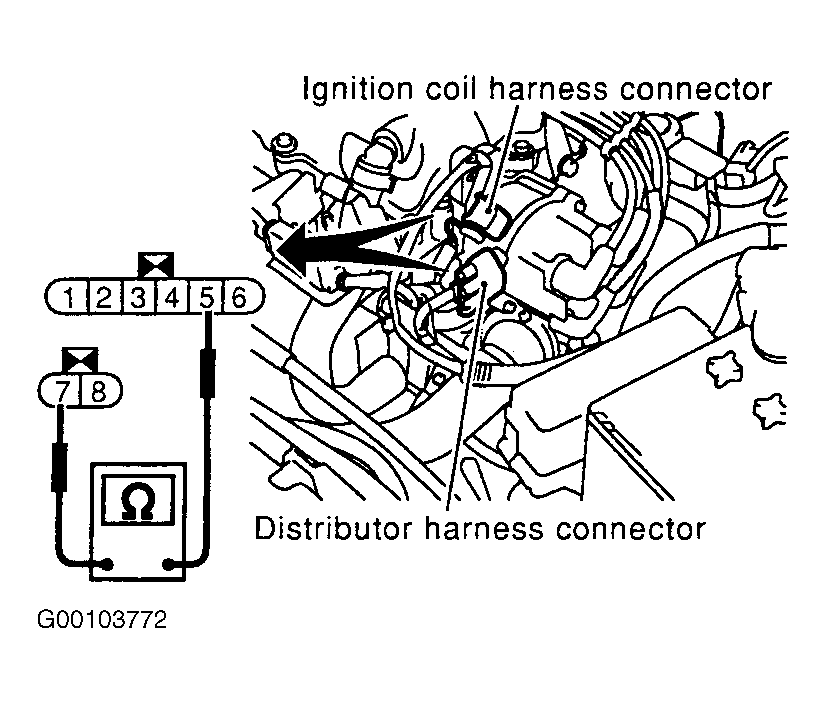

Power transistor is located in distributor. Disconnect distributor 2-pin and 6-pin harness connectors. Measure resistance between distributor 2-pin connector terminal No. 7 and distributor 6-pin connector terminal No. 5. See Fig 1. If resistance is zero ohms, replace distributor assembly. If resistance is not zero ohms, power transistor is okay.
