Removal And Installation: Installation

Check drive plate runout.
CAUTION: Do not allow any magnetic materials to contact the ring gear teeth.

Fig 1: Measuring Flywheel Runout
Courtesy of NISSAN MOTOR CO., U.S.A.
- If this runout is out of allowance, replace drive plate with ring gear.
When connecting torque converter to transaxle, measure distance "A" to be certain that they are correctly assembled.
1. Distance "A":
  1. 15.9 mm (0.626 in) or more

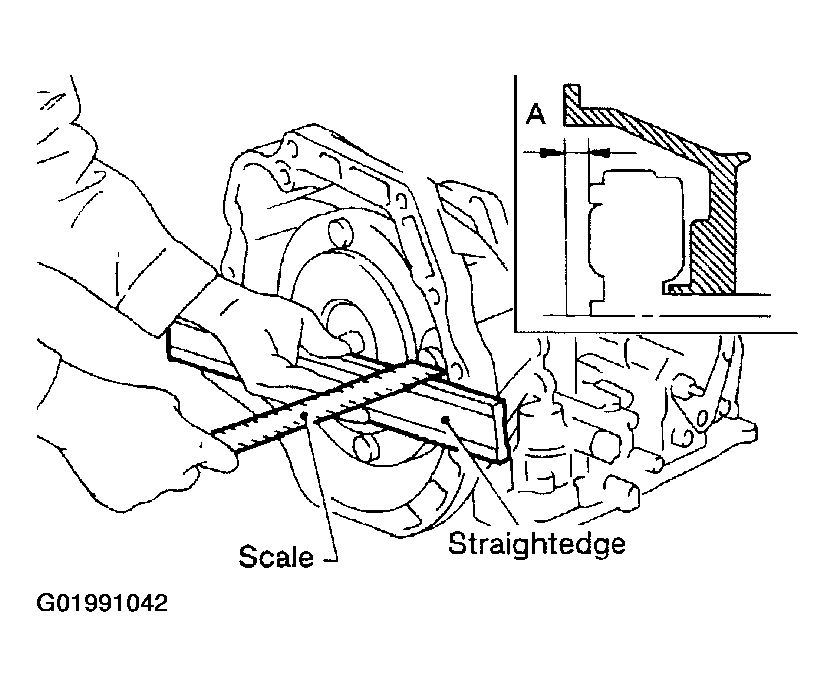

Fig 2: Measuring Distance "A"
Courtesy of NISSAN MOTOR CO., U.S.A.
Install torque converter to drive plate.
- With converter installed, rotate crankshaft several turns to check that transaxle rotates freely without binding.

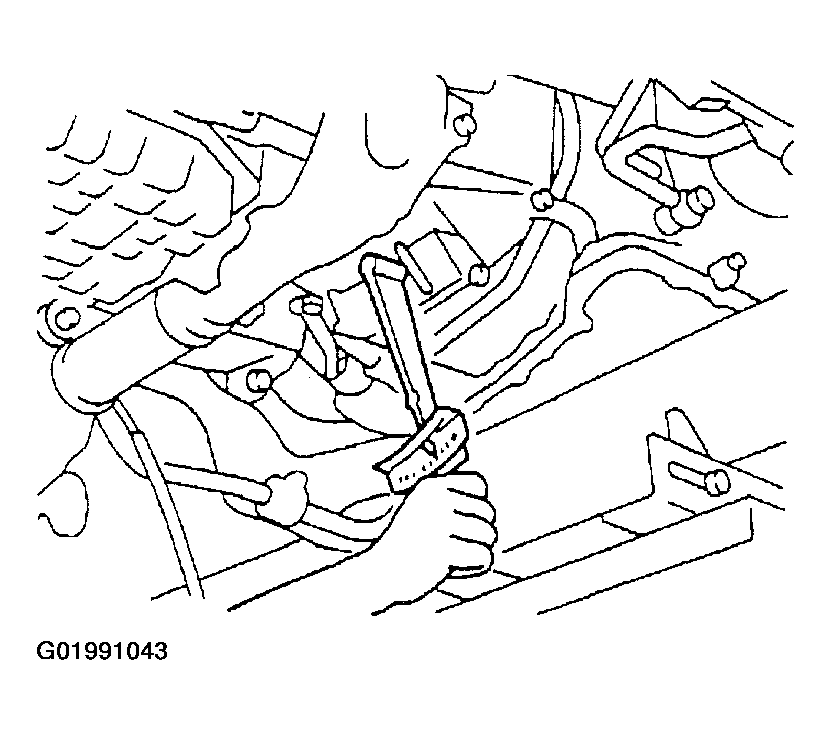

Fig 3: Tightening Bolts To Proper Torque
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten belts fixing transaxle.

Fig 4: Identifying Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

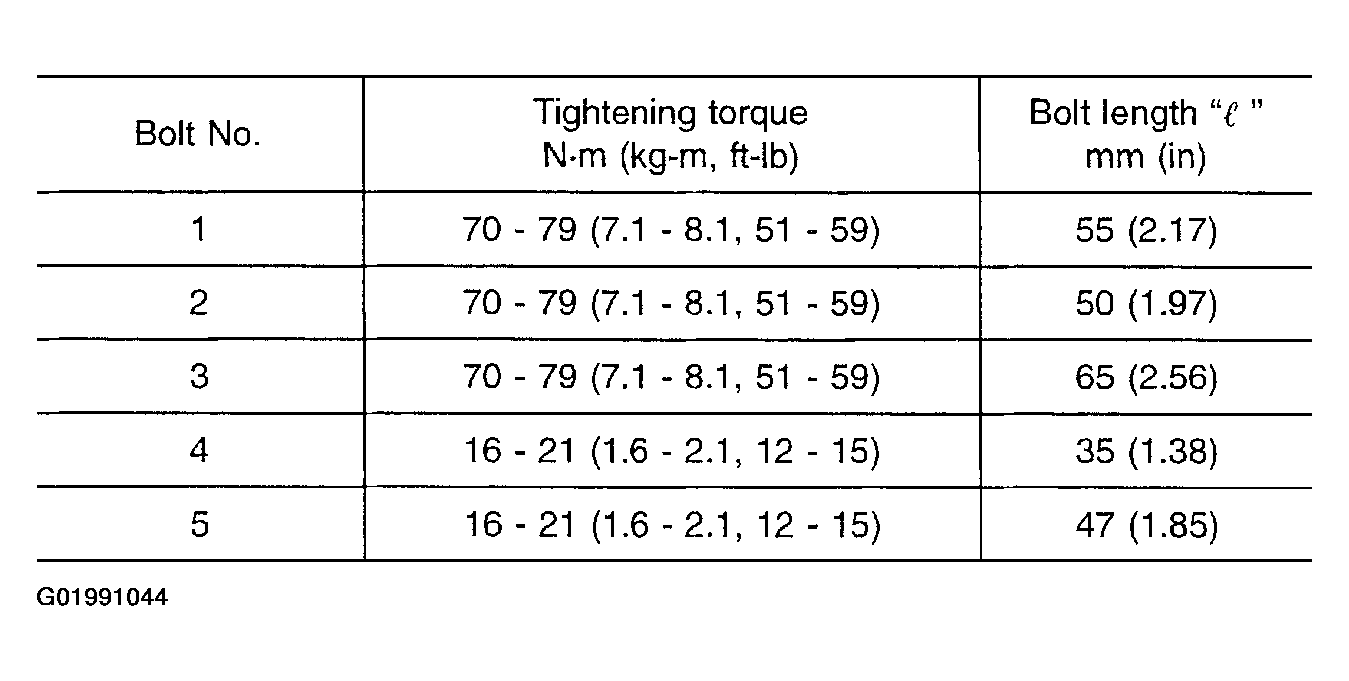

Fig 5: Bolt Torque Values
Courtesy of NISSAN MOTOR CO., U.S.A.
Reinstall any part removed.
Adjust control cable.
Check continuity of PNP switch. Refer to PARK/NEUTRAL POSITION SWITCH .
Refill transaxle with ATF and check fluid level.
Move selector lever through all positions to be sure that transaxle operates correctly. With parking brake applied, idle engine. Move selector lever through "N" to "D", to "2", to "1" and "R" positions. A slight shock should be felt through the hand gripping the selector each time the transaxle is shifted.
Perform road test.

Fig 6: Checking Transmission Oil Level
Courtesy of NISSAN MOTOR CO., U.S.A.
