FixVault
Home
›
Infiniti
›
2002
›
G20 Standard, RS5F70A
›
Repair and Diagnosis
›
Transmission
›
Manual Trans
›
Manual Transaxle
›
Overhaul
›
Shift Control Components
Shift Control Components

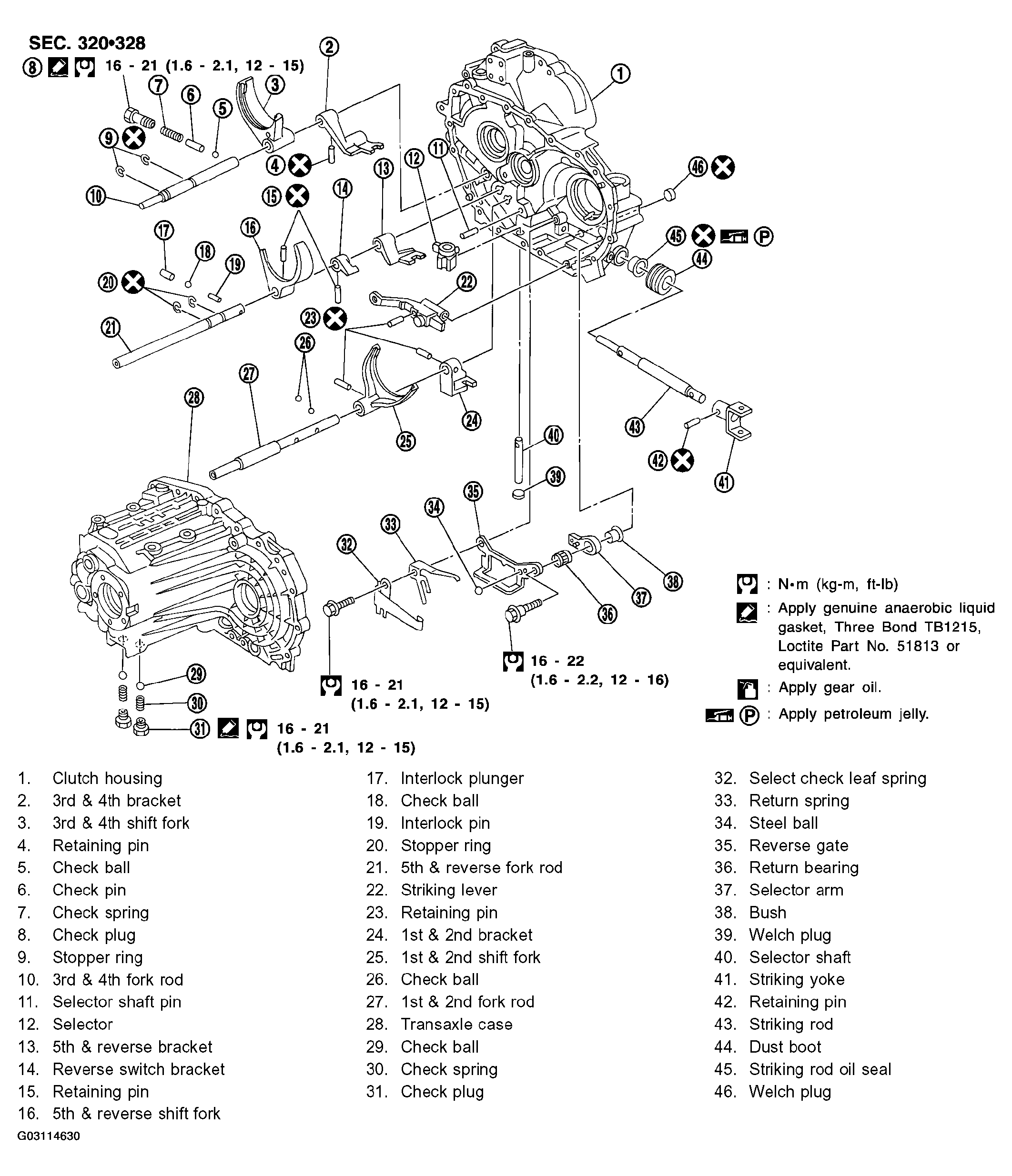

Fig 1: Exploded View Of Shift Control Components & Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
