FixVault
Home
›
Infiniti
›
2002
›
G20 Standard, RS5F70A
›
Repair and Diagnosis
›
Transmission
›
Manual Trans
›
Manual Transaxle
›
Service Data And Specifications (SDS)
›
General Specifications
›
Transaxle
General Specifications: Transaxle

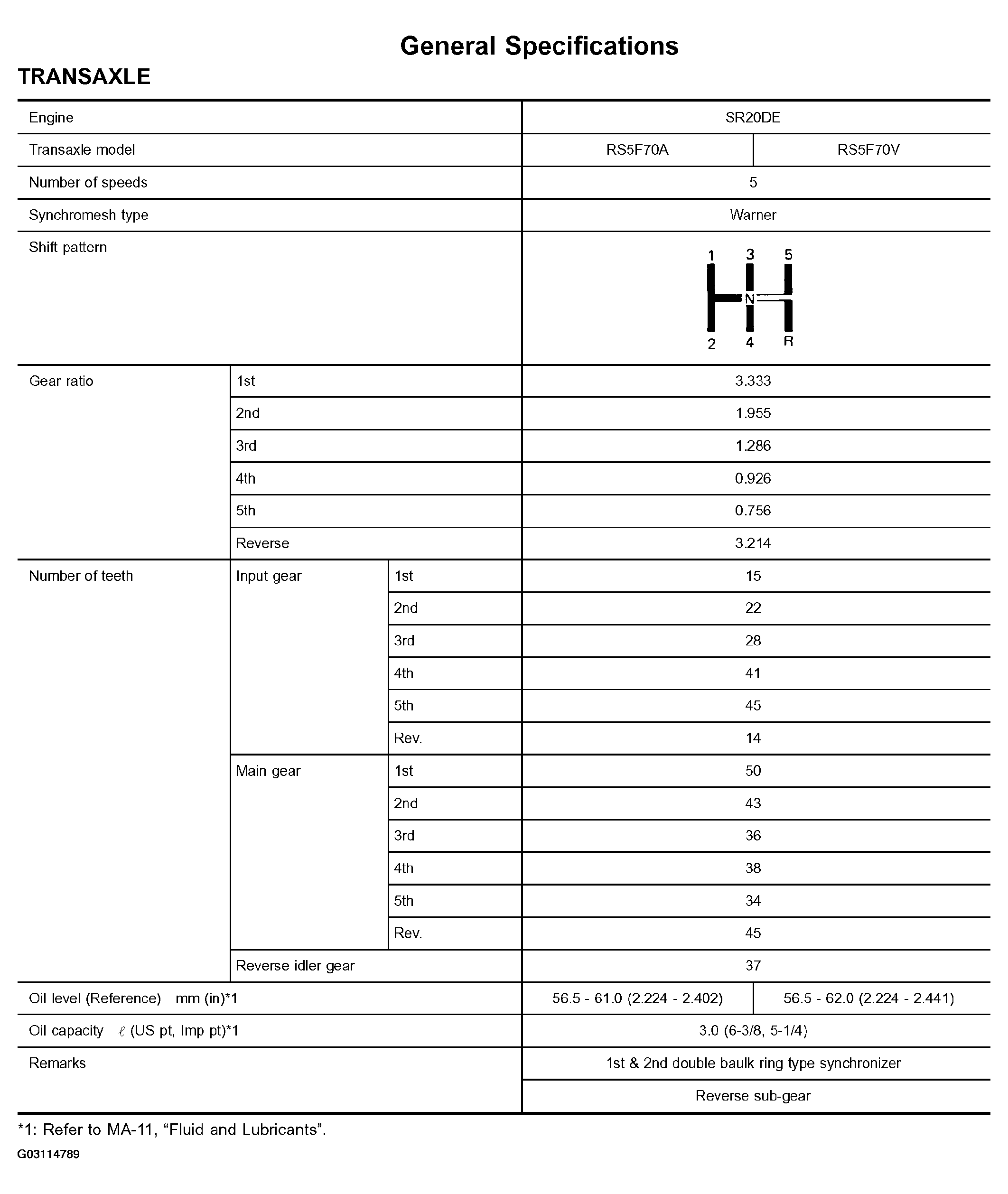

Fig 1: Transaxle Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
