Connector Identification

Fig 1: Identifying SMJ Connector M15 & E81 Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Control Harness Routing (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Main Harness Routing (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying ECM Harness Connector Terminals (As Viewed From Harness Side Of Connector)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine Compartment Harness Routing (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Main Harness Routing (I35)

Courtesy of NISSAN MOTOR CO., U.S.A.

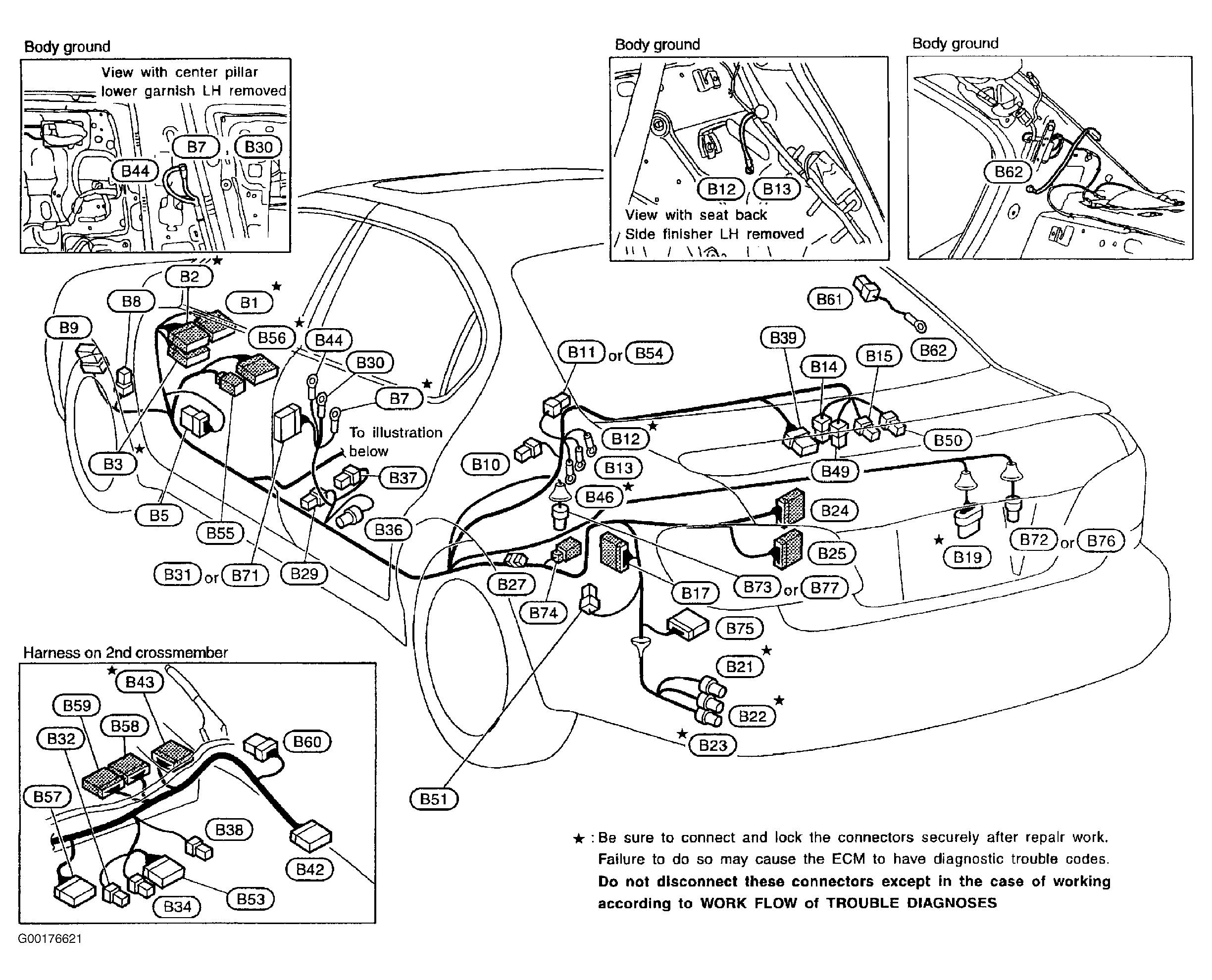

Fig 7: Identifying Body Harness Routing (I35)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Engine Control Harness Routing (I35)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Engine Compartment Harness Routing (I35)

Courtesy of NISSAN MOTOR CO., U.S.A.
