Component Locations

COMPONENT LOCATIONS

Component

Location

ASCD Actuator

Center Rear Of Engine Compartment

ASCD Brake Switch ⁽¹⁾

On Bracket, Above Brake Pedal

ASCD Clutch Switch (M/T)

On Bracket, Above Clutch Pedal

ASCD Control Unit ⁽²⁾

Behind Center Of Instrument Panel, To Left Of Radio

ASCD Pump ⁽³⁾

Left Side Of Engine Compartment

ASCD Steering Wheel Switch

Mounted On Steering Wheel

CRUISE Indicator Light

Left Side Of Instrument Cluster

Brakelight Switch ⁽¹⁾

On Bracket, Above Brake Pedal

Park/Neutral Position Relay ⁽⁴⁾

In Underhood Relay Block

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

⁽³⁾	See Fig 3 .

⁽⁴⁾	See Fig 4 .

Fig 1: Identifying ASCD Brake Switch Location

Courtesy of NISSAN MOTOR CO., U.S.A.

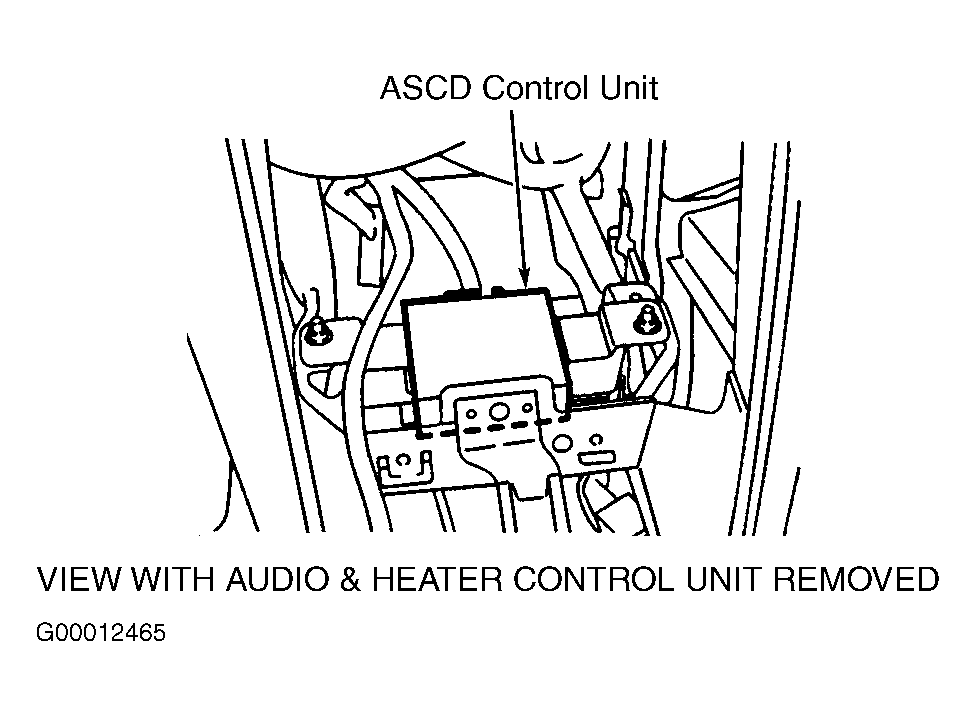

Fig 2: Identifying ASCD Control Unit Location

Courtesy of NISSAN MOTOR CO., U.S.A.

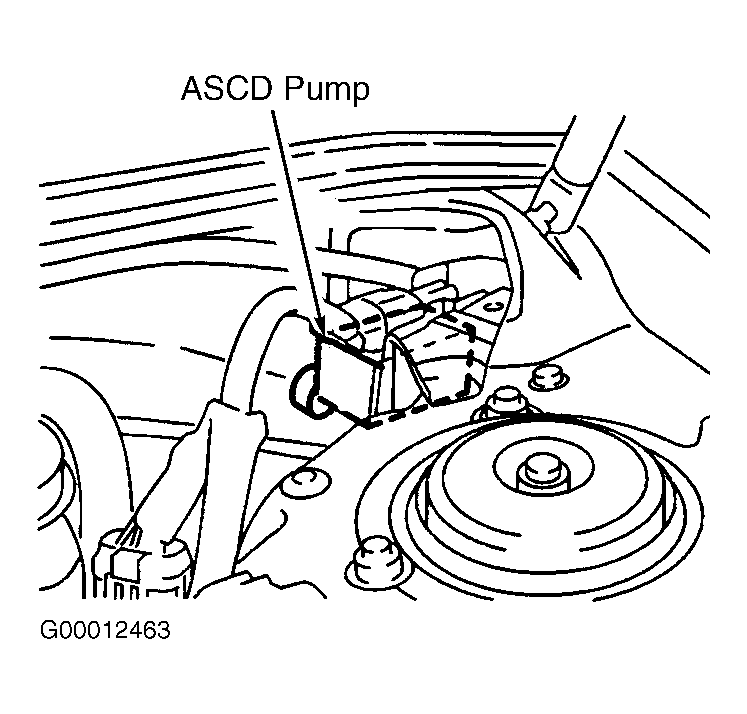

Fig 3: Identifying ASCD Pump Location

Courtesy of NISSAN MOTOR CO., U.S.A.

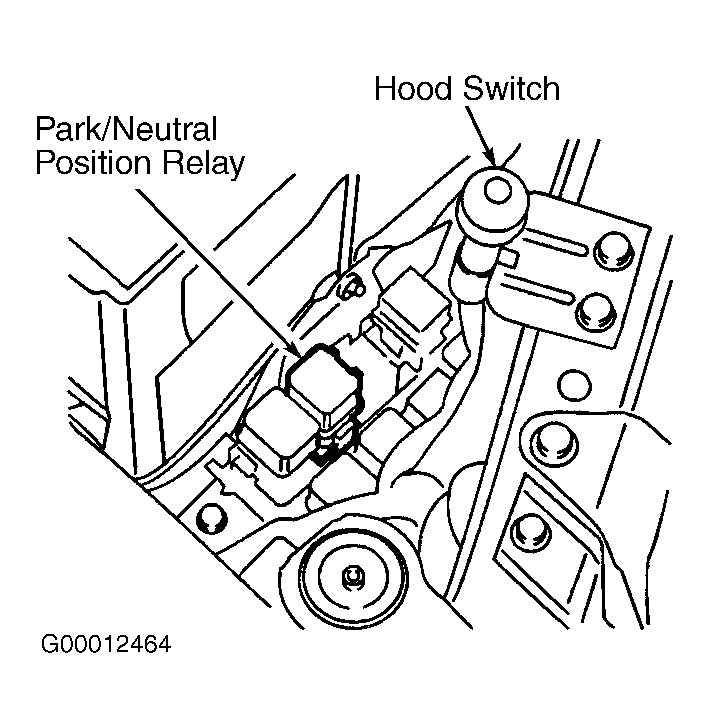

Fig 4: Identifying Park/Neutral Position Relay Location

Courtesy of NISSAN MOTOR CO., U.S.A.
