Door Lock/Unlock Switch
NOTE:
Switch is part of power window switch assembly.
- Ensure ignition is off. Disconnect SECU White 24-pin harness connector. Check continuity between ground and terminals No. 4 and 5. See DOOR LOCK/UNLOCK SWITCH CONTINUITY CHECK
table. If continuity is as specified, door lock/unlock switch is okay. If continuity is not as specified, go to next step.DOOR LOCK/UNLOCK SWITCH CONTINUITY CHECK
Switch Position (Terminal No.) (1) Continuity Lock (5) Yes Neutral/Unlock (5) No Unlock (4) Yes Neutral/Lock (4) No (1) See Figure for terminal identification. - Disconnect power window switch harness connectors. Check continuity between specified terminals. See POWER WINDOW SWITCH CONTINUITY CHECK
table. If continuity is as specified, switch is okay. Inspect ground circuit and circuits between switch and SECU for open or short. Repair as needed. If continuity is not as specified, replace power window switch.POWER WINDOW SWITCH CONTINUITY CHECK

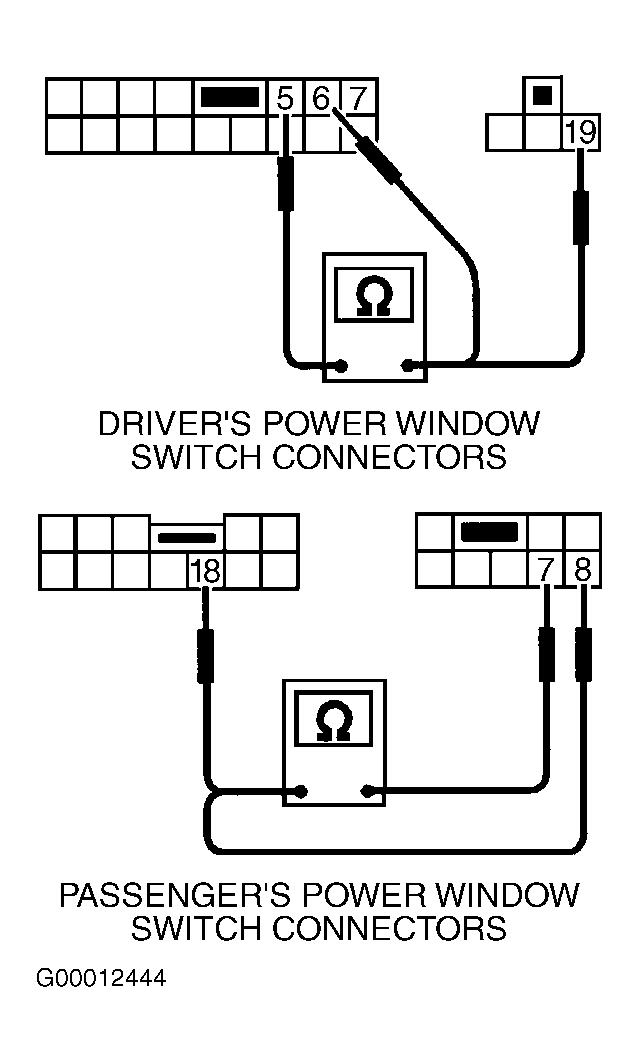

Terminal No. (1) Switch Position Continuity Driver's Power Window Switch 5 & 6 Lock Yes 5 & 19 Unlock Yes Passenger's Power Window Switch 7 & 8 Lock Yes 7 & 18 Unlock Yes (1) See Fig 1 for terminal identification.
