Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Data Link Connector (DLC) | Left Side Of Instrument Panel, Next To Parking Brake Release Handle |

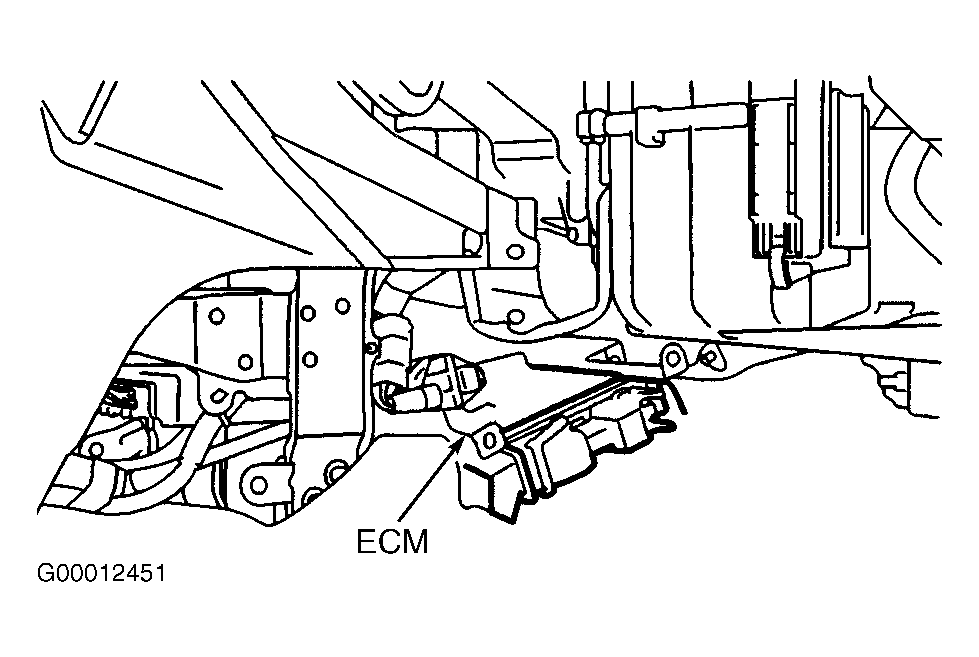

| Engine Control Module (ECM) | Under Center Portion Of Instrument Panel |

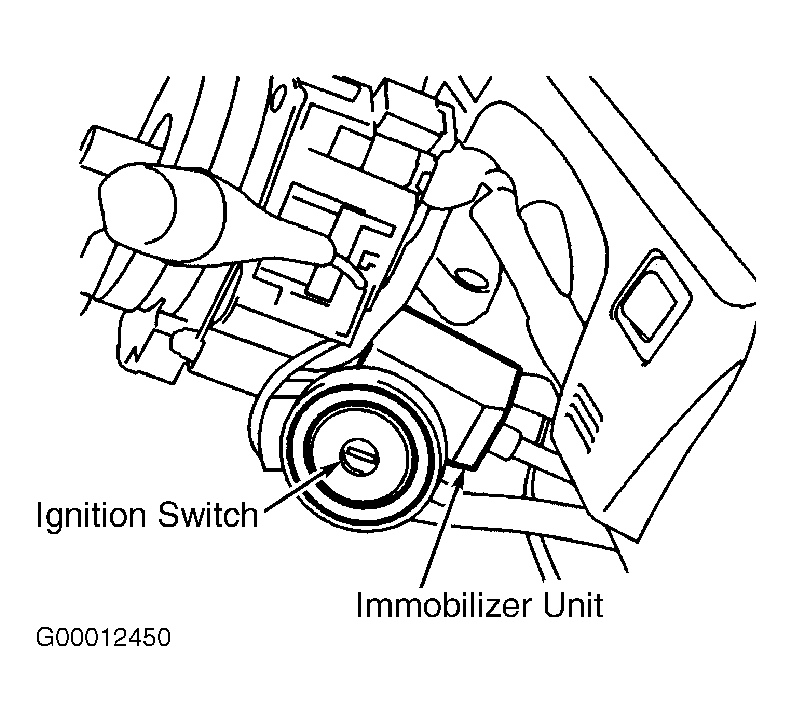

| Immobilizer Unit (IMMU) | Mounted To Ignition Switch |
| Junction Block Fuse Block | Under Left Side Of Instrument Panel, Above Left Kick Panel |
| Smart Entrance Control Unit (SECU) | Under Left Side Of Instrument Panel, Left Side of Steering Column |
